Help Center1.3MP/ 2MP/ 3MP / 5MP HD IP Wireless WiFi Camera
Related Products
1.3MP/ 2MP/ 3MP / 5MP HD IP Wireless WiFi Camera
1 Grade Vandal proof Case
2 Kind Install Type Optional
3 Kind network communication type
4 Bracket
5.0 MP 1080P IR VANDALPROOF DOME CAMERA
.High Definition Level
.2560×1920P PAL, 10fps
.Super Low latency of 120ms
.IR-Cut,double-deck Ir Led,avoid IR over-exposure

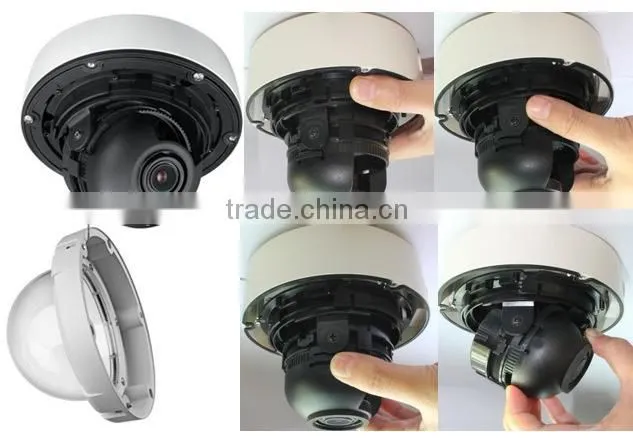

.built in 4- Rotating Mechanism,IR Distance: 40M
.4-9mm 2 megapixel lens
.Audio broadcasting talk back
.1ch BNC local output.
.support ONVIF 2.0 Version compatible
Specification:
F |
Model No. |
HD13VDSR |
HD13VDSV |
HD30VDSV |
HD50VDSV |
||
General Function |
Feature |
Simplification |
Low Illumination |
Wide Dynamic Range |
HD-Low Illumination |
||
CMOS Type |
Aptina Imaging CMOS |
Aptina Imaging CMOS |
Aptina Imaging CMOS |
||||
CMOS Model |
1/3″130 Mega Pixel |
1/3″300 Mega Pixel |
1/2.5″500MP |
||||
|
HD Output Image Adjustable |
960P:1280×960P 720P:1280×720P D1:640×480 |
1080P:2048×1536P 720P:1280×720P D1:640×480 |
1080P:2560×1920P 720P:1280×720P D1:640×480 |
||||
Illumination |
Color: 0.1Lux/BW:0.01Lux(F1.2,AGC ON) |
Color:0.6Lux/BW:0.08Lux(F1.2,AGC ON) |
|||||
IR Distance |
40M(42pcs black IR led) |
||||||
Shutter Speed |
1/60Sec~ 1/100,000Sec,Shutter Speed Adjustable |
||||||
Lens |
Standard 4-9mm(F1.2/M12 Mount)Mega HD Lens |
||||||
Exposure Control |
DSP Auto Adjust |
||||||
AGC & WB |
AGC:Auto(high, media, low ) White Balance:Auto,Close |
||||||
S/N Ratio |
≥50dB |
||||||
Network function |
Network Steadiness |
Auto Reconnect, Register, UPNP, HB Display, Synchronization |
|||||
|
Support Agreement |
Support Onvif2.0,PPPOE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,FTP,NTP,DDNS,DNS |
||||||
Dual Stream |
Dual Stream Transfer(H.264)CBR/VBR Adjustable Main Stream(1M~8Mbps)With Local Skim, TF Card etc. Sub-Stream(0.5MK~2Mbps)With Network Transfer. |
||||||
Upgrade maintenance |
Support Remote Upgrade, With Password Protect. |
||||||
Wireless |
Non |
Charge For Optional, Adapting P2P Intelligence Mobile Phone Visit |
|||||
Special Function |
Optional Function |
Non |
Charge For Optional: POE and TF Card Storage |
||||
Mouse Zoom |
Click Any Rectangle Area and Zoom In or Zoom Out on the Image by Mouse |
||||||
Vandal Resistant |
High Strength Aluminium Casting Alloy,“0°Warp Ray Rate” Acrylic Gauge Cover |
||||||
4Adjustment |
Built in 4-bracket, adjust the surveillance angle at any position easily |
||||||
Waterproof Grade |
constant force soft plug at fitting up joint, IP66 |
||||||
Intelligent Alarm |
Motion detect, Video Shelter, I/O Alarm for Video Lost, IP Address Conflict, Store Abnormal. |
||||||
Video efficiency |
Effective Pixel |
1280*720 |
1280*1080 |
||||
Video Frame Rate |
50Hz/60Hz: 25fps,30fps,50fps,60fps etc |
||||||
Image Capture |
JPEG for Local Storage |
||||||
Image Setting |
Saturation, Luminance, Contrast Ratio Adjustable Through Client or IE. |
||||||
Image rolling-over |
Level Transposition, Turn Up-Side Down, Easy for Install & Adjust. |
||||||
Audio |
Audio Encoding |
Non |
With G.726/G.722/G.711 Standard Code,64Kbps Transfer Speed |
||||
Audio Function |
Non |
Audio broadcast Audi playback |
|||||
Mount Standard |
Power Mount |
DC Female Connector,5.5×2.1mm |
|||||
Network Mount |
1ch 10M/100M ether net mouth, RJ45 Mount |
||||||
Video Output |
1ch local Analog Output, BNC Interface. |
||||||
Alarm Mount |
Non |
1ch Alarm Input 1ch Alarm Output |
|||||
Audio Mount |
Non |
1ch Audio Input 1ch Audio Output |
|||||
RS485 Mount |
Non |
1ch RS485 mount |
|||||
Other standard |
Working Enviroment |
Enviroment Temperature-10°C~+60°C Camera Temperature: 25°C~35°C Humidity:<90% |
|||||
Power Consumption |
DC 12V±5% ,IR Led on: 5W |
||||||
size(mm) |
Products Size:155 × 155 × 130 mm Carton Size:580 × 430 × 380 mm(22pcs/CTN) |
||||||
Weight |
Net Weight:1.35 Kg~1.40 Kg Gross Weight:29.70 Kg~30.80 Kg |
||||||
Optional Funcion:
ABOUT US:
* We usually accept payment by T/T ( bank transfer).
* Packages will be shipped after we receive your payment.
* Welcome OEM & ODM order,MOQ for OEM is 50pcs/model.
* 2 Years of warranty for CCTV cameras & DVRs, 1 year for PTZ Cameras.
* More details, please contact our sales for infomation
Certificates:
