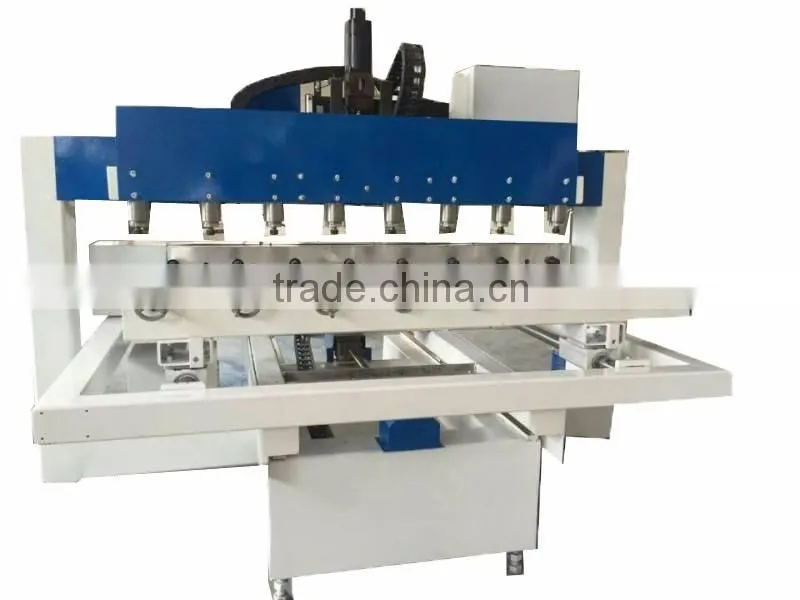

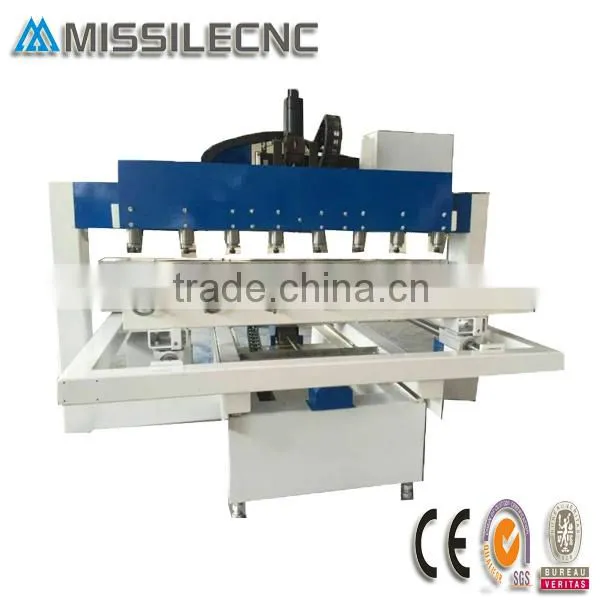

Multi Heads Wood Relief Carving CNC Router with Rotary
Features of Wood relief Carving CNC Router with Rotary :
1. Processing 3D or complex crafts; can be rotated 360 degrees to engraving statues, sculptures, small crafts, european furniture .
2. Adopting the four axis control system, servo drive, handle controled, convenient operation, easy to learn.
3. Using the table driveing, stable operation, higher machining precision.
4. The structure is thick square tube welded bed, heavy capacity, pipe thickness up to 10 mm.
5. High speed spindle motor and adopts water cooling , low energy consumption, this machine consumes 2-3 kw per hour.
Specifications of Wood relief Carving CNC Router with Rotary :
No |
Description |
Parameter |
1 |
Material size |
1200x2500mm |
2 |
Table size |
2000x2450x2200mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.05mm |
4 |
X,Y,Z Repositioning Accuracy |
±0.05mm |
5 |
Table Surface |
Aluminum T-slot Table(Option: Vacuum table) |
6 |
Frame |
Square pipe Welded Structure |
7 |
X, Y axis transmission |
Ball Screw |
8 |
Z axis transmission |
Ball Screw |
9 |
Max. traveling speed |
40000mm/min |
10 |
Max. working speed |
25000mm/min |
11 |
Rail Configuration |
25 square rail |
12 |
Spindle Power |
Water-cooling 2.2KW*8 (OPITIONAL AIR-COOLING SPINDLE) |
13 |
Spindle rotationg Speed |
0-24000RPM |
14 |
Drive Motors |
Servo System |
15 |
Working Voltage |
AC220V/50Hz |
16 |
Operating System |
DSP system |
17 |
Command Language |
G code, u00, mmg, PLT, HPG |
18 |
Software Compatibility |
Powermill |
19 |
Packing and Size |
Wooden case |
20 |
N.W. |
2200KG |
Main applications of Wood relief Carving CNC Router with Rotary :
It is widely used for processing art craft , classical furniture , redwood etc 3d relief engraving .
Furniture: can process cabint , wood door , soild wood , plate-type , windows , table,chairs, etc.
Decoration: screen , wave plate , huge-scale hanging , advertisment plates , markings makiing .
Arts: can engrave on man-made stone , wood , bamboo , marble , acrylic , double-colored board beautiful drawings and letters .
