Model NO.:HD30VDSV
l 3 MP 1080P HD real-time image output, Clear and realistic, Transmission fluently.
l Wide dynamic range is 120dB,Apply to many environment where intense light contrast.
l Best Low-illuminance effect,Colour:0.1 lux(F1.7),B&W:0.01 lux (F1.7).

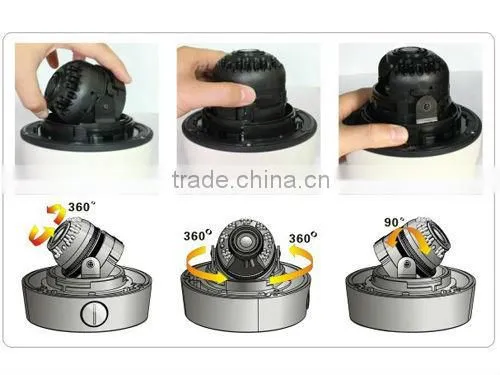

l 4 speedy adjust structure, metal vandal resistant, easy to assemble, waterproof strength constant force, IP 66.
l IR-CUT Filter, Support auto iris, Automatic Electronic shutter function, high definition day and nigh surveillance, adapt to different monitoring environment.
l H.264 video compression technologies, super Low stream can reproduce high definition picture quality, record the condition clearly.
l Support Onvif2.0 protocol. Support RTSP VLC streaming media protocol. Support record FTP upload.
l Dual stream transmission-Local High stream transmission TF card, WIFI low stream visit, Noninterference, clearly image.
l Two-way Audio talk back ,easily Communication. WIFI. P2P function optional,
l Adopt DC power,adopting POE power support, built-in lightning protection 6KV, wave resistance protection and overvoltage protection systems.
l Network remote browse, cooperate platform management, Access easy and convenient, accurate information security.
Parameters:
F |
Model No. |
HD30VDSV |
General Function |
Feature |
Wide Dynamic Range |
CMOS Type |
Aptina Imaging CMOS |
|
CMOS Model |
1/3″300 Mega Pixel |
|
|
HD Output Image Adjustable |
1080P:2048×1536P 720P:1280×720P D1:640×480 |
|
Illumination |
Color:0.6Lux/BW:0.08Lux(F1.2,AGC ON) |
|
IR Distance |
40M(42pcs black IR led) |
|
Shutter Speed |
1/60Sec~ 1/100,000Sec,Shutter Speed Adjustable |
|
Lens |
Standard 4-9mm(F1.2/M12 Mount)Mega HD Lens |
|
Exposure Control |
DSP Auto Adjust |
|
AGC & WB |
AGC:Auto(high, media, low ) White Balance:Auto,Close |
|
S/N Ratio |
≥50dB |
|
Network function |
Network Steadiness |
Auto Reconnect, Register, UPNP, HB Display, Synchronization |
|
Support Agreement |
Support Onvif2.0,PPPOE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,FTP,NTP,DDNS,DNS |
|
Dual Stream |
Dual Stream Transfer(H.264)CBR/VBR Adjustable Main Stream(1M~8Mbps)With Local Skim, TF Card etc. Sub-Stream(0.5MK~2Mbps)With Network Transfer. |
|
Upgrade maintenance |
Support Remote Upgrade, With Password Protect. |
|
Wireless |
Charge For Optional, Adapting P2P Intelligence Mobile Phone Visit |
|
Special Function |
Optional Function |
Charge For Optional: POE and TF Card Storage |
Mouse Zoom |
Click Any Rectangle Area and Zoom In or Zoom Out on the Image by Mouse |
|
Vandal Resistant |
High Strength Aluminium Casting Alloy,“0°Warp Ray Rate” Acrylic Gauge Cover |
|
4- Adjustment |
Built in 4-bracket, adjust the surveillance angle at any position easily |
|
Waterproof Grade |
constant force soft plug at fitting up joint, IP66 |
|
Intelligent Alarm |
Motion detect, Video Shelter, I/O Alarm for Video Lost, IP Address Conflict, Store Abnormal. |
|
Video efficiency |
Effective Pixel |
1280*1080 |
Video Frame Rate |
50Hz/60Hz: 25fps,30fps,50fps,60fps etc |
|
Image Capture |
JPEG for Local Storage |
|
Image Setting |
Saturation, Luminance, Contrast Ratio Adjustable Through Client or IE. |
|
Image rolling-over |
Level Transposition, Turn Up-Side Down, Easy for Install & Adjust. |
|
Audio |
Audio Encoding |
With G.726/G.722/G.711 Standard Code,64Kbps Transfer Speed |
Audio Function |
Audio broadcast Audi playback |
|
Mount Standard |
Power Mount |
DC Female Connector,5.5×2.1mm |
Network Mount |
1ch 10M/100M ether net mouth, RJ45 Mount |
|
Video Output |
1ch local Analog Output, BNC Interface. |
|
Alarm Mount |
1ch Alarm Input 1ch Alarm Output |
|
Audio Mount |
1ch Audio Input 1ch Audio Output |
|
RS485 Mount |
1ch RS485 mount |
|
Other standard |
Working Enviroment |
Enviroment Temperature-10°C~+60°C Camera Temperature: 25°C~35°C Humidity:<90% |
Power Consumption |
DC 12V±5% ,IR Led on: 5W |
|
size(mm) |
Products Size:155 × 155 × 130 mm Carton Size:580 × 430 × 380 mm(22pcs/CTN) |
|
Weight |
Net Weight:1.35 Kg~1.40 Kg Gross Weight:29.70 Kg~30.80 Kg |
Machine Size:
