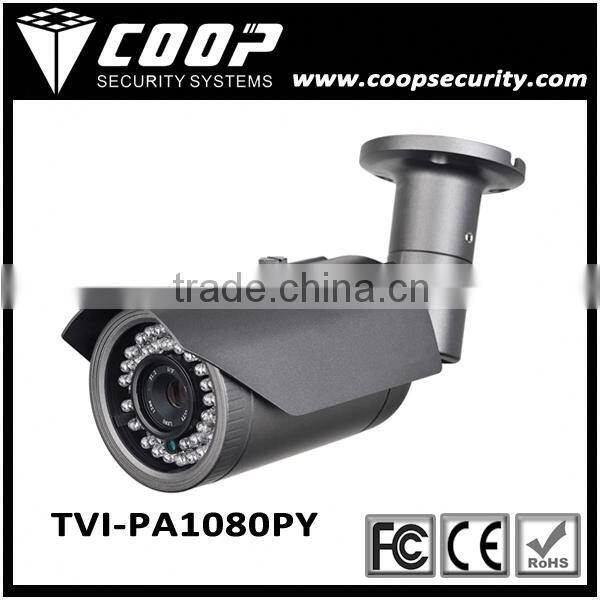

Sony IMX 322 Outdoor 50M IR Camera CMOS Sensor HD TVI 2MP 1080P CCTV TVI Bullet Camera

Coop Security Technology(Quanzhou)Limited
Sony IMX 322 Outdoor 50M IR Camera CMOS Sensor HD TVI 2MP 1080P CCTV TVI Bullet Camera thumbnail-1
Sony IMX 322 Outdoor 50M IR Camera CMOS Sensor HD TVI 2MP 1080P CCTV TVI Bullet Camera photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Coop
Model Number:
TVI-PA1080PY 1080P CCTV TVI Bullet Camera
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Quanzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Coop
Model Number TVI-PA1080PY 1080P CCTV TVI Bullet Camera
Type Analog Camera
Style Bullet Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof

Sony IMX 322 Outdoor 50M IR Camera CMOS Sensor HD TVI 2MP 1080P CCTV TVI Bullet Camera TVI-PA1080PY

Sony IMX 322 Outdoor 50M IR Camera CMOS Sensor HD TVI 2MP 1080P CCTV TVI Bullet Camera





Product Description

1080P CCTV TVI Bullet Camera Features and Benefits:

  • 3M Pixels 2.8-12mm

  • IR distance 35-45M with 42pcs /5 LEDs
  • High-performance CMOS sensor,with Mega pixels resolution
  • Support HD video, control signal transfer
  • Support 75-3 coaxial line with more than 350M transfer distance
  • Support 1080p(1920*1080)@25/30fps
  • High speed, long distance, lives transmission.
  • Support OSD menu adjusting parameter.
  • Support DC 12V Power Supply
  • High-performance, 3D-NR and Super Low Lux Performance
  • Support WDR,DSS,D-ZOOM ,3D-DNR,DEFOG
  • AWB/ATW/PUSH/MANUAL
  • IP66 Weatherproof
  • ICR

1080P CCTV TVI Bullet Camera Specification:

Sony IMX 322 Outdoor 50M IR Camera CMOS Sensor HD TVI 2MP 1080P CCTV TVI Bullet Camera

Model Number

HP-PA1080PY

Camera Solution

EN773E+IMX322+TP2801

Image Sensor

1/2.8”SONY CMOS(IMX322LQJ)

Total Pixels

2000(H) × 1241(V)Approx. 2.48M pixels

Effective Pixels

1984(H) × 1105(V)Approx. 2.19M pixels

Scanning System

Progressive

Resolution

Digital:1080(30p)

Min.lllumination

Color:1.0 lux ,BW: 0.5 lux ,Color:DSS:0.017 lux, BW DSS: 0.0008 lux

Video Output

Digital Output:HD-TVI (1080P)

Analog Output:1Vp-p Composite Output(75Ω

/BNC)

S/N Ratio

More than 50Db(AGC off)

ACE/DWDR

DWDR

Lens

DC/Manual

Brightness

0-20

AGC

0-20 steps

Sens-up

Off-X8

Shutter Speed

AUTO/MANUAL(1/5060 ~ 1/30,000 sec)

Defog

Off/On

Shading

Off/On

BLC

Off/BLC

HLC

Off/Hlc

Day &Night

Auto/Color/B&W/EXTERN

White Balance

Auto/Auto ext/Preset/Manual

MONITOR

0/1/2/3

DNR(Digit Noise Reduction)

Off/Low/Middle/High

Mirror

Off/On

H-V-REV

Off/On

Sharpness

0-10steps

Digital Zoom

1.0x-8.0x

Motion

Off/on

Privacy Mask

16Masks

Language

Chinese/English  polyglot

Power(Max.) supply

DC12V ±10%<1.50W

Video Output

HD-TVI

HD-TVI distance

Support 75-3 coaxial line with more than 350M transfer distance

SIZE

D:290*97(Ø70)*110mm




Company Information

COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.

Sony IMX 322 Outdoor 50M IR Camera CMOS Sensor HD TVI 2MP 1080P CCTV TVI Bullet Camera

Sony IMX 322 Outdoor 50M IR Camera CMOS Sensor HD TVI 2MP 1080P CCTV TVI Bullet Camera



Taipei International Electronic Show:

Sony IMX 322 Outdoor 50M IR Camera CMOS Sensor HD TVI 2MP 1080P CCTV TVI Bullet Camera



 Sony IMX 322 Outdoor 50M IR Camera CMOS Sensor HD TVI 2MP 1080P CCTV TVI Bullet Camera

Packaging & Shipping

Sony IMX 322 Outdoor 50M IR Camera CMOS Sensor HD TVI 2MP 1080P CCTV TVI Bullet Camera


Our Services

1. Pls report us if there are any problem, we will solve it ASAP.

2. This items comes with 2 YEARS

Sony IMX 322 Outdoor 50M IR Camera CMOS Sensor HD TVI 2MP 1080P CCTV TVI Bullet Camera Sony IMX 322 Outdoor 50M IR Camera CMOS Sensor HD TVI 2MP 1080P CCTV TVI Bullet Camera


FAQ

Q: How long your delivery time?

A: In general, the time is about one week.

Q: What’s your payment?

A: We accept payment by TT Bank Transfer in this stage.
