YNRQD-800 Hydraulic soft start device for Belt Conveyor

FOB Price

USD $2,000 - $5,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao/Shanghai port or as per your request

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	LBHI
Model Number	YNRQD 800

Product Description

Hydraulic Motor Coupling can be widely applied to the soft start-up, speed-adjusting and soft braking of belt conveyors, hoisting machinery, construction machinery, military machinery, fans, water pumps and so on; it can significantly improve equipment performance, for instance start-up, operation and stop, eliminating impact on electrical and mechanical equipments; realize automatic overload protection and power balance of main motors ,etc., and increase work efficiency and reliability, energy saving and economizing cost.

Technical advantage

(1) HV motor can be started under un-loaded condition, which reduce the impact to electrical equipments and mechanical equipments.

(2) Able to achieve a full-loaded start-up.

(3) Provide adjustable, smooth and no-impact starting moment.

(4) Starting methods can be programmed for different conveyors.

(5) Small power loss and high efficiency at normal work. (6) Match well with motor and make full use of the maximum moment.

(6) Match well with motor and make full use of the maximum moment.

(7) Ensure that drive motors share the load equally when necessary.

(8) Ensure stepless adjustable speed to satisfy varies work conditions.

(9) Supply automatic protection for overload.

Working condition

As an energy-saving and low-consumption high-tech product of advanced design and manufacture process, Hydroviscous Soft Start Device are of high reliability and low noise, and it is no harm to the environment.

(1). Environment temperature is under +40℃ .

(2). No remarkable and severe swaying, quiver and impact.

(3) No metal-corrosive gas and dust .

(4) No water droplet or water spray.

(5) Applicable for underground coal mine and other explosion proof conditions.

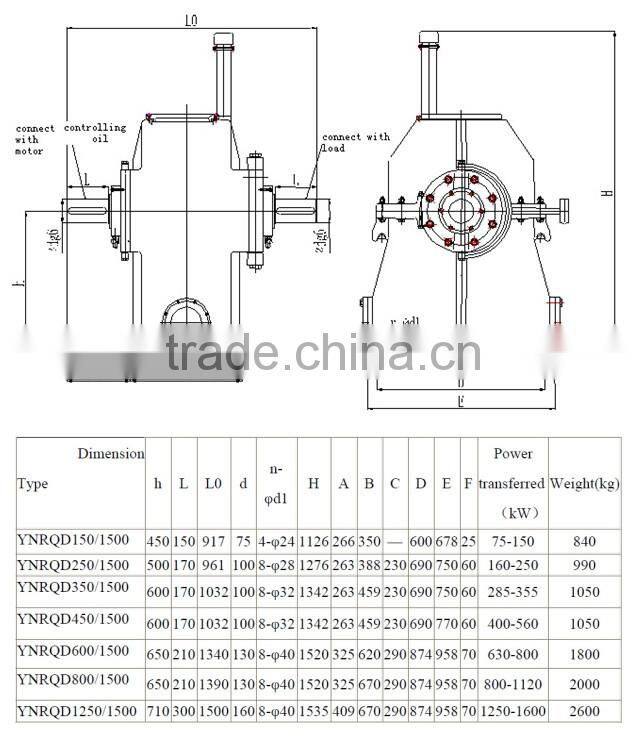

Technical parameter
