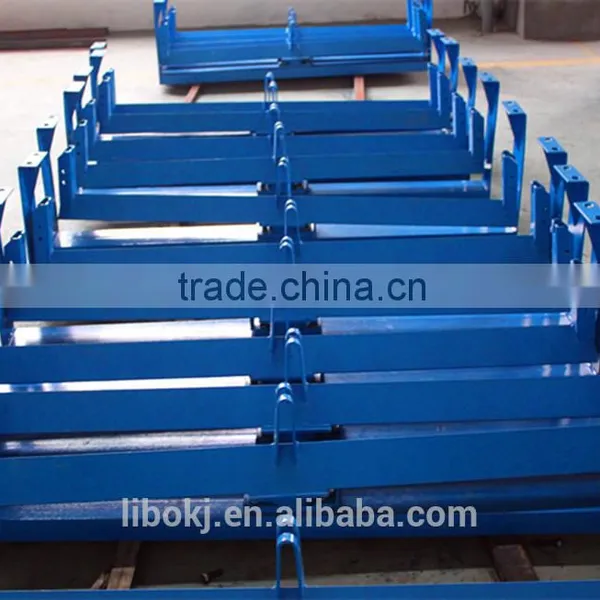

Help CenterMetal Industrial Designs Steel Struture for Belt Conveyor
Related Products
-
KPZ Series Hydraulic Disc Brake DeviceUS$ 5,000 - 6,000MOQ: 1 Set -
Hydraulic Motor Coupling for ConveyorUS$ 2,000 - 5,000MOQ: 1 Set
-
Belt Protection Decive for Belt ConveyorUS$ 1,000 - 2,500MOQ: 1 Set
-
Self Cooling Disc Brake for Conveyor SystemUS$ 5,000 - 6,000MOQ: 1 Set
-
Power Supply Start Device for ConveyorUS$ 2,000 - 5,000MOQ: 1 Set
LBHI Steel structure is the main structure of steel production, it is one of the main types of building structure. The characteristics of the steel is high strength, light weight, good integral rigidity, deformation ability, so it can the construct large span and super high, super heavy buildings,with good homogeneous and isotropic material, belongs to the ideal elastic body, which is the most suitable for the basic assumptions of the general engineering mechanics. and its good toughness, large deformation can well withstand dynamic loads. Its short construction period and high degree of industrialization can specialized in the production of high degree mechanization.
| Specification | ||
| Material | Q345B steel | |
| Surfrace | Hot dip galvanization or as requested | |
| single lane | length 3*X width 4.2m (X is the number of panel) | |
| two lanes | length 3*X width 7.35m (X is the number of panel) | |
| Bolt | Foundation bolt(M24,Q235) | |
| High strengthen bolt(M20X70) | ||
| Normal bolts(M16x50;M12X30) | ||
| Components | High strength bolt | Cr 40, electro-galvanization |
| Sleeve | Steel Q235 & #45, electro-galvanization | |
| Purlin | Steel Q235, galvanization | |
| Roof & Wall panel | Sandwich panel or as requested | |
| Application |
Beam bridge,arch bridge,rigid frame bridge,cable-stayed bridge,suspension bridge.passenger foot-bridge |
|
| Structure drawing design |
According to the supplied technology parameters by customers (for instance: wind speed, rainfall, snow load, earthquake etc.), we can provide the design service. More specific parameter contents can be gotten from the Steel structure preliminary design parameter table. |
|
Features
1. movable and portable
2. easy and quick assembly or disasembly
3. High strength and big stiffness , relative to the concrete bridge can be reduced trabecular high and self-respect
4. Due to the steel isotropic, quality of a material is uniform and modulus of elasticity, that make steel bridge in the working condition and calculation compared with the assumption
5. Steel bridge generally USES factory, site splicing, the construction period is short, processing convenient and not affected by seasonal effect.
6. Steel bridge is suitable for industrialized manufacture and very convenient to transport.
7. Steel bridge is easy to repair and replace,long lifetime,material can be recycled.
LIBO HEAVY INDUSTRY SCIENCE&TECHNOLOGY CO.,Ltd. is located at the foot of Mount Tai, as the state-level High-Tech Enterprise with integrated system of Production, Study and Research.We are specialized in the development and manufacture of complete sets and key components for bulk material handling, especially belt conveyors and stacker-reclaimer used in round stockyard.With the registered capital of ¥119.6millions, we are one of the largest companies in the bulk materials handling industry, which owns high-level technical equipment and comprehensive strength and offer full service for products
LBHI is known all over the world by its high-performance product,higher scientific and environmentally friendly mode of production.These characteristics make LBHI be the quality supplier and reliable business partners to many company in the world.
