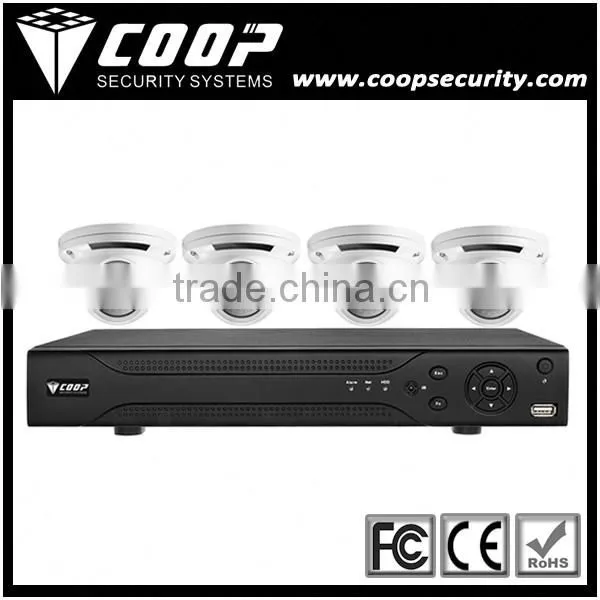

New Survillance System H.264 CCTV Indoor Dome HD-CVI Kit 1080P HD 4CH HDCVI System HP-1080PD-4CVI
1080P HD 4CH HDCVI System Features:
- 4CH HD 1080P HD system
- 4pcs 1080P CVI cameras + 1080P CVI DVR
- Smart Phone:iPhone,iPad,Android
- Color White
- 4 cameras with 1080P Real-time Preview
- H.264 Dual-stream Video Compression
- HDMI/VGA Simultaneous Video Output
- All channel synchronous realtime playback,GRID interface & smart serch
- Support 1 SATA HDD up to 4TB,2 USB2.0
- Multiple Network Monitoring:Web Viewer, CMS(DSS/PSS) & DMMS
- Smart Phone:iPhone,iPad,Android
1080P HD 4CH HDCVI System Camera Spec:

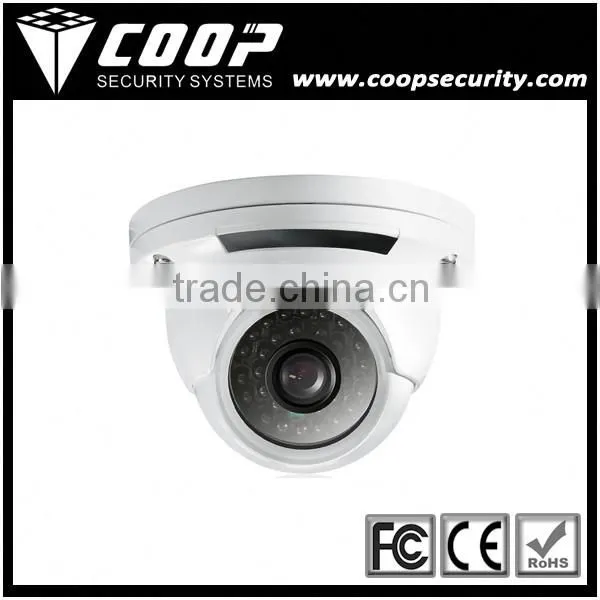

1080P HD-CVI IR Dome camera
1/2.8'' progressive scan 2.1Mega Pixel Sony222 Sensor camera
1080P Support WDR,3D-DNR,Defog
OSD Menu,Motion Detection,Privacy Zone,HLC,BLC
True Day&Night Mechanical Filter(ICR)
IR Distance:20-25M,24pcs Black IR Leds
| Model | CVI-1080P-YXNF |
| DSP | EN773E+IMX322+DH9801 |
| Image Sensor | 1/2.8”SONY CMOS(IMX322LQJ) |
| Total Pixels | 2000(H) × 1241(V)Approx. 2.48M pixels |
| Effective Pixels | 1984(H) × 1105(V)Approx. 2.19M pixels |
| Lens | 3.6mm 24pcs Black IR Leds |
| IR Distance | 20-25M |
| Scanning System | Progressive |
| Resolution | Digital:1080(30p) |
| Min.lllumination |
Color:1.0 lux ,BW: 0.5 lux , Color:DSS:0.017 lux, BW DSS: 0.0008 lux |
| Video Output | Digital output:HD-CVI(1080P) |
| Analog output:1Vp-p Composite Output(75Ω/BNC) | |
| S/N Ratio | More than 50Db(AGC off) |
| AEC/DWDR | CVBS DWDR |
| Lens | DC/Manual |
| Brightness | 0-20 |
| AGC | 0-20 steps |
| Sens up | Off-X8 |
| Shutter Speed | AUTO/MANUAL(1/5060 ~ 1/30,000 sec) |
| Digital Slow Shutter | Off/On(x4) |
| Defgo | Off/On |
| Shading | Off/On |
| BLC | Off/BLC |
| HLC | Off/Hlc |
| Day&Night | Auto/Color/B&W/EXTERN |
| White Balance | Auto/Auto ext/Pushing/Manual |
| Focus ADJ | OFF/ON |
| MONITOR | 0/1/2/3 |
| DNR(Digit Noise Reduction) | Off/Low/Middle/High |
| Mirror | Off/On |
| H-V-REV | Off/On |
| Sharpness | 0-10steps |
| Digital Zoom | 1.0x-8.0x |
| Motion | Off/on |
| Privacy Mask | 32Masks |
| Language | Chinese/English/multiple languages |
| Power(Max.) supply | DC12V ±10%<1.50W |
| Video Output | HD-CVI |
| HD-CVI distance | >350m(BNC 75-3) |
1080P HD 4CH HDCVI System DVR Specification:
Model |
DV-8004-CVI |
DV-8008-CVI |
DV-8016-CVI |
||
System | |||||
Main Processor |
Embedded processor |
||||
Operating System |
Embedded LINUX |
||||
Video | |||||
Input |
4 channel, BNC |
8 channel, BNC |
16 channel, BNC |
||
Standard |
HDCVI |
1080P/720P HDCVI Camera |
|||
IP |
1080P/720P/D1/CIF IP Camera |
||||
Audio | |||||
Input |
1 channel, RCA |
||||
Output |
1 channel, RCA |
||||
Two-way Talk |
Reuse audio input/output channel 1 |
||||
Display | |||||
Interface |
1 HDMI, 1 VGA |
||||
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 |
||||
Display Split |
1/4 |
1/4/8/9 |
1/4/8/9/16 |
||
Privacy Masking |
4 rectangular zones (each camera) |
||||
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
||||
Recording | |||||
Video/Audio Compression |
H.264/G.711 |
||||
Resolution |
1080P(1920×1080)/720P(1280×720)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120) |
||||
Record Rate |
Main Stream: |
1080P(1~12/15fps)/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) |
|||
Extra Stream |
CIF/QCIF(1~25/30fps), D1(1~12/15fps) |
||||
Bit Rate |
48~4096Kb/s |
||||
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
||||
Record Interval |
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
||||
Video Detection | |||||
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Snapshot, Buzzer & Screen tips |
||||
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
||||
Playback & Backup | |||||
Sync Playback |
1/4 |
1/4/9 |
1/4/9/16 |
||
Search Mode |
Time/Date, MD & Exact search (accurate to second) |
||||
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
||||
Backup Mode |
USB Device/Internal SATA burner/Network |
||||
Network | |||||
Ethernet |
RJ-45 port (10/100M) |
||||
Network Functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P |
||||
Max. User Access |
128 users |
||||
Smart Phone |
iPhone, iPad, Android, Windows Phone |
||||
Storage | |||||
Internal HDD |
1 SATA port, up to 4TB |
||||
Auxiliary Interface | |||||
USB Interface |
2 ports(1 Rear), USB2.0 |
||||
RS485 |
1 port, For PTZ Control |
||||
General | |||||
Power Supply |
DC12V/2A |
||||
Power Consumption |
10W(without HDD) |
||||
Working Environment |
-10°C ~+55°C / 10%~90%RH / 86~106kpa |
||||
Dimension(W×D×H) |
Mini 1U |
||||
Weight |
1.5KG(without HDD) |
||||
COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Taipei International Show:
1. Transportation: UPS, TNT, DHL, EMS or FEDEX.
2. Item will be shipped out within 7 working days upon receipt of the payment.
3. Shipment may arrive within 5 – 16 days. Actual delivery days would be different for varies countries.
1. Pls report us if there are any problem, we will solve it ASAP.
2. This items comes with 2 YEARS
Q: How long your delivery time?
A: In general, the time is about one week.
Q: What’s your payment?
A: We accept payment by TT Bank Transfer in this stage.
