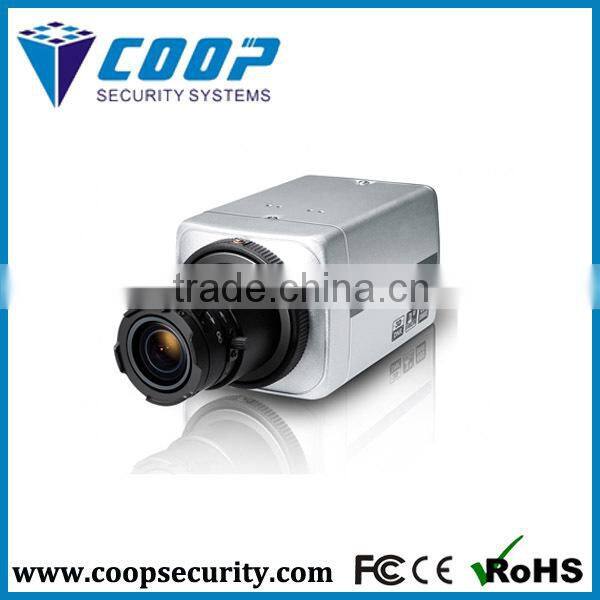

Video Monitoring 1/3"HDIS 720P HD CVI Analog CCTV Camera Box Type For Shop

Video Monitoring 1/3"HDIS 720P HD CVI Analog CCTV Camera Box Type For Shop thumbnail-1
Video Monitoring 1/3"HDIS 720P HD CVI Analog CCTV Camera Box Type For Shop photo-1
US$ 30 - 33 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
coopsecurity
Model Number:
HP-720HRBB-CVI Box Camera
Contact Supplier Request Quote Chat Now
Coop Security Technology(Quanzhou)Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name coopsecurity
Model Number HP-720HRBB-CVI Box Camera
Type Analog Camera
Style Box Camera
Sensor CMOS
Technology NetWork
Special Features Vandal-proof

Video Monitoring  1/3"HDIS 720P HD CVI Analog CCTV Camera  Box Type For Shop



Product Description

 Video Monitoring 1/3"HDIS 720P HD CVI Analog CCTV Camera Box Type For Shop





Model NO.

  HP-720HRBB-CVI

Functions



General

CMOS sensor

1/2.8” SONY Exmor CMOS 1.3Mega Sensor

Total Pixels

1312(H)×1069(V) 1.4M Pixels

Effective pixels

1280(H)×1024(V) 1.31M Pixels

Signal systems

PAL/NTSC

Scanning system

2:1 Interlace

Scanning Frequency

15.734KHz(H),59.94Hz(V)

Synchronization

Internal

Shutter Speed

PAL:1/50~1/100000/s;NTSC:1/60~1/100000/s

S/N

More than 50dB(AGC OFF)

Horizontal resolution

720P

Low illumination

Color: 0.2Lux(F1.2,50IRE,AGC ON),D/N:0.0001Lux(F1.2,50IRE,AGC ON

0Lux(IR LED are on)

D/N

D/N Auto Converter

IR CUT filter Optional (with IR CUT function)

D/N switching method

D/N controlled by CDS

D/N switching time

000~255

Camera Body

Size description

Magnificent design

DWS

Dual windows structure

Bracket

CTB (Cable through bracket), 3bracket(tilt, horizontal, pan)

Body color

STD: Metal gray, Ivory optional

Waterproof rating

IP66

OSD & Special functions

OSD menu

Yes, external adjustment

DNR

3DNDR

Sense up

Off/x2/x4/x6/x8/x16/x32/64/x128/x256

Other function

D-WDR/HLC/Gamma/Motion Detection/Color Tint/BLC/Color adaptive/Title location

Privacy Masking

ON/OFF

Brightness

0~255

White balance

AWB,ATW,MWB

Mirror

Off / H / V / H&V

Title settings

Yes

Title location

Selectable

Others(Approx.)

Video output

VBS 1.0 VPP(75ΩLoad)

Video output

BNC output

DC Type

Power

MAX. DC12V 700mA[8.5W](With Heater: DC12V 1.3A[16W])

Power supply

DC12V 1.0A (With Heater: DC12V 1.5A)

Dual Type

Power

MAX. DC12V 700mA[8.5W](With Heater: DC12V 1.3A[15W])

MAX.AC24V 650mA[16.0W](With Heater: AC24V 950mA[23W])

Power supply

DC12V 1.0A (With Heater: DC12V 1.5A)

AC24V 1.0A (With Heater: AC24V 1.5A)

Working temperature

 -100C~+500C (With heater: -400C~+500C)

Working humidity

20~80% (Non-condensing)

Storage humidity

20~95%(Non-condensing)









Packaging & Shipping

All of items will be careful packaged before shipping, As below photo showed :

Video Monitoring 1/3"HDIS 720P HD CVI Analog CCTV Camera Box Type For Shop

Shipping Way:

by sea /air / express

Video Monitoring 1/3"HDIS 720P HD CVI Analog CCTV Camera Box Type For Shop

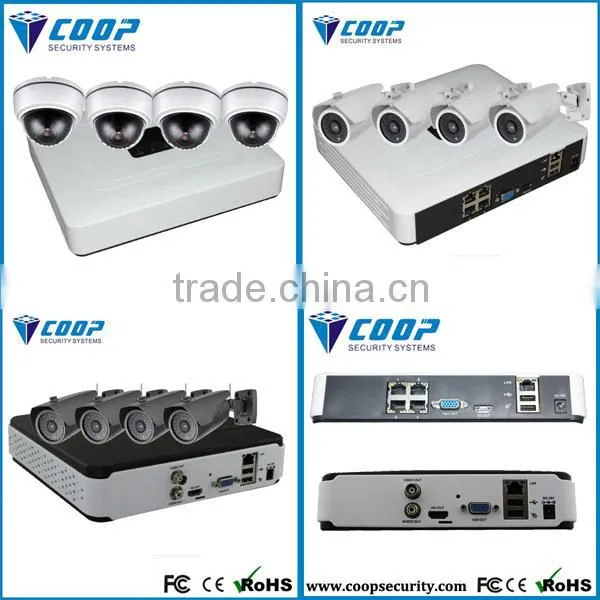

NVR KITS

 NVR KIT

4 channel nvr kit dome camera or bullet camera free combination

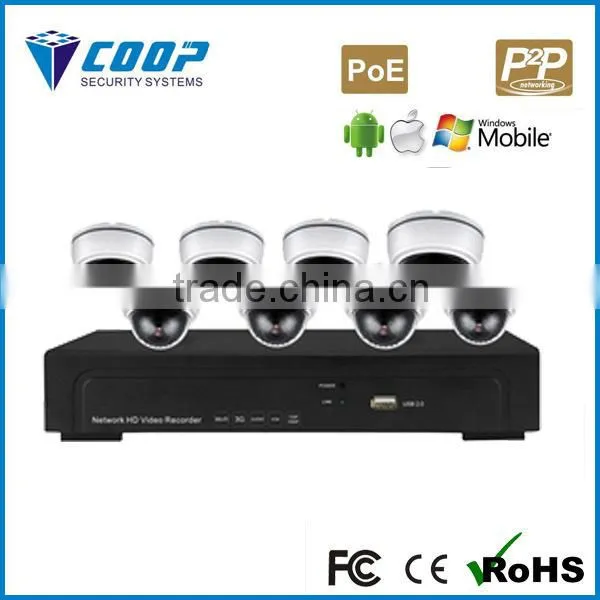

 720P/960P POE NVR KIT 4CH /  720P WIFI NVR KIT 4CH

Video Monitoring 1/3"HDIS 720P HD CVI Analog CCTV Camera Box Type For Shop

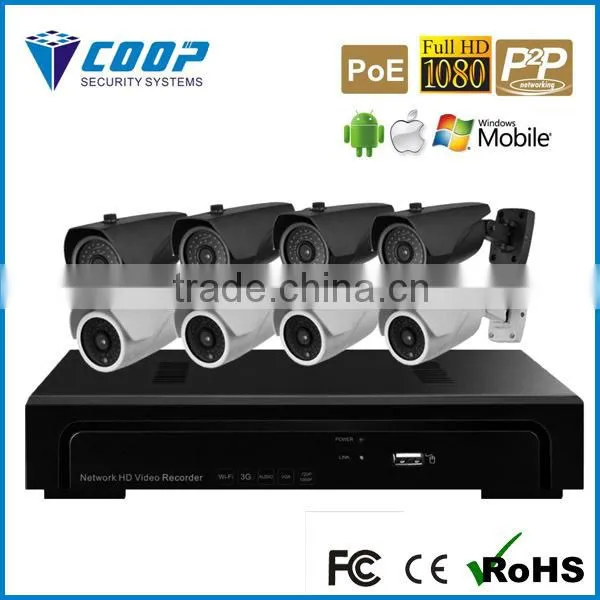

8ch poe nvr kit

720P/960P/1080P optional  Bullet Camera Or Dome Camera Optional

Video Monitoring 1/3"HDIS 720P HD CVI Analog CCTV Camera Box Type For Shop

Video Monitoring 1/3"HDIS 720P HD CVI Analog CCTV Camera Box Type For Shop





Company Information

COOPSECURITY is professional security equipment supplier committe to provide secuiry surveillance goods.

There are wide range of security camera to cover everything. From home design camera with night vision and outdoor project bullet ip ptz and HD resolution camera. Also the related accessoires. All of product were technological updated contantly.

We are hoping to offer you the eco device that low power comsuption, good reliability long life and secure enviroment.

Video Monitoring 1/3"HDIS 720P HD CVI Analog CCTV Camera Box Type For Shop

Certification if you need CE ROHS
