1/3" HDIS CMOS (DH9801+ PO3100K) IR Cut Mini Metal Dome 720P HDCVI Camera
Features:
HD-CVI,1/3"HDIS 720P IR-CUT
Chipset: CMOS DH9801+PO3100K .
Mini Metal Dome Camera Series built in 3-Rotating Mechanism.
Built-in 3.6mm (2.8/4/6/8mm Optional) fixed board lens.
Optional : Dual Power, IR LEDs.
HDCVI Camera Techinical Specification:
CVI-1MP HD CAMERA | ||
Image sensor |
1/3" 1Mega Pixels CMOS |
|
Signal system |
PAL |
|
Effective Pixels |
1280(H)×960(V) |
|
Low Lux |
0.01Lux @ F1.2, AGC ON ), 0 Lux with IR |
|
Electronic shutter |
4/25s~1/45,000s |
|
Video Standard |
Follow HDCVI |
|
Video frame |
1280×720@25 fps; 1280×720@30fps. 1280×720@50 fps; 1280×720@60 fps. |
|
Lens |
3.6/6/8/12/16mm Optional |
|
Day/Night |
ICR mechanical switch |
|
Video output |
HDCVI |
|
OSD |
Support |
|
Menu control |
Exposure Mode |
Whole exposure/Center photometry/Center weight photometry /BLC/ FLC /Feature exposure |
White balance |
AWB-GW/AWB-CCT/AWB-PRO/AWB-TEMPORAL/AWB-AI/AWB-SZ |
|
Day/night switch |
Auto/ B&W / color |
|
Function Set |
3D-NR |
|
AF |
Mirror/Language/system switch/software version function |
|
Image adjustments |
sharpen/contrast/saturation/reference brightness |
|
Transfer distance |
More than 500M with common 75-3 coaxial cable |
|
Operating T&H |
-30℃~+60℃,humidity <95%(no congeal) |
|
Power supply |
DC 12V±10% |
|

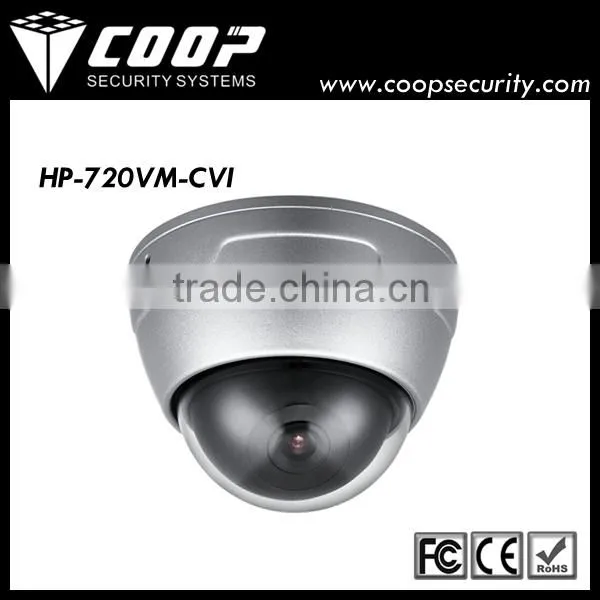

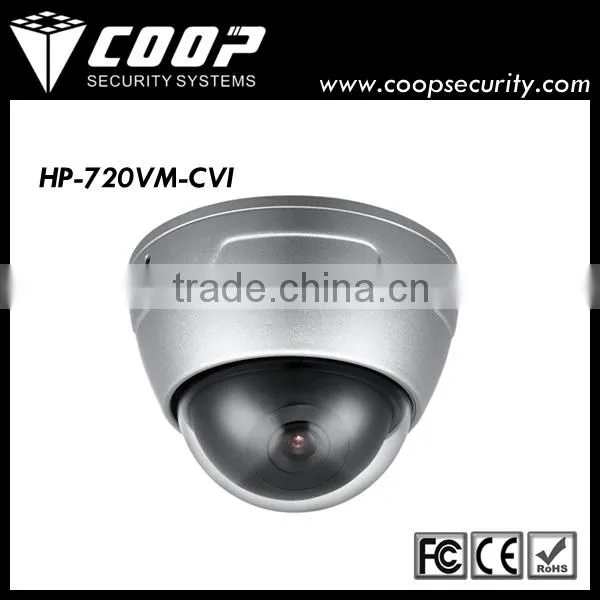

HDCVI Camera Image
HDCVI Camera Packing Info.
Packing: 1pcs to 1 Box. 40 Boxes to 1 Carton. Or as your requirement.
Shipping: small order usually by Express like DHL, UPS, TNT, FedEx, etc. Large order by Air or by Sea. Or as your requirement.
Delivery: usaully in 7-10 workdays after payment received.

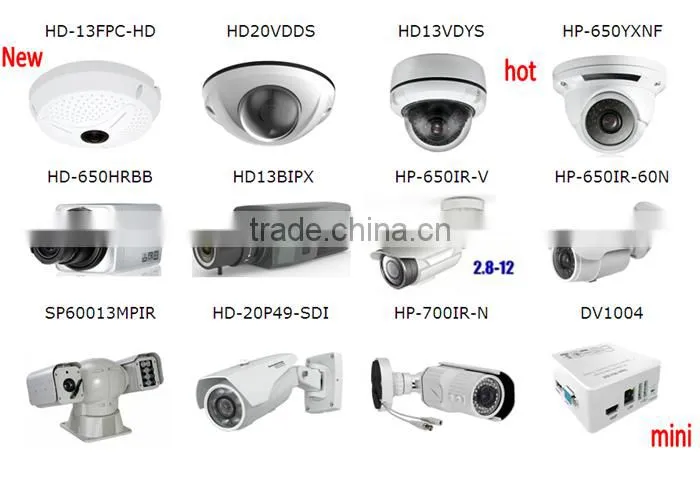

More New Products on China market
* Packages will be shipped after we receive your payment.
* Welcome OEM & ODM order,MOQ for OEM is 50pcs/model.
* Customers's Logo can be putted on cameras.
* 2 Years of warranty for CCTV cameras & DVRs, 1 year for PTZ Cameras.
* More details, please contact our sales for infomation.
Q. What is HDCIV?
A. HDCVI (High Definition Composite Video Interface) is an analog high definition video transmission standard over coaxial cable. It uses progressive scanning and supports two high definition video formats of 1280H and 1920H (1280H is defined as 1280×720 effective resolution; 1920H is defined as 1920×1080 effective resolution). By transmitting uncompressed and lossless signal over point-to-point links, HDCVI is a reliable, none delay, high efficiency and million pixel video transmission technology. HDCVI provide a reliable transmission distance of more than 500m over 75-3 or similar coaxial cable by adaptive corrections of signal loss. In addition, HDCVI owns several independent intellectual property rights, including composite audio signal transmission technology and bi-direction data communication technology.
Q. What's the MOQ for this item?
A. MOQ 1pcs. Sample order is welcome.
Q. What's your detailed warranty policy?
A. Please kindly refer to our webiste for related information: /Warranty.html
