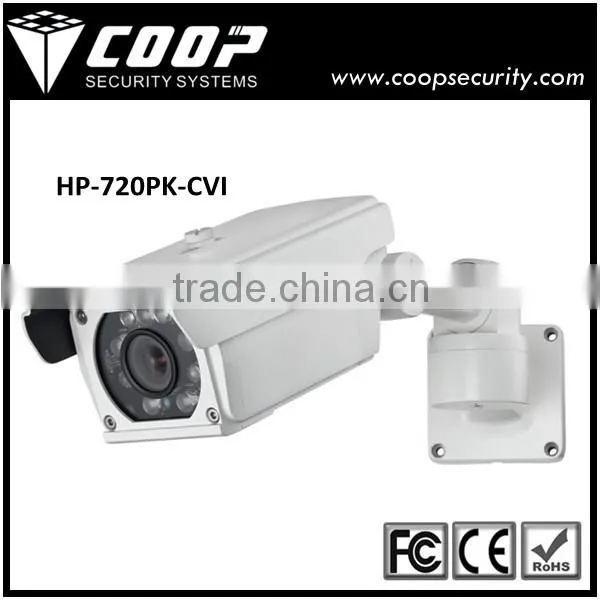

Outdoor IR Night Vision 1.0MP 720P HD CVI Cameras
Chip: CMOS DH9801+PO3100K
Resolution: HD-CVI,1/3"HDIS 720P IR-CUT
IR: 9pcs of Laser LEDs, IR Distance 60m.

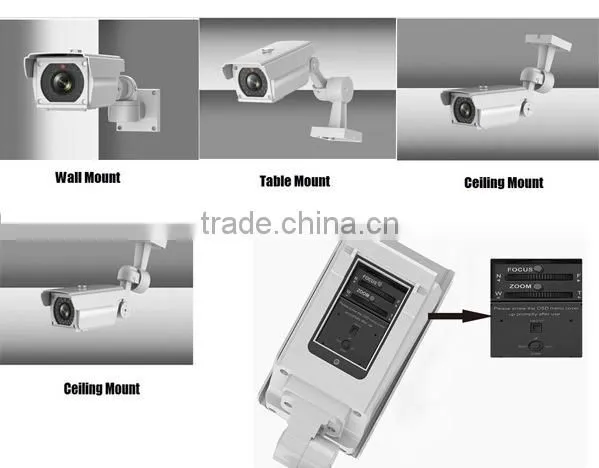

Structure: Dynamic 3-Bracket (Table Mount,Wall Mount,Ceiling Mount)
Optional Functions: AC24V/12V ; Heater
Lens: Built-in 2.8-12mm Mepapixel Manual iris Lens (4-9mm/9-22mm Optional)
Features of HD CVI Cameras
HDCVI is on the technical base of Zhejiang Dahua Technology Co., Ltd. ,being a new technology which is own research, enable to reliably transmit super long-distance HD video signal through low-costs and low-quality coaxial cable . It uses baseband modulation and quadrature amplitude modulation, modulating video to the analog electrical signal then transmitting,so named HDCVI . The technology own several obvious advantages as bellowing :
------------------------------------------------------------------------------------------------------------------------------------------
1. HDCVI can transmit HD video with 720P and 1080P effective resolution . Through SYV75-3 coaxial cable ,it enable to transmit at least 500m,with low signal distortion.
------------------------------------------------------------------------------------------------------------------------------------------
2. HDCVI use low-frequency analog modulation technology . It avoids interference of high-frequency wireless electromagnetic radiation from the nature of the technical principles . Even under strong-interference sources environment ,HDCVI ensure to transmit high-quality image .
------------------------------------------------------------------------------------------------------------------------------------------
3.HDCVI technology keep the analog SD construction requirements and cabling specifications , Ordinary weak construction workers can quickly deploy HD monitor subsystem.
------------------------------------------------------------------------------------------------------------------------------------------
4.Current analog SD devices upgrade can seamlessly switch to HDCVI products . By replacing the camera and DVR to realize the full HD monitoring requirements.
------------------------------------------------------------------------------------------------------------------------------------------
5.HDCVI system keep the same using method as SD system . Analog camera plus DVR deploy inner system equipments to achieve plug and play , based on DVR interoperation .
Technical Specification
CVI-1MP HD CAMERA | |||
Image sensor |
1/3" 1Mega Pixels CMOS |
||
Signal system |
PAL |
||
Effective Pixels |
1280(H)×960(V) |
||
Low Lux |
|||
Electronic shutter |
4/25s~1/45,000s |
||
Video Standard |
Follow HDCVI |
||
Video frame |
1280×720@25 fps;1280×720@30 fps; 1280×720@50 fps;1280×720@60 fps; |
||
Lens |
3.6/6/8/12/16mm Optional |
||
Day/Night |
ICR mechanical switch |
||
Video output |
HDCVI |
||
OSD |
Support |
||
Menu control |
Exposure Mode |
Whole exposure/Center photometry/Center weight photometry /BLC/ FLC /Feature exposure |
|
White balance |
AWB-GW/AWB-CCT/AWB-PRO/AWB-TEMPORAL/AWB-AI/AWB-SZ |
||
Day/night switch |
Auto/ B&W / color |
||
Function Set |
3D-NR |
||
AF |
Mirror/Language/system switch/software version function |
||
Image adjustments |
sharpen/contrast/saturation/reference brightness |
||
Transfer distance |
More than 500M with common 75-3 coaxial cable |
||
Operating T&H |
-30°C~+60°C,humidity <95%(no congeal) |
||
Power supply |
DC 12V±10% |
||
Dimension of HD CVI Cameras (HP-720PK60-CVI)
Packing: 1 pcs to 1 Box. 16 Boxes to 1 carton. (Unit weight: 9.5KG, Volume 0.08CBM)
Delivery: Usually 7-10 workdays upon receipt of payment.
Shipping: within 10 workdays. Usually shipping by Express (DHL/UPS/ TNT / FedEx /EMS, etc.)
By Air or by sea for large order.
1. Sample order is highly welcomed.
2 Your LOGO can be puttted on cameras.
2. Model Number can be customized.
3. Welcome OEM & ODM order, MOQ for OEM is 50pcs/model.
More Products s
Q. What's the MOQ for this item?
A. MOQ 1pcs. Sample order is welcome.
Q. What's the payment term?
A. We accept payment by T/T bank transfer, PayPal, or WesterUnion.
Q. What's the delivery time?
A. Usually in 7-10 workdays after payment received.
Q. What's your detailed warranty policy?
A. Please kindly refer to our webiste for related information: /Warranty.html
