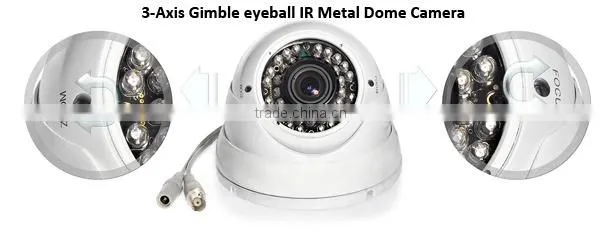

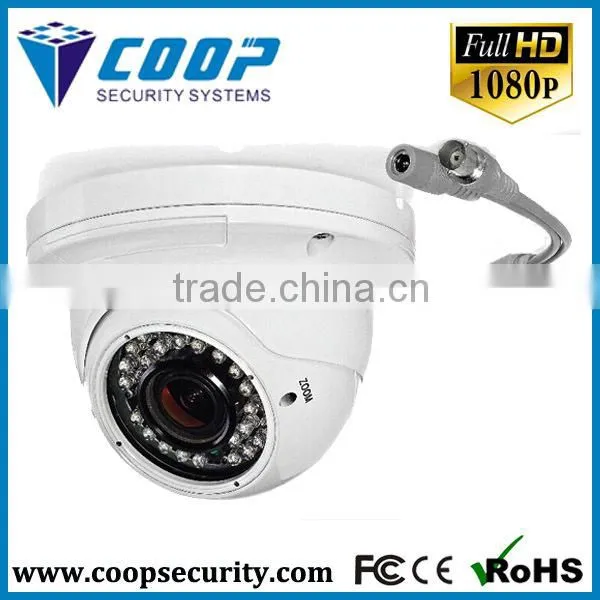

HDCVI AHD TVI CCTV Full HD Security Surveillance Camera Dome TVI Camera 1080P

US$ 45 - 65 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Model Number:

TVI-PA1080PV 1080P Dome IR TVI Camera

Type:

Analog Camera

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Model Number TVI-PA1080PV 1080P Dome IR TVI Camera

Type Analog Camera

Style Dome Camera

Sensor CMOS

Technology NetWork

Special Features Other

HDCVI AHD TVI CCTV Full HD Security Surveillance Camera Dome TVI Camera 1080P

Product Description

Model Number	HP-PA1080PV
Camera Solution	EN773E+IMX322+TP2801
Image Sensor	1/2.8”SONY CMOS(IMX322LQJ)
Total Pixels	2000(H) × 1241(V)Approx. 2.48M pixels
Effective Pixels	1984(H) × 1105(V)Approx. 2.19M pixels
Scanning System	Progressive
Resolution	Digital:1080(30p)
Min.lllumination	Color:1.0 lux ,BW: 0.5 lux ,Color:DSS:0.017 lux, BW DSS: 0.0008 lux
Video Output	Digital Output:HD-TVI (1080P) Analog Output:1Vp-p Composite Output(75Ω /BNC)
S/N Ratio	More than 50Db(AGC off)
ACE/DWDR	DWDR
Lens	DC/Manual
Brightness	0-20
AGC	0-20 steps
Sens-up	Off-X8
Shutter Speed	AUTO/MANUAL(1/5060 ~ 1/30,000 sec)
Defog	Off/On
Shading	Off/On
BLC	Off/BLC
HLC	Off/Hlc
Day &Night	Auto/Color/B&W/EXTERN
White Balance	Auto/Auto ext/Preset/Manual
MONITOR	0/1/2/3
DNR(Digit Noise Reduction)	Off/Low/Middle/High
Mirror	Off/On
H-V-REV	Off/On
Sharpness	0-10steps
Digital Zoom	1.0x-8.0x
Motion	Off/on
Privacy Mask	16Masks
Language	Chinese/English polyglot
Power(Max.) supply	DC12V ±10%<1.50W
Video Output	HD-TVI
HD-TVI distance	Support 75-3 coaxial line with more than 350M transfer distance
SIZE	D:Ø135*85mm(H)
