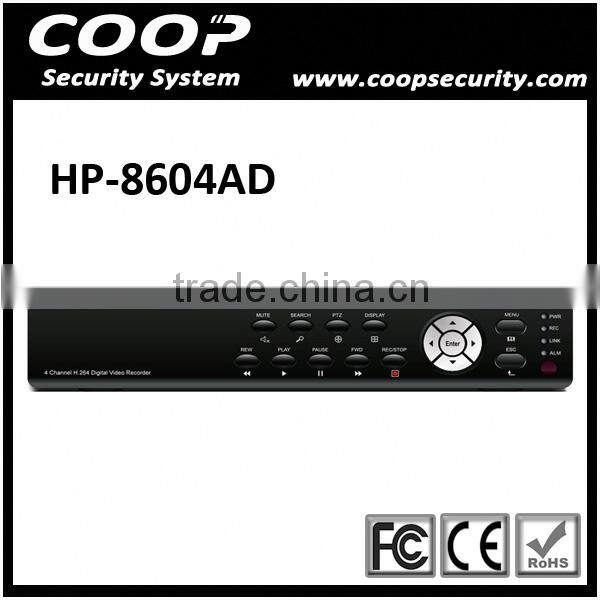

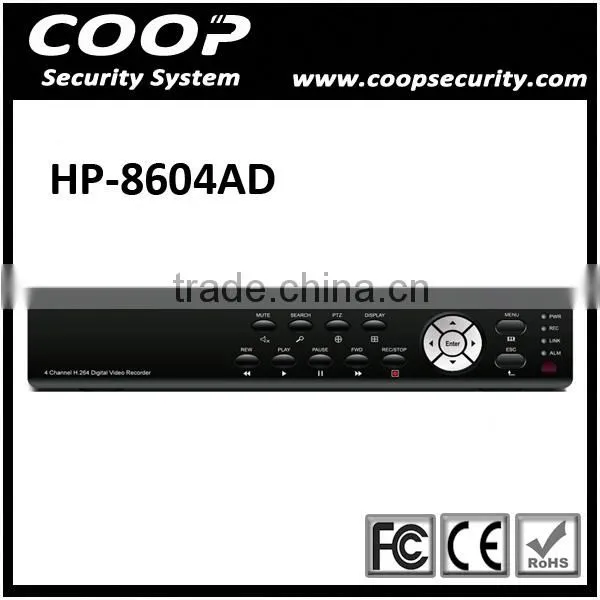

Cheap Dual Stream BNC VGA P2P DVR PTZ DVR H.264 HDMI 4CH CIF DVR

Cheap Dual Stream BNC VGA P2P DVR PTZ DVR H.264 HDMI 4CH CIF DVR thumbnail-1
Cheap Dual Stream BNC VGA P2P DVR PTZ DVR H.264 HDMI 4CH CIF DVR photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Coop
Model Number:
HP-8604AD HDMI 4CH CIF DVR
Contact Supplier Request Quote Chat Now
Coop Security Technology(Quanzhou)Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Quanzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Coop
Model Number HP-8604AD HDMI 4CH CIF DVR

Specifications

HDMI 4CH CIF DVR
1.4/8ch Full real time
2.VGA,BNC,RCA
3. P2P,PTZ
4.H.264

 Cheap Dual Stream BNC VGA P2P DVR PTZ DVR H.264 HDMI 4CH CIF DVR HP-8604AD

Cheap Dual Stream BNC VGA P2P DVR PTZ DVR H.264 HDMI 4CH CIF DVR

Cheap Dual Stream BNC VGA P2P DVR PTZ DVR H.264 HDMI 4CH CIF DVR



Product Description
Cheap Dual Stream BNC VGA P2P DVR PTZ DVR H.264 HDMI 4CH CIF DVR HP-8604AD adopts the standard Main profile H.264 compression technology, supports 4ch D1&CIF recording, Network transmission, and playback simultaneously. Support dual-stream transmission for all channels.

HP-8604AD HDMI 4CH CIF DVR Features:

  • Support Multiplex operation: live, record, playback, backup, network transmission,  mobile phone surveillance
  • Support backup with USB Flash Disk, Movable hard disk, USB writer, Network
  • Support 1channel BNC output, 1channel. VGA output
  • Support Email alarm
  • Mobile phone surveillance (Win CE/Symbian/iPhone/Blackberry)
  • Support PTZ Control
  • Support Multi-language OSD
  • Supports mouse, remote controller operating



HP-8604AD HDMI 4CH CIF DVR Specification:

Cheap Dual Stream BNC VGA P2P DVR PTZ DVR H.264 HDMI 4CH CIF DVR

Model

HP-8604AD

HP-8608AD

Channel

4CH

8CH

Operating System

Embedded LINUX

Video

Video Compression

H.264

Record Resolution

D1/Half-D1/CIF

Frame Rate

PAL: D1/Half-D1/ CIF@25fps

NTSC: D1/Half-D1/ CIF@30fps adjustable

Bit Rate

128kbps ~ 2048kbps

Audio

Audio Compression

ADPCM

Bit Rate

16kbps

Voice Talkback

Two-way Talkback

Hard Disk

Interface

1CH SATA/ 2CH SATA

Capacity

Max 2TB(1*2TB)/ Max 4TB(2*2TB)

Basic Functions

Recording Mode

Schedule, manual >alarm>motion detection

Multi-playback

1/4/all simultaneously

Backup Method

USB Flash drive/USB HDD/ USB CD&DVD-RW/Network

Alarm Trigger

Buzzer, Alarm, Recording, PTZ movement, Email, Channel pop-up

PTZ Control

Support preset point, cruise

Digital zoom

Live view zoom, playback zoom

Pre-record

0~30s

Multi-language

More than 15 languages, customizable.

Network

Networking Mode

Support PPPOE, static IP, DHCP, 3G

Web browser

Support Windows platform IE6-IE10, Chrome, Firefox, Opera, Safari, etc.

Client Software

Support Windows and MAC OS platform

CMS

Support Windows platform

Mobile Device

Support iPhone, iPad, Android, Live view & playback

DDNS

Build-in special freee DDNS and Third-party DDNS

P2P Cloud ID

Support

Input Output Interface

Video Input

4CH, BNC (1.0Vp-p, 75Ω)

8CH, BNC(1.0Vp-p, 75Ω)

Video Output

1CH, BNC (1.0Vp-p, 75Ω)

1CH, VGA (1280x1024, 1024x768, 800x600)

1CH, HDMI 1920x1080

Audio Input

4CH, RCA(optional)

8CH, RCA

Audio Output

1CH, RCA

Alarm Input

4CH, on-off input (optional)

8CH, on-off input (optional)

Alarm Output

1CH, on-off output (optional)

Network Port

1CH, RJ45 10/100M Ethernet interface

Serial Interface

1CH, RS485 PTZ (A +B -G)

USB

2CH USB Ports

Other

Power Supply

DC 12V/3A; DC12V/4A

Consumption

<10W (without HDD)




Company Information

COOP SECURITY(CHINA)LIMITED is one of the leading factories which develop and produce CCTV products in China, supported by the Chinese government as the most importantly developed company. All the models are produced by machine automatically.It has a Research and Development Center in Taiwan, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.

Cheap Dual Stream BNC VGA P2P DVR PTZ DVR H.264 HDMI 4CH CIF DVR



Taipei International Show:

Cheap Dual Stream BNC VGA P2P DVR PTZ DVR H.264 HDMI 4CH CIF DVR



Cheap Dual Stream BNC VGA P2P DVR PTZ DVR H.264 HDMI 4CH CIF DVR


Packaging & Shipping

1. Transportation: UPS, TNT, DHL, EMS or FEDEX.

2. Item will be shipped out within 7 working days upon receipt of the payment.

3. Shipment may arrive within 5 – 16 days. Actual delivery days would be different for varies countries.

Cheap Dual Stream BNC VGA P2P DVR PTZ DVR H.264 HDMI 4CH CIF DVR


Our Services

1. Pls report us if there are any problem, we will solve it ASAP.

2. This items comes with 2 YEARS

Cheap Dual Stream BNC VGA P2P DVR PTZ DVR H.264 HDMI 4CH CIF DVR  Cheap Dual Stream BNC VGA P2P DVR PTZ DVR H.264 HDMI 4CH CIF DVR






FAQ

Q: How long your delivery time?

A: In general, the time is about one week.

Q: What’s your payment?

A: We accept payment by TT Bank Transfer in this stage.
