Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > 4 CH D1&CIF H.264DVR Mobile DVR

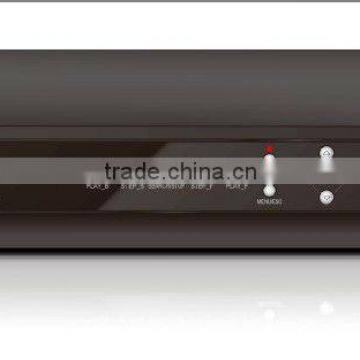

4 CH D1&CIF H.264DVR Mobile DVR

Name: 4 CH D1&CIF H.264DVR Mobile DVR
Brand: COOP security dvr
SKU: 103882215

4 CH D1&CIF H.264DVR Mobile DVR thumbnail-1

US$ 30 - 40 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

COOP security dvr

Model Number:

HP5804H Mobile DVR

Contact Supplier Request Quote Chat Now

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name COOP security dvr

Model Number HP5804H Mobile DVR

Type Digital Camera

Style Mini Camera

Sensor Other, h.264 dvr

Technology NetWork

Special Features Waterproof / Weatherproof

Specifications

4 CH D1&CIF H.264DVR
storage/cloud push /video linkage/3G dialing /P2P /PNP/FTP
2.DI/HDMI/960H/Real time/H.264

Full D1/HDMI/960H Economical Cloud DVR with cloud storage/cloud push /video linkage/3G dialing service/P2P /PNP/FTP

4ch mini dvr applies the leading SOC technology, and standard H.264

encoding, with high-definition Full D1/HDMI/960H Economical Cloud DVR with cloud storage/cloud push /video linkage/3G dialing service/P2P /PNP/FTP image and more stable system.This model has powerful function and user friendly GUI. Support cloud service, operate easily, and suitable for home, shop, small and medium civil security.

Main Features:

1Video file encrypted&decrypted
2Full D1( HDMI/960H )for each channel
3H.264 video compression
4Post-recording
5Manufacturer

6Over ten year's experience in this field

7WIFI, GPS, PTZ, G-Sensor for options

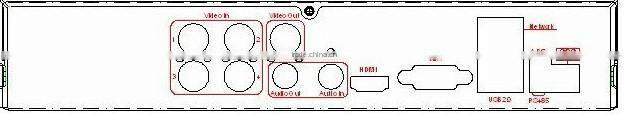

Physical interface:

Specifications:

Video/ Audio input	password security :	Multi-user management operation
	Analog video input:	4CH,BNC, 1.0p-p, 75Ω,
	Audio input:	1CH, RCA, 2.0Vp-p,600kΩ
Video/Audio output	HDMI Output:	support
	VGA output:	1CH, resolution: 800600, 1024768,1280*1024
	Display:	1ch / 4ch optional
	Video standard:	PAL/NTSC
	CVBS Output:	1CH,BNC, (1.0Vp-p,75Ω) Resolution: PAL (704576), NTSC(704480)
	Audio output:	1CH, RCA, (Linear electrical level, 600Ω)
Video/Audio encoding parameters	Video compression:	H.264
	Display frame rate:	PAL: 100fps (4 x 25 fps)NTSC: 120fps (4 x 30 fps)
	Record frame rate:	PAL: 100 fps(4 x 25 fps) NTSC:120 fps(4 x 30 fps)
	video coding resolution:	4CIF(704X576)
	video frame rate:	1-25FPS
	video bit rate:	changeable and fixed bit rate(optional)
	Stream type:	composite/ video
	Audio compression:	ADPCM
	Recording Mode:	Support normal / timer / alarm / motion detection recording
	search video files :	By time period / channel / video type
	Audio bit rate:	8-32kbps
	Dual steaming:	support
	Mobile phone monitoring:	Android / iphone / blackberry / windows / symbian
	Recording resolution:	Recording: 4ch D1 Playback: 4ch D1
	Synchronous Playback:	4ch

Selling points

1. Connect the normal network cable and make sure the Router can make DVR get IP address automatically or set a fixed IP in the DVR, to ensure DVR connect internet normally like computer when plug the network cable (router should turn off the firewall)

2. In DVR main menu , click right mouse button and then press Info to get the DVR NAT ID

3.An installation CD-ROM comes with the CMS client software, when installation completed, showed below icon on the desktop.

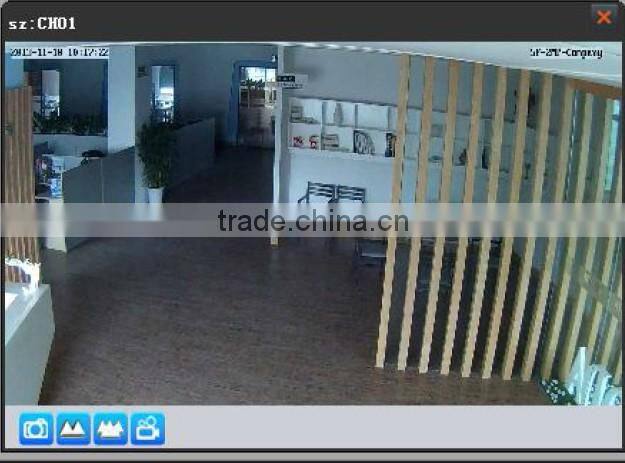

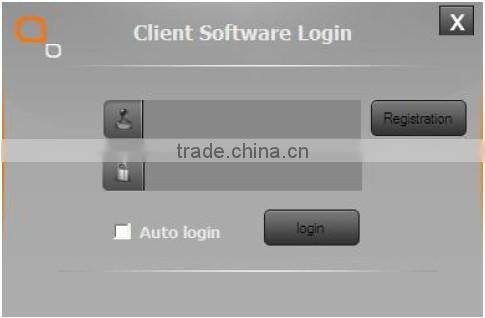

4. Fill correct Nat ID and then Login into the CMS interface, it will connect the DVR automatically .When connection success, it will display the blue flag on the upper-right corner. when connection fails, it will display black flag. Drag camera icon into the player window, when play successfully ,it shows the stream and channel number at the same time.

Note:When the image dropped frames or work slow, please check whether the network bandwidth is enough. Or please use local area network to test whether the image dropped frames.(if the image work smoothly in local area network ,it will be the network problem.)
