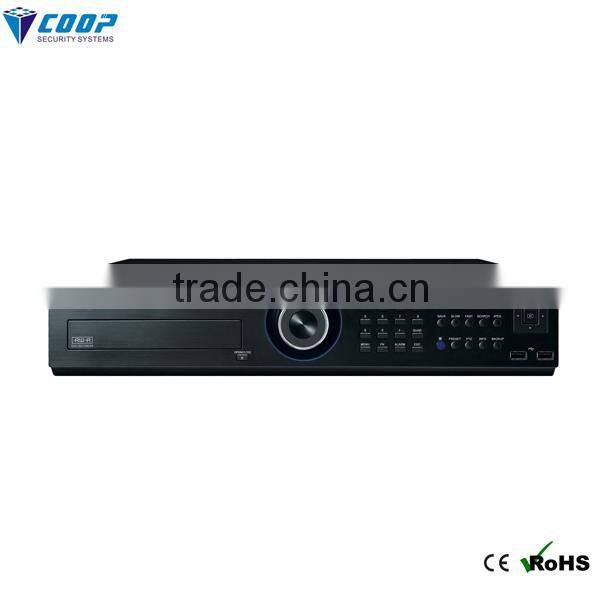

H.264 CMS High Quality 16 Ch 720P Wireless DVR Kit

Model

HP-4004H-SDI

HP-4008H-SDI

HP-4016H-SDI

HP-4016HA-SDI

System

Main processer

Industry level embedded microprocessor

Operation system

Embedded LINUX operation system

System resource

synchronous multi-channel recording, synchronous multi-channel sub-code stream, synchronous multi-channel playback, synchronous network operation

Interface

Operation interface

16 bit true color graphical menu interface, mouse operation supportive

display

1/4

1/4/8/9

1/4/8/9/16

Video

Video standard

PAL;NTSC

Image code

H.264(High Profile)

Surveillance image quality

Monitor: 1080p/D1;VGA:  HDMI:

Playback quality

1080P,720P,D1/HD1/CIF/QCIF

Coding capacity

4CH 1080P Real time

8CH 720P Real time

16CH 720P Real time

encoding capacity

1CH 1080P Real time

1CH 720P Real time

4CH 720P Real time

Multi mode input

Support HD input,4ch 1080p

Support HD input,max.8ch 720P

Support HD input,max.16ch 720P or 4ch 1080p

Motion detection

Area: 192(22 * 18) zone, Sensitivity optional

Audio

Audio compression

G711A

Talk-back

Support

Recording

And

Playback

Recording mode

manual >alarm>motion detect>timing

Local playback

Single channel playback,  All channels playback

Recording look-up mode

Time searching, calendar searching, affair searching, channel searching, information searching

Storage

And

Backup

Hard disk capability for each channel

Video: CIF 4~5G/day*ch,D1: 16~20G/day*ch 960H: 9~42G/day*ch 720P: 10G~42G/day*ch;1080P: 20G~80G/day*ch audio: 691.2M/day*ch

Recording storage

Hard disk, network

Backup mode

Network, USB,SATA,SATA DVD-RW

Video input

4ch HD-SDI

8 CH HD-SDI

16HD-SDI

Video output

2ch BNC(1.0Vp-p,75Ω)( 1ch Spot),1ch VGA,1ch HDMI

Audio Input

4CH RCA

(200-2800mV,30KΩ)

8CH RCA

(200-2800mV,30KΩ)

16CH RCA

(200-2800mV,30KΩ)

Audio output

1ch RCA(200-3000mV,5KΩ)

Alarm input

16ch

Alarm output

4ch

Network

RJ45 10M/100M adoptive Ethernet network port

PTZ control

1 RS485,1 RS232;

USB

2pcs USB

HDD

8pcs SATA(each for Max.3TB)

8pcs SATA (each for Max.3TB)

4pcs SATA(each for Max.3TB)

8pcs SATA(each for Max.3TB)

Wireless

3G,WIFI

Others

Power

ATX220V/100V

Power consumption

<15W(not including HDD)

Work temperure

0°C-+55°C

Work humidity

10%-90%

Air pressure

86kpa-106kpa

Size

430mm*400mm*90mm

Weight

10KG
