Specifications
cctv lcd monitorD1&CIF H.264 HDMI DVR 24CH
Multi-language OSD
Email alarm /3G/ WiFI
mouse, remoter controller, panel ope

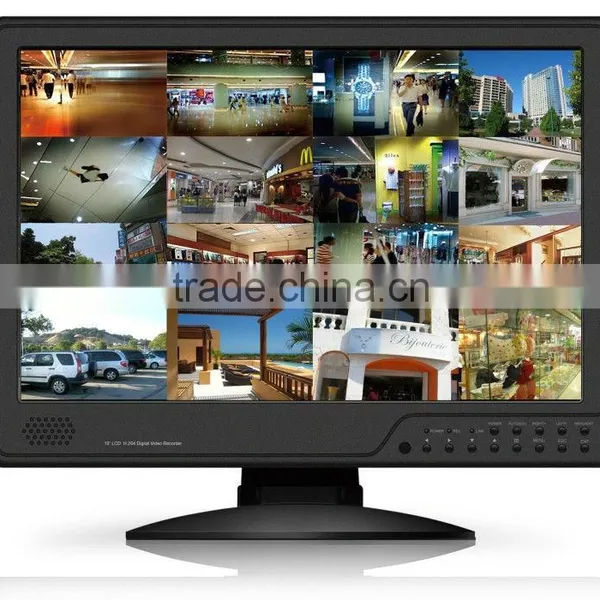

Cloud p2p Network CIF HDMI H.264 cctv lcd monitor
Product Description
Cloud Network CIF HDMI H.264 DVR 24CH
Intelligence analysis system:Has perimeter detection (cordon warning area), items Care (lost, legacy), video signaldiagnosis the core intelligent analysis function, support alarm linkage, monitoring morepeace of mind
HD iDVR Three in one: DVR / HVR / NVR function 2-in-1 Multi-mode input, support 24/32 analog video encoding, support for pure HD network video input. DVR/ HVR/ NVR.
Step on the Internet:Abandon all kinds of complicated settings easily achieve a variety of networkpenetration through cloud monitoring service, step to achieve remote monitoring.
Compression algorithm ideal: H.264,The state-of-the-art space-time filtering technology stream representing a decrease of30% or more.
Mobite monitor: (iPhone,Windows Mobile,BlackBerry,Symbian,Android)
Display:Support TV, HD VGA, high-definition HDMI output, VGA, HDMI support 1080P HDoutput true HD resolution output technology leadership.
Operation interface:Similar o the WINDOWS operating style, powerful mouse right-click menu function,surprisingly easy to get started.
Network: Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAILl, IP permissions, IP search, alarm center), perfect matching (WEB, Client, SDK),easy to achieve interoperability.
Browsers:support (IE,CHROME,FIREFOC,SAFARI).
Model No. |
HP6808H |
Main Function |
|
Operating system |
Embedding Linux OS |
Video Compression Format |
Main Profile H.264 |
Video Input |
8Channels BNC |
Video Output |
1 Channel BNC, 1 Channel VGA, 1 Channel HDMI(1920*1080P) |
Audio Input/Output |
8 CH RCA/1CH RCA |
Display Picture |
1/4/8CH PIP/ZOOM |
Multiplex Operation |
LivedisplayPlaybackRecordingBackup Mobile phone Surveillance Network simultaneously |
CCTV DVR Features and Benefits:
1. Adopts the standard Main profile H.264 compression technology, supports 4ch D1&CIF recording, Network transmission, and playback simultaneously
2. Support dual-stream transmission for all channels
3. Support Multiplex operation: live, record, playback, backup, network
transmission, mobile phone surveillance
4. Support backup with USB Flash Disk, Movable hard disk, USB writer, Network
5. Support 1channel BNC output, 1channel. VGA output
6. Support Email alarm
Model |
HP-9624EJ |
HP-9624EJ-A |
HP-9624EJ-B |
||
HP-9632EJ |
HP-9632EJ-A |
HP-9632EJ-B |
|||
System |
Main processer |
Industry level embedded microprocessor |
|||
Operation system |
Embedded LINUX operation system |
||||
System resource |
synchronous multi-channel recording, synchronous multi-channel sub-code stream, synchronous multi-channel playback, synchronous network operation |
||||
Interface |
Operation interface |
16 bit true color graphical menu interface, mouse operation supportive |
|||
display |
1/4/8/9/16/24/32 |
||||
Video |
Video standard |
PAL;NTSC |
|||
Image code |
H.264(High Profile) |
||||
Surveillance image quality |
Monitor:D1;VGA,HDMI:HD(1920*1080) |
||||
Playback quality |
D1/HD1/CIF/QCIF |
||||
Coding capacity |
24ch CIF |
8ch D1+16ch CIF |
8ch D1+24ch CIF |
||
32ch CIF | |||||
encoding capacity |
8ch CIF |
8ch D1+8ch CIF |
8ch D1+8ch CIF |
||
Motion detection |
Area: 192(16 * 12)zone, Sensitivity optional |
||||
Audio |
Audio compression |
G.711a |
|||
Talk-back |
Support |
||||
|
Recording And Playback |
Recording mode |
manual >alarm>motion detect>timing |
|||
Local playback |
1-8ch synchronous playback (8*CIF @25fps) |
1-16 ch synchronous playback (8*D1+8*CIF@25fps) |
1-16 ch synchronous playback (8*D1+8*CIF@25fps) |
||
Recording look-up mode |
Time searching, calendar searching, affair searching, channel searching, information searching |
||||
|
Storage And Backup |
Hard disk capability for each channel |
Video:CIF:4~5G/day*ch,D1:16~20G/day*ch;960H:9~42G/day*ch 720P:10G~42G/day*ch;1080P:20G~80G/day*ch;audio:691.2M/day*ch |
|||
Recording storage |
Hard disk, network |
||||
Backup mode |
Network, USB,USB recording,SATA |
||||
Port |
Video Input |
24ch BNC (1.0Vp-p,75Ω) |
24ch BNC(1.0Vp-p,75Ω) |
32ch BNC(1.0Vp-p,75Ω) |
|
|
32ch BNC (1.0Vp-p,75Ω) | |||||
Video output |
2ch BNC(1.0Vp-p,75Ω),1ch VGA,1ch HDMI |
2ch BNC(1.0Vp-p,75Ω, 1ch Spot), 1ch VGA,1ch HDMI |
|||
|
2ch BNC(1.0Vp-p,75Ω, 1ch Spot), 1ch VGA,1ch HDMI | |||||
Loop |
No |
||||
Audio input |
16ch RCA(200-2800mV,30KΩ) |
||||
Audio output |
1ch RCA(200-3000mV,5KΩ) |
||||
Alarm input |
8ch |
16ch |
|||
Alarm output |
1ch |
4ch |
|||
Network |
RJ45 10M/100M adoptive Ethernet network port |
||||
PTZ control |
RS485,RS232; |
||||
USB |
2pcs USB |
||||
HDD |
2pcs SATA (each for Max.3TB) |
4pcs SATA(each for Max.3TB) |
|||
8pcs SATA(each for Max.3TB) | |||||
Wireles |
3G,WIFI |
||||
