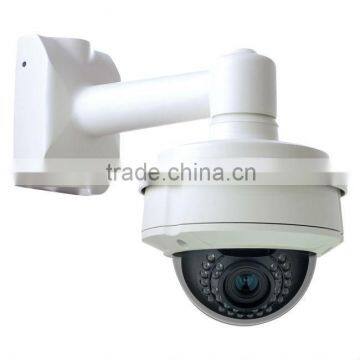

Help Center1/3"SONY Super HAD II CCD,600TVL Color Dome Camera
Related Products
-
HP-650IR-K80 Long Range LASER LEDs Bullet CameraUS$ 20 - 60MOQ: 1 Piece -
Vandal-resistant Dome Camera With EFFIO-P DSPNegotiableMOQ: 1 Piece
-
IR Bullet HD Camera 1/3 Sony CCD CameraUS$ 30 - 60MOQ: 1 Piece
-
HP-600IR-K IR Waterproof CameraUS$ 20 - 60MOQ: 1 Piece
-
HP-600IR-K60 Bullet Camera Night Vision CameraUS$ 20 - 60MOQ: 1 Piece
Highly Duable Vandal-resistant Dome Camera
Model NO.:HP-600VA-IR
Feature:
2D DNR (Digital Noise Reduction)
DWDR (Digital Wide Dynamic Range)
HLM (High Light Mask)
Smart IR Technology
Motion Detection, Privacy Zone Masking
AVP (Adjustable Video Parameters)
Technical Specification:
MODEL |
HP-600VA-IR |
||
VIDEO |
|
||
CCD sensor |
1/3-type Sony SUPER HAD II CCD, Powerful DSP |
||
Effective pixels |
NTSC:768H x 494V(380K Pixels) PAL:752H x 582V(440K Pixels) |
||
Signal system |
PAL/NTSC |
||
Synchronization |
External/Internal |
||
Shutter Speed |
PAL:1/50~1/100000/s; NTSC:1/60~1/100000/s |
||
Video output |
VBS 1.0 VPP(75OΩLoad) |
||
Video output |
BNC Output |
||
S/N |
More than 50dB (AGC OFF) |
||
Horizontal resolution |
600TVL(COLOR),650TVL(B/W) |
||
Low illumination |
Color:0.3Lux(F1.2,50IRE,AGC ON),D/N:0Lux(F1.2,50IRE,AGC ON,IR LEDs ON) |
||
D/N |
D/N Auto Converter IR CUT filter (with IR CUT function) Optional |
||
D/N switching method |
D/N controlled by CDS |
||
D/N switching time |
0~255 |
||
LENS & IR LEDS |
|
||
Lens amount |
4-9mm 2Megapixel IRIS lens Standard |
||
Lens type |
Vari-focal Lens (NOT c/cs amount) |
||
IR LEDs |
30pcs IR LEDs |
||
Smart IR |
Yes |
||
Infrared wavelength |
850nm |
||
IR distance |
25-30M |
||
IR LEDs ON/OFF |
CDS auto control |
||
OPERATIONAL |
|
||
OSD menu |
Yes, external adjustable |
||
DNR |
2D DNR |
||
Sens-up (DSS) |
N/C |
||
D-WDR |
Yes |
||
ATR |
N/C |
||
Backlight Compensation |
Auto/Manual |
||
Privacy Masking |
1~8 Areas |
||
Lens Shading Compensation |
0~255 adjustable |
||
High Light Mask |
Yes |
||
Privacy Masking |
1~8 |
||
Motion Detection |
4 Areas |
||
Smart IR |
Yes |
||
DIS (Digital Image Stabilizer) |
N/C |
||
E-Zoom |
N/C |
||
Color adaptive |
N/C |
||
Brightness |
0~255 |
||
White balance |
ATW/MANUAL/AWC/PUSH/AWC |
||
Mirror |
ON/OFF |
||
Title settings |
Yes |
||
Title location |
Selectable |
||
ENVIRONMENT |
|
||
Working temperature |
-10°C~+50°C(with heater:-40°C~+50°C) |
||
Working humidity |
20~80%(Non-condensing) |
||
Storage temperature |
-10°C~+60°C |
||
Storage humidity |
20~95%(Non-condensing) |
||
ELECTRICAL&MECHANICAL |
|
||
DC Type |
Power |
MAX. DC12V 700mA[8.5W](With Heater:DC12V 1.3A[16W]) |
|
Power supply |
DC12V 1.0A(With Heater:DC12V 1.5A) |
||
Dual Type |
Power |
MAX. DC12V 700mA[8.5W](With Heater:DC12V 1.3A[15W]) |
|
MAX. DC24V 650mA[16.0W] (With Heater:AC24V 950Ma[23W]) | |||
Power supply |
DC12V 1.0A (With Heater:DC12V 1.5A) |
||
AC12V 1.0A (With Heater:AC24V 1.5A) | |||
DWS |
Dual Windows Structure |
||
Bracket |
CTB(Cable Through Bracket),3- bracket(tilt, horizontal, pan) |
||
Weight |
0.8Kg |
||
