HP-630IR-N 630TVL 1/3" Sony SUPER HAD II CCD IR Bullet Camera

HP-630IR-N 630TVL 1/3" Sony SUPER HAD II CCD IR Bullet Camera thumbnail-1
HP-630IR-N 630TVL 1/3" Sony SUPER HAD II CCD IR Bullet Camera photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
COOP
Model Number:
HP-630IR-N
Contact Supplier Request Quote Chat Now
Coop Security Technology(Quanzhou)Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name COOP
Model Number HP-630IR-N
Type Analog Camera
Style Bullet Camera
Sensor CCD
Technology Infrared
Special Features Waterproof / Weatherproof

Model NO.:HP-630IR-N



HP-630IR-N 630TVL 1/3" Sony SUPER HAD II CCD IR Bullet cameraHP-630IR-N 630TVL 1/3" Sony SUPER HAD II CCD IR Bullet cameraHP-630IR-N 630TVL 1/3" Sony SUPER HAD II CCD IR Bullet camera



Features:



• Long Range Super-End IR Bullet Camera
• 2.8-12mm lens,42pcs IR LEDS,40M
• 630 Series: 1/3"SONY Super HAD II CCD,650TVL Color,700TVL B/W,D-WDR/OSD/3D-DNR/Sens-Up(X512)/Smart-IR/Motion Detection/Privacy Mask/High Light Mask
• Second Video Test, Waterproof IP66
• 3-Cable Built-in Bracke



Technical Specifications:

Model

HP-630IR-N

Imaging Sensor

1 / 3" SUPER HAD II CCD

Pixel

PAL:795(H) x 596(V);NTSC:811(H) x 508(V)

Signal System

PAL/ NTSC

Syn. System

Internal Synchronization

Shutter speed

PAL:1/50~1/100000s;NTSC:1/60~1/100000s

S/N Ratio

More than 50dB(AGC OFF)

Video Output

1.0Vp-p, 75 ohms BNC

Horizontal resolution

Color 650TVL, B/W 700TVL

Minimum Illumination

Color 0.1Lux(F1.2,50IRE,AGC ON),B/W:0.001Lux(F1.2,50IRE,AGC ON)

D/N Switch

Auto/Color/B/W/External Control

Brightness Switch

Color to B/W & B/W to Color for option

D/N Switching Time

0s~10s

Title setting

16 characters

Title Position

Any position on the Screen

Image Brightness

0~99 adjustable

AGC

Off/12db/24db/36db

OSD

English/Chinese

Led Light Wave

650nm/850nm

Strong Light Reversion

4 zones

Backlight Compensation

0~3 adjustable

PRIVACY

1~8 Zones

WDR

Digital WDR

Motion Detection

On / Off (multi-sensitivity settings, alarm time optional)

Alarm Display

track / Icon optional

AWB

Manual/Auto/Auto tracking/Lock

Sharpness

0~49 adjustable

GAMMA

0.3~1.0 adjustable

DPC

MDPC/ADPC

3D DNR

0~5 adjustable

Sense-Up

Off/x2/x4/x8/x16/x32/x64/x128/x256

RS-485 Remote control

Support

Communication Add.

1-254 optional

BPS baud rate

2400/9600/14400/19200/38400

Control Protocol

Pelco-D

Power Supply

DC12V/AC24V(optional)

Operation Temperature

-10C~+60C

Operation Humidity

20~80%

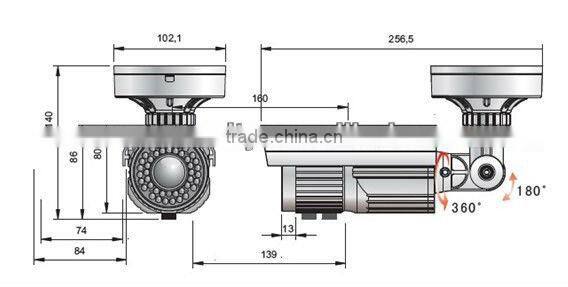

Dimension

HP-630IR-N 630TVL 1/3" Sony SUPER HAD II CCD IR Bullet cameraHP-630IR-N 630TVL 1/3" Sony SUPER HAD II CCD IR Bullet camera
