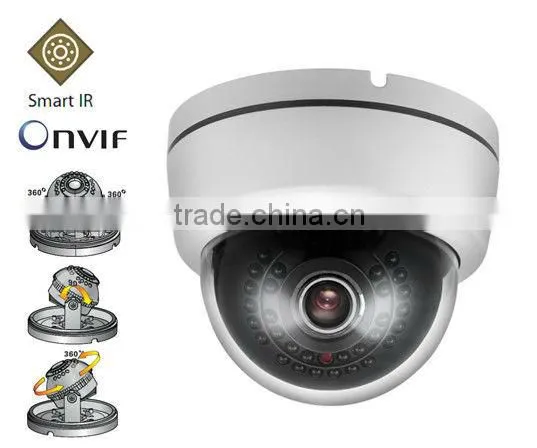

High Quality IR High Speed Dome Camera

Name: High Quality IR High Speed Dome Camera
Brand: COOP cctv camera
SKU: 103881249

US$ 30 - 60 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

COOP cctv camera

Model Number:

HP-630VG-IR Video Camera

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name COOP cctv camera

Model Number HP-630VG-IR Video Camera

Type Digital Camera

Style Dome Camera

Sensor CCD

Technology NetWork

Special Features Other, Waterproof / Weatherproof, Vandal-proof

Specifications

Ccd Camera
1)Image sensor:1/3" Color Sony/1/3" Super HAD II CCD /1/3" Effio-E CCD
2)Resolution:420 TVL /540 TVL/65

540TVL CCTV IR high speed dome camera

TECHNICAL SPECIFICATION:

Model
Imaging Sensor	1 / 3" SUPER HAD II CCD
Pixel	PAL:795(H) x 596(V);NTSC:811(H) x 508(V)
Signal System	PAL/ NTSC
Syn. System	Internal Synchronization
Shutter speed	PAL:1/50~1/100000s;NTSC:1/60~1/100000s
S/N Ratio	More than 50dB(AGC OFF)
Video Output	1.0Vp-p, 75 ohms BNC
Horizontal resolution	Color 630TVL, B/W 700TVL
Minimum Illumination	Color 0.1Lux (F1.2, 50IRE, AGC ON) B/W: 0.001Lux (F1.2, 50IRE, AGC ON)
D/N Switch	Auto/Color/B/W/External Control
Brightness Switch	Color to B/W & B/W to Color for option
D/N Switching Time	0s~10s
Title setting	16 characters
Title Position	Any position on the Screen
Image Brightness	0~99 adjustable
AGC	Off/12db/24db/36db
OSD	English/Chinese
Led Light Wave	650nm/850nm
Strong Light Reversion	4 zones
Backlight Compensation	0~3 adjustable
PRIVACY	1~8 Zones
WDR	Digital WDR
Motion Detection	On / Off (multi-sensitivity settings, alarm time optional)
Alarm Display	track / Icon optional
AWB	Manual/Auto/Auto tracking/Lock
Sharpness	0~49 adjustable
GAMMA	0.3~1.0 adjustable
