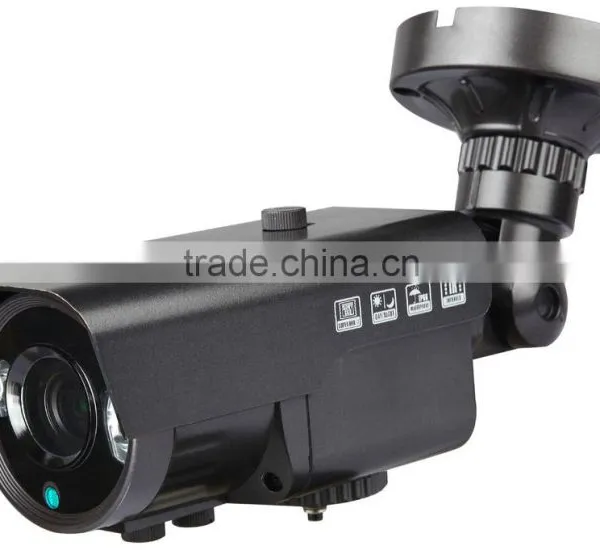

HP-650IR-K80S sony digital camera
Features
l 2DDNR(Digital Noise Reduction)
l HLC(High Light Compensation).ATR (Adaptive Tone Reproduction)
l Motion Detection, Privacy Masking, Smart IR
l Long Range Laser LED IR Bullet Camera
l 1/3” Sony 960H Exview CCD+SONY EFFIO-E DSP
l High Resolution 700TVL(Color), 780(B/W)
l 6-60mm Megapixel IRIS lens,12pcs Laser LEDS,IR Distance 80M
l Second Video Test, Waterproof IP67
l Dynamic 3- Cable Built-in Bracket(Table Mount, Wall Mount, Ceiling Mount)
Technical Specifications
Model NO |
HP-650IR-K80S |
||
Functions |
|
||
General |
CCD sensor |
1/3” Sony 960H Exview CCD+SONY EFFIO-E DSP |
|
Lens amount |
6-60mm Mega pixel IRIS lens |
||
Lens type |
Vari-focal Lens (not c/cs amount) |
||
Effective pixels |
NTSC:976(H)x494(V) (480K Pixels) PAL:976(H)x582(V) (570K Pixels) |
||
Signal systems |
PAL/NTSC |
||
Synchronization |
External/Internal |
||
Shutter Speed |
PAL:1/50~1/100000/s;NTSC:1/60~1/100000/s |
||
S/N |
More than 50dB(AGC OFF) |
||
Horizontal resolution |
700TVL(Color), 780(B/W) |
||
Low illumination |
Color: 0.3Lux(F1.2,50IRE,AGC ON),D/N:0Lux(F1.2,50IRE,AGC ON,IR LEDs ON) |
||
D/N |
D/N Auto Converter IR CUT filter Optional (with IR CUT function) |
||
D/N switching method |
D/N controlled by CDS |
||
D/N switching time |
000~255 |
||
Camera Body |
Size description |
Magnificent design |
|
DWS |
Dual windows structure |
||
Bracket |
CTB (Cable through bracket), 3- bracket(tilt, horizontal, pan) |
||
Body color |
STD: Metal gray, Ivory optional |
||
Waterproof rating |
IP66 |
||
OSD & Special functions |
OSD menu |
Yes, external adjustment |
|
DNR |
2DDNR |
||
ATR |
ATR-EX |
||
HLC |
Yes |
||
Gamma |
Yes |
||
Privacy Masking |
ON/OFF |
||
Motion Detection |
Yes |
||
Color tint |
Yes |
||
BLC |
Yes |
||
Color adaptive |
Yes |
||
Brightness |
0~255 |
||
White balance |
AWB,ATW,MWB |
||
Mirror |
ON/OFF |
||
Title settings |
Yes |
||
Title location |
Selectable |
||
IR LEDs |
IR LEDs |
12PCS Laser LEDs |
|
Smart IR |
Yes |
||
Infrared wavelength |
850nm |
||
IR distance |
80m |
||
IR LEDs ON/OFF |
CDS auto control |
||
Others(Approx.) |
Video output |
VBS 1.0 VPP(75ΩLoad) |
|
Video output |
BNC output |
||
DC Type |
Power |
MAX. DC12V 700mA[8.5W](With Heater: DC12V 1.3A[16W]) |
|
Power supply |
DC12V 1.0A (With Heater: DC12V 1.5A) |
||
Dual Type |
Power |
MAX. DC12V 700mA[8.5W](With Heater: DC12V 1.3A[15W]) |
|
MAX.AC24V 650mA[16.0W](With Heater: AC24V 950mA[23W]) | |||
Power supply |
DC12V 1.0A (With Heater: DC12V 1.5A) |
||
AC24V 1.0A (With Heater: AC24V 1.5A) | |||
Working temperature |
-100C~+500C (With heater: -400C~+500C) |
||
Working humidity |
20~80% (Non-condensing) |
||
Storage temperature |
-100C~+600C |
||
Storage humidity |
20~95%(Non-condensing) |
||
Camera Dimensions |
261mm(L)×83mm(W)×102mm(H) |
||
