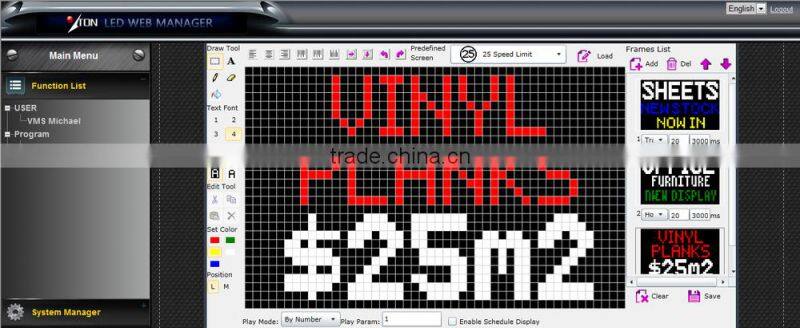

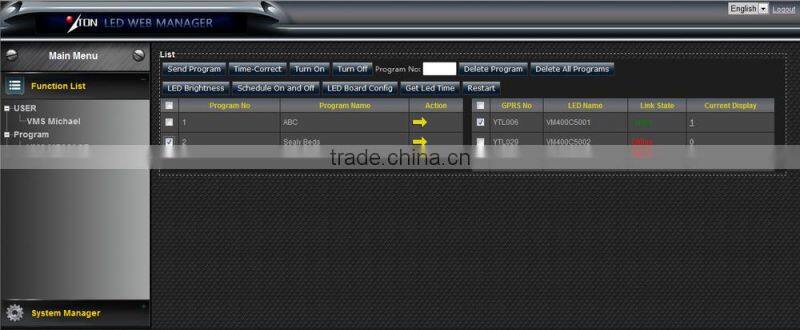

YONGTONG LED Web Manager is the latest technology in Global VMS communication,such as Australia, Qatar,Dubai, Brazil, United Kingdom,China and so on. By using 3G network, clients can program and manage its VMS from any internet enabled pc and mobile phone.
APPLICATIONS
|
Advanced warning to motorists of roadworks/conditions School, Pedestrian or Roadwork Zones Notification of road closures or detours Used with Radar to display traffic speed Promotion of Events, e.g Sporting, Festival Product Advertising, e.g Car Yard, Property Development |
FEATURES
|
Full Graphics Non Glare, UV resistant polycarbonate Highest Quality LED Solar Powered/Environmental Friendly Plug & Play controller and LED modules |
SPECIFICATIONS & TECHNICAL DATA
Display
Display Type |
LED Full Matrix |
Display Size |
2550mm x 1710mm |
Display Viewing Area |
2400mm x 1600mm |
Matrix |
48 x 28, 4 X 5mm LED per pixel (GREEN,RED,AMBER,WHITE,BLUE) |
Screen |
Non Glare UV polycarbonate |
Photocell auto dimming | |
Trailer
L X W X H |
3950 X 2050 X 2700MM (with draw bar, fender) |
Operating height |
3950mm |
Rotating degree for message panel |
360° |
Draw bar length |
A frame type 2200mm |
Trailer has the brake system for the message panel, so it can stop on the certain position | |
Four corner jack stands |
15 inch, 3000LBS |
Draw bar jack stand (with 6inch jockey wheel) |
2000LBS |
Coupler |
5000LBS, 50mm ball |
Wheel type |
14 inch |
Disc brake system for the wheel | |
Hydraulic function for operating message panel lift | |
Manual Hydraulic Backup | |
3mm alloy checker plate | |
Controller and Programming
PC for on site programming | |
Programming option |
USB-RS232 Serial direct connect or LED WEB Manager remote control & GPS tracking |
Windows Compliant Free automatic software updates | |
Predefined Images |
90 |
Radar |
Radar logging / remote removal, logging speed data / time traffic count |
Large Storage up to 100 individual messages with various page sizes | |
Power
Operating Voltage |
DC12V |
Solar Panel |
3 x 140 watt |
Battery |
12Volt, 3x200AH deep cycle |
Solar Controller |
30AMP |
Operation on batteries/solar Indefinite under normal conditions | |
