Specifications
led replacement neon tubes1) High lumen:1660-1700LM
2 ) CE&ROHS
3) High PF>0.9
4) Aluminum alloy heatsink
1.2m 18w T8 led replacement neon tubes
2014 New Design Specification
T8(Solution A): CE+High PF(>0.9)
| Item No. | Dimension | Material | LED | Power (W) | CCT (K) | Lumen ±10% (LM) | |
| CL-T806-9WA | D30*L600 | Aluminum PCB+PC Cover(Frosted/ Transparent/Striped) | Epistar SMD2835 | 9 | WW:3000-3200K NW:4000-4500K CW:6000-6500K | 830-860lm | |
| CL-T812-18WA | D30*L1200 | 18 | 1660-1700lm | ||||
| CL-T815-18WA | D30*L1500 | 23 | 2100-2180lm | ||||
T8(Solution B) :Super High efficiency 130LM/W+CE 6/13/16W available
| Item No. | Dimension | Material | LED | Power (W) | CCT (K) | Lumen ±10% (LM) | |
| CL-T806-6WB | D30*L600 | Aluminum PCB+PC Cover(Frosted/ Transparent/Striped) | Epistar SMD2835 | 6 | WW:3000-3200K NW:4000-4500K CW:6000-6500K | 760-780lm | |
| CL-T812-13WB | D30*L1200 | 18 | 1660-1690lm | ||||
| CL-T815-16WB | D30*L1500 | 16 | 2050-2080lm | ||||
Parameter
| Item no | CL-T812-18WA |
| Light Source | Epistar SMD2835 |
| Size | Length: 1200mm Diameter:T8:30mm, T10:32mm |
| Power | 18W |
| Input Voltage | AC 85-265V |
| Emitting color | Warm White,Nature White,Cool White |
| Color Temperature | WW:3000-3200K NW:4000-4500K CW:6000-6500K |
| Luminous Flux | 1660-1700LM |
| Light Efficiency | 90lm/W |
| CRI | >75 |
| Beam Angle | 120° |
| Life Span | 40,000 hrs |
| Certification | CE&RoHS |
| Warranty | 2 years |
| Application | Widely used in indoor lighting, living rooms, bedrooms, office, retail stores, supermarkets, schools,factories, |

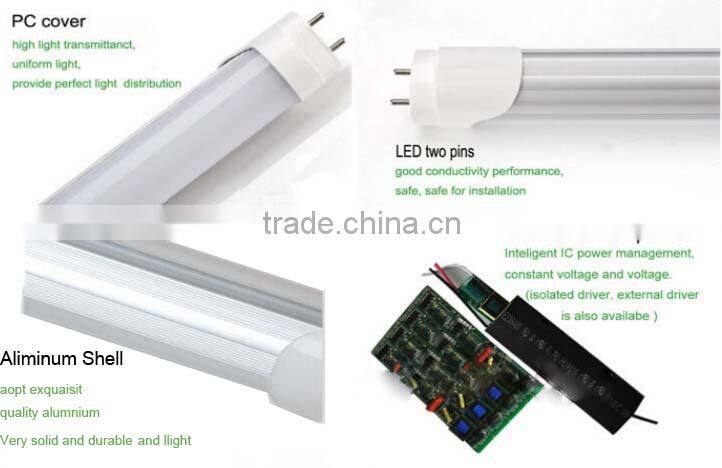

Feature: led replacement neon tubes
1. Epistar SMD2835 LED: higher brightness 20-24lm
2.PC cover: excellent transmittance and uniformity for light spread, no shadow
3. Heat conductivity of aluminum base is 2.8, excellent heat dissipation, long life guarantee.
4. Both milky(K) ,Frosted and transparent type(T) PC covers are available
5.Lowest decaying and long lifespan (<8% decaying after 6000hs aging)
6. Energy saving: 70% than Conventional fluorescent T8, 30% than common LED T
7. Perfect light effect: nice light distribution, no dark space, no glare, comfortable feeling for eyes86. Good 8.CRI>75
9. 2 years warranty &40000hS
10. CE ROHS Approved

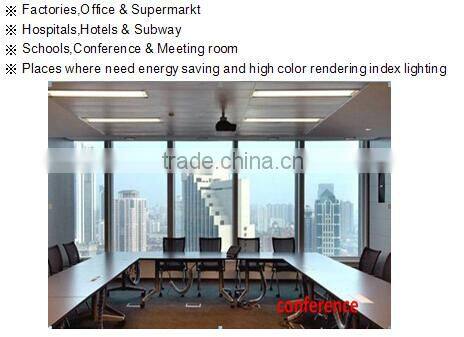

Application : led replacement neon tubes

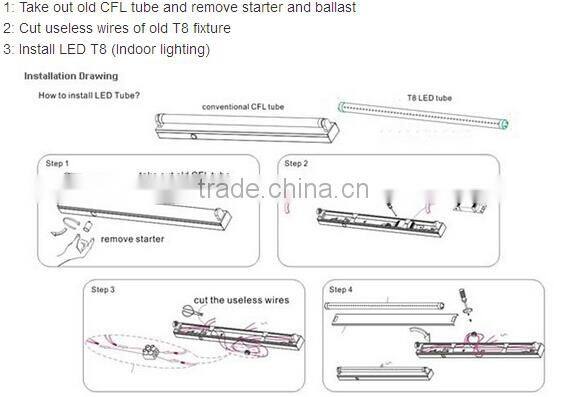

Installation: led replacement neon tubes
Packageing
1.One carton=25 pcs with pearly foam or color/white boxes
2.One carton = 25pcs
Shipping
We can let our partner shipping agent provide you the most economic DHL,Fedexpress and UPS
etc according to your demands.
Trade Terms
1.Payment: Samples or samll orders 100% payment advance by Paypal, Western Union, T/T
Mass order: T/T 30% advance 70% before shipping
2. Delivery time: Samples/small orders 3-5days Mass order: 7-12days
About us
1: 7-year manufacturer of LED lighting
2:LED Source from US(Cree/Semi), Korea(Samsung), Taiwan(Lumenmax,Epistar,Everylight),
3.Capacitor for driver from China top supplier BERYL
4: Most products close to US Energy Star standard: Lumen maintance ≥91.8% after 6000hs aging testing
5: 70% LED lamp CRI>80
6: 40000hs,2 years warranty
7: CE(EMC&LVD)&RoHS approved
Product show
Color temperature
