Best price panel cutting atc cnc router with servo motor
Best price panel cutting atc cnc router with servo motor has high strength lathe structure ensure cutting more stable,processing tidily and smooth edge without saw .cnc router is designed for wooden door, panel furniture, solid wood furniture, kitchen cabinet and so on.
cnc router specification:
Product name |
Best price panel cutting atc cnc router with servo motor |
X,Y,Z,B Traveling |
1300*2500*250mm |
Table |
Vacuum and T-slot Combined Table |
Frame |
Welded Structure |
X,Y,Z Drive System |
X,Y Helical rack and pinion, Z Ball screw |
Max Rapid |
60000mm/min |
Max Working Speed |
25000mm/min |
Spindle Power |
9.0KW |
Spindle Speed |
0-24000RPM |
Driving System |
Yaskawa Servo Motors |
Working Voltage |
AC380V, 50/60 Hz, 3Ph |
Commend Language |
G code |
Operating Syestem |
Syntec Control |
Software |
UG, Power Mill, Artcame , Type 3 |
Net Weight |
3500KG |
Options |
Vacuum pump |

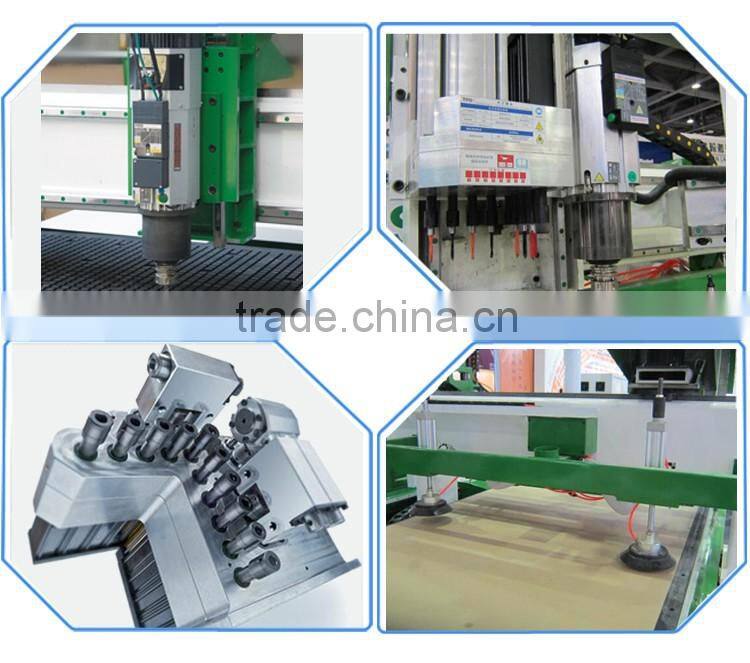

cnc router detail:
cnc router features:
All IN ONE STEP-Automatic loading, cutting, drilling, slotting, automatic offloading
Saving time & labor, replace CAD draftsman, splitting man, cutting man, only need 8 min to input size & design & split.
Automatic layout optimization, improve material utilization.
ERROR-FREE & NO HUMAN INTERVENTION
Automatic design, automatic typesetting, automatic labeling
Automatic scissor lift table with three ton load bearing capacity for full bundles of panel materials.
cnc cutting machine can be equipped with fully automated loading and off-loading systems.Dust gate to remove any dust and debris from the bottom of the processed sheet.
Automatic conveyor table for the off-loading of finished parts

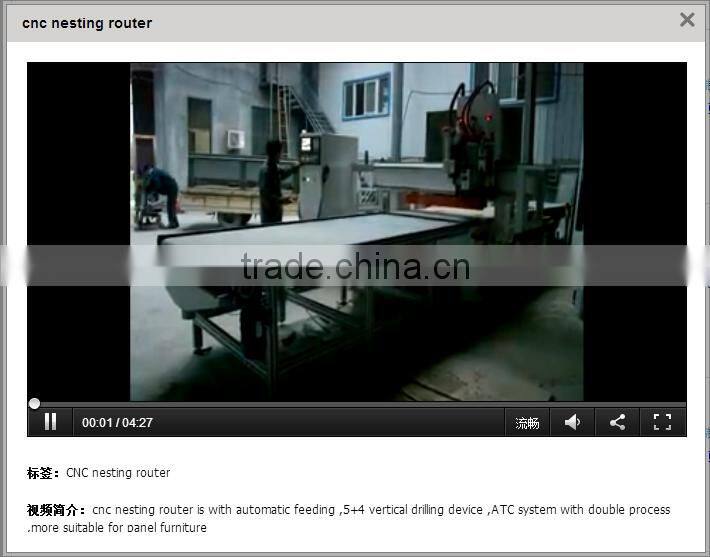

Automatic loading and off-loading system
The Suction Cup Loading Device and Integrated Vacuum Cleaning System is standard on the Full Line CNC Router. The Integrated Vacuum Cleaning System ensures that all dust and debris is removed from the machine table prior to loading the next sheet. The industrial strength vacuum cups will load and position sheet material onto the table top without scratching the surfaces and aligns them perfectly against the pop up pins.
Automatic labeling system
A popular option to add to the nesting line is the automatic label printer. Through its stand alone software and controller, the label printer is effective at reducing the amount of cycle time needed by completing the application of labels before the panel is cut.
cnc router application:
1.Furniture industry: wooden doors, cabinet doors, board, office, solid wood furniture.
2.Other wood products industry: speakers, game consoles cabinets, computer tables, sewing machine table, musical instruments, etc.
3.Board processing industry: insulation piece, plastic chemical products; PCB; fast train inside body, bowling tracks, stairs; compact grade laminate, epoxy resin, ABS, PP, PE and other cementitious mixtures’s milling process
4.Decoration industry: folding screen, wave plates, large wall, advertising boards, signs and logo’s processing.
Other main products
1.we are professional manufacturer of cnc router
2.we have professional technical team
3.we have strictly inspection instrument ,ensuring each machine qualified before leaving factory
4.we have good after-sale service team,we will solve all problems within 24 hours on internet and tel
5.we will free training to make sure u know how to operate cnc router
Guarantee & Aftersales Service:
1.Guarantee the Best price panel cutting atc cnc router with servo motor for one year.
2.We can design the panel cutting cnc router as your requirement.
3.User-friendly English manual for cnc router using and maintaining.
4.Providing low price and high quality cnc router for customers.
FAQ:
Q1.How to get the most suitable machine and best price.
Please tell us the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets, hotel and meal.
Q4.How about your after-sales service?
We offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
One year .If you have any questions during this time,we will solve it for free.
