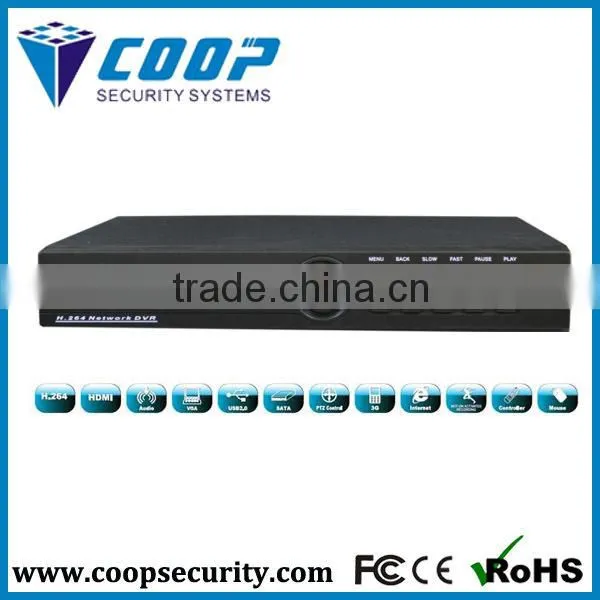

DVR 4CH free CMS SDK H.264 VGA HDMI Full HD 1080P Megapixel HD DVR
HD DVR Feature:
Support AHD-M serial real-time encoding;
Support Web Browser ( IE, Chrome, Firefox, Safari)
Support more than 20 languages ( English, Finch, French, German, Greece, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thailand, Chinese, Turkish, etc.)
Support VGA, HDMI Full HD 1080P output.
Support multi technology, network, Alarm alert to mobile phone, etc.
Support smart phones surveillance ( iPhone, Android Windows Mobile, BlackBerry, Symbian).
Perfect circuit protection, peculiar triple watchdog function.
Free web, CMS central platform management software MYEYE, providing SDK development.
H.264 4CH DVR Specification:
System |
Main processer |
Hisilicon 3521 |
Video |
Encode |
H.264(High Profile); |
Coding capacity |
4*720P@25fps |
|
Decoding capacity |
4*720P@25fps |
|
Multi-mode input |
Analog: 4*720P (analog); 4*AHD-L (analog); Hybrid: 4*720P@12fps(analog) +2*720P (network). Network: 2*1080P (network) + 2*720P (network); 8*720P(network); 20*960H(network) |
|
Audio |
Audio compression |
G.711A |
Talk-back |
Support |
|
Recording & playback |
Recording mode |
Manual> Alarm> Motion Detection>Timing |
Local playback |
4*720P@25fps |
|
Storage & Backup |
Hard disk capability for each channel |
720P 20G/day; 960H 12~20G/day*channel; Audio: 691.2M/day*channel |
Backup mode |
Network backup, USB Hard Disk, USB recording, SATA recording. |
|
Port |
Video input |
4ch BNC |
Video output |
1CH VGA, 1CH HDMI |
|
Audio input |
4CH RCA |
|
Audio output |
1CH RCA |
|
Alarm input |
N/A |
|
Alarm output |
N/A |
|
Network |
RJ45 10M/100M adaptive Ethernet network port |
|
PTZ control |
1 RS485; Support PTZ Controls |
|
USB |
2x USB ports |
|
HDD |
2 SATA ports (each max supports 4T) |
|
Wireless port |
3G, WIFI (USB extension) |
|
Others |
Power |
12V/3A |
Size |
310mm(L)*245mm(W)*48mm(H) |
