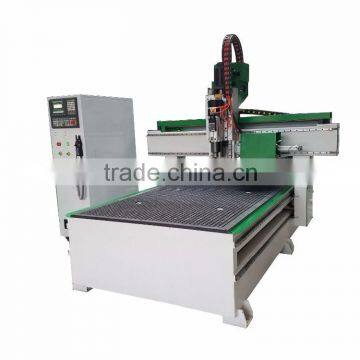

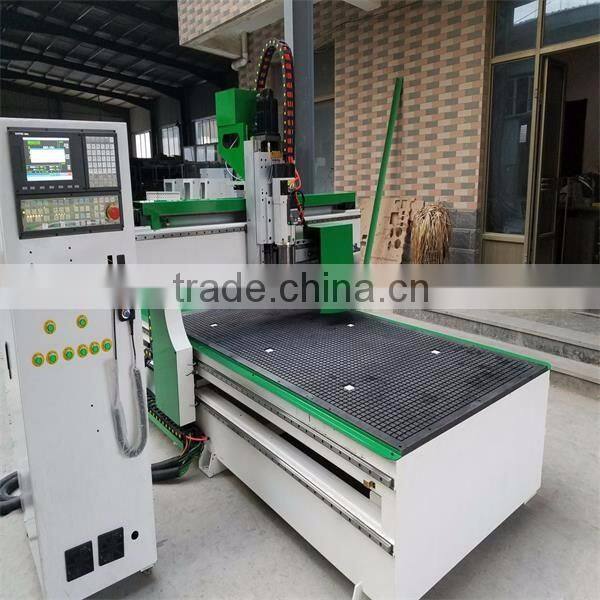

Good price high speed automatic 3d wood carving cnc router
FEATURES:
1..Structure: strong machine body with 8mm thickness square pipe.
2..3 axis TBI ball screw ,which can gurantee high precision
3 JAPAN YASKAWA SERVO
4.TAIWAN SYNTEC CONTROL SYSTEM

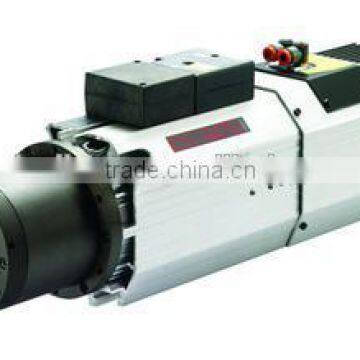

5.ITALY HSD 9KW spindle
6.8 tool stock for ATC
7.it can be widly used in woodworking industry .
PARAMETER
| X,Y,Z Working Area | 1300x2500x200mm(opitional other model) |
| X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
| X,Y,Z Repositioning Accuracy | ±0.05mm |
| Table Surface | Vacuum table |
| Frame | Square pipe Welded Structure |
| X, Y axis transmission | TBI ball screw |
| Z transmission | TBI ball screw |
| Max. traveling speed | 60000mm/min |
| Max. Working Speed | 55000mm/min |
| Rail Configuration | HIWIN 25 RAIL |
| Spindle Power | ITALY HSD 9KW |
| Spindle rotationg Speed | 0-24000RPM |
| Drive Motors | YASKAWA servo |
| Working Voltage | AC380V/50Hz,3PH (Optional: AC220V/50HZ) |
| Operating System | taiwan syntec control system |
| Tool magazine | 8 tools in stock |
Main application:
Furniture industry: wooden doors, cabinet doors, board, office, solid wood furniture
Other wood products industry: speakers, game consoles cabinets, computer tables, sewing machine table, musical instruments, etc.
Board processing industry: insulation piece, plastic chemical products; PCB; fast train inside body, bowling tracks, stairs; compact grade laminate, epoxy resin, ABS, PP, PE and other cementitious mixtures’s milling process
Decoration industry: folding screen, wave plates, large wall, advertising boards, signs and logo’s processing.

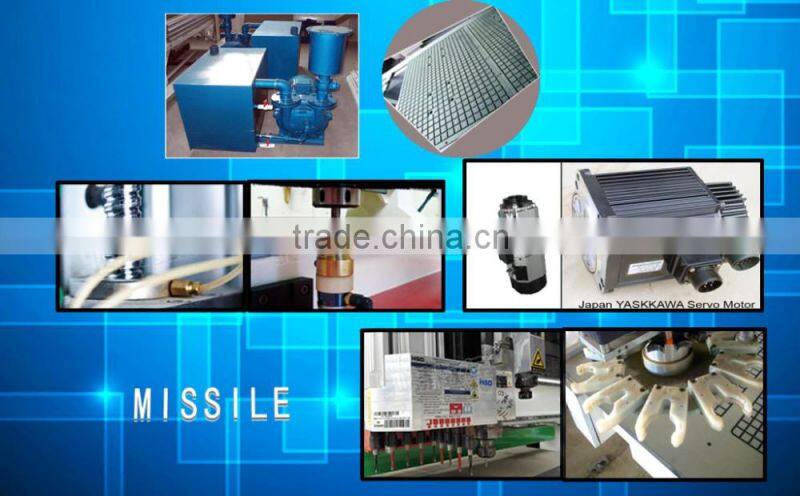

SAMPLE PICTURE
Our Services
Guarantee & Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
FAQ
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us? Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
