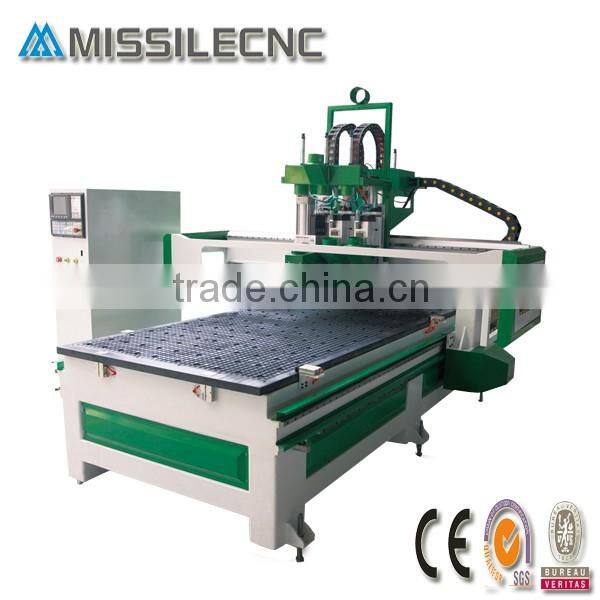

china jinan missile atc wood cnc router machine
If you are looking for a machine for nested-based manufacturing but your choices are
limited by budget, then this MISSILE-NBM02 NESTING will be your perfect investment for great growth.
quality means you can spend less money but get bigger value in one compact package.

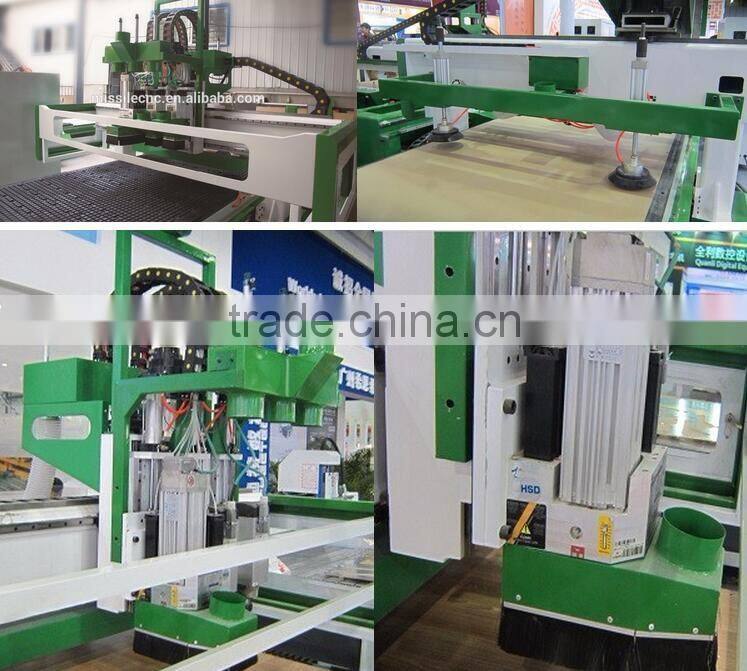

Equipped with two spindles, this machine allows you to carry out cutting and grooving without
having to change tools. It also carries a drill bank that will give you the versatility for your work.
2.When combined with Cabinet Vision Advanced to optimize the machining process, this machine

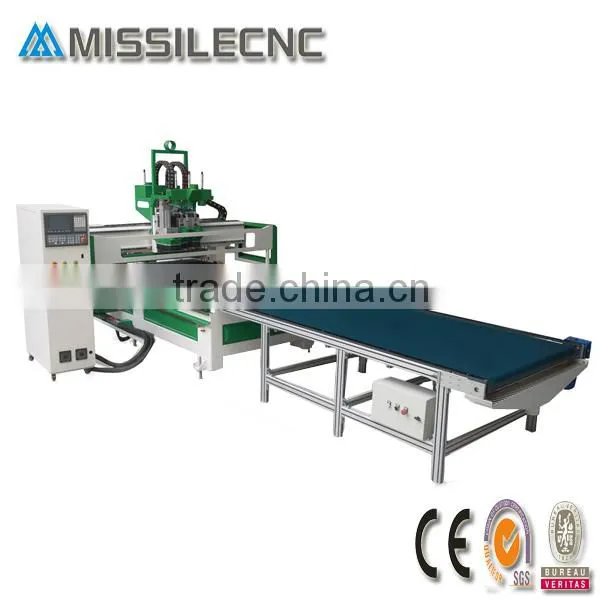

3.This machine comes with a pusher/sweeper that pushes the worked pieces off of the main work table and cleans the surface at the same time, which allows the operator to remove the pieces with ease and dramatically reduces down time.
3. Can be used as a stand-alone solution or part of the automatic panel furniture production cell—choose from our range of processing centers to lift your game and remain competitive.
4. Option: Automatic loading system
Parameter:
X,Y,Z Working Area |
1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy |
±0.05MM |
X,Y,Z Repositioning Accuracy |
±0.05mm |
Table Surface |
Vacuum table |
Frame |
Heavy duty frame welded structure |
X, Y axis transmission |
Rack and Pinion gear |
Z transmission |
Ball Screw |
MAX traving speed |
80000mm/min |
Max. Working Speed |
25000mm/min |
Rail Configuration |
25 square rail |
Spindle Power |
Air-cooling 4.5KW*2 Sets |
Spindle rotationg Speed |
18000RPM |
Drive Motors |
JAPAN YASKAWA servo |
Working Voltage |
AC380V/50Hz,3PH |
Operating System |
TAIWAN SYNTEC SYSTEM |
Computer Interface |
USB |
Command Language |
G code, u00, mmg, PLT, HPG |
Software Compatibility |
Type3,Wentai,Artcut (Option: ) |
Packing and Size |
Wooden case |
N.W. |
3500KG |
Application:
MISSILE nested based cnc router is a completely automated production cell for nested based manufacturing. It is widely used for panel furniture manufacturer, with cutting, grooving, drilling and engraving.
