2014 New Products Outdoor IR Waterproof Analog HD Megapixel 960P AHD Camera

2014 New Products Outdoor IR Waterproof Analog HD Megapixel 960P AHD Camera thumbnail-1
2014 New Products Outdoor IR Waterproof Analog HD Megapixel 960P AHD Camera photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
COOP Security
Model Number:
AHD-W960M2
Contact Supplier Request Quote Chat Now
Coop Security Technology(Quanzhou)Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name COOP Security
Model Number AHD-W960M2
Type Digital Camera
Style Bullet Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof

Specifications

CCTV System Newest AHD camera
3.6mm lens. 24 IR LEDs.
1.3MP 960P, IR Cut, IP66 Waterproof
Logo can be customized.
OEM & ODM



Product Description

 2014 New Products Outdoor IR Waterproof Analog HD Megapixel 960P AHD Camera



AHD Camera Features

1/3" HDIS 960P with IR CUT
chipset: (AHD2430+SONY 238)

'* IR distance 20-25M  * 24pcs Ø5mm black IR leds
* STD:  3.6mm,6mm optional
* DWS, no DFIR and fog   * Hidden cable bracket
* White/Grey case   * With OSD menu





AHD Camera Data Sheet:


Chipset 1/3" SONY IMX238 CMOS  + AHD2430
Effective  Pixels 1280(H)  X 1024(V)  1.30M
Signal System NTSC/PAL(1280X576)
Horizontal Resolutio 1000TVL
Min. Illumination 0.02 Lux / F1.0 , B/W: 0 Lux / F1.0 (With IR )
S/N Ratio >52dB (AGC OFF)
Electronic Shutter Auto : 1/25(30)~1/50,000
Lens   3.6mm / 6mm
Exposure Auto (X2,X4,X6,X8,X15,X20,X25,X30(Optional)
3D-Digital Noise Reduction Low/ medium/ high
2D--Digital Noise Reduction Low/ medium/ high
 OpticalFogReduction Auto / Manual
D-WDR On / Off
White Balance Auto/AWB /AWC->SET
Gain Control 0-15
D/N Switch Auto/Color/B&W/EXT
Motion Detection 4 Areas(alarm system)
Mirror / Reverse 4 Areas
Image brightness 0-100
Image sharp contrast Auto / Manual
color Saturation Auto / Manual
OSD Languages English// Chinese/Russian/Spain/Italy/Turkey/polish
/Portuguese/German/Netherlands
Synchronization System Internal
Video Output AHD 1.0Vp-p / 75Ohms(Lightning and static electricity protection)
Input Voltage DC 12V ( 6~23V)
Power Consumption 85mA
Operating Temperature  -10 °C to +50 °C ( 14 °F to 122 °F )
Operating Humidity  20 to 80 %
Storage Temperature  -40 °C to +60 °C ( -40 °F to 140 °F )
Storage Humidity  20 to 95 %
Dimension 38x 38 mm



Note: techncial specification are subject to change without notice.

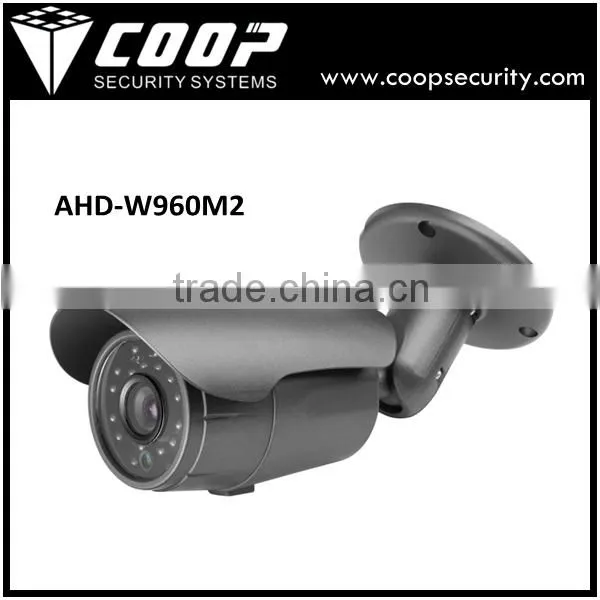

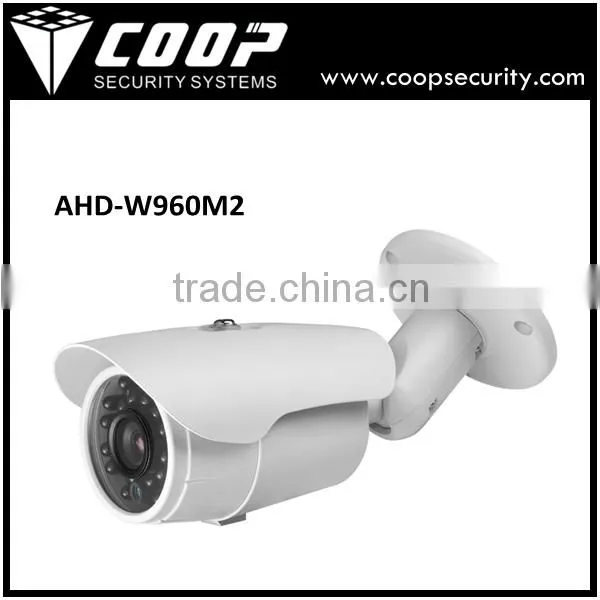

 AHD Camera IMAGES


2014 New Products Outdoor IR Waterproof Analog HD Megapixel 960P AHD Camera

2014 New Products Outdoor IR Waterproof Analog HD Megapixel 960P AHD Camera








Packaging & Shipping



Usual Packing: 1PCS to 1 box. 36 boxes to 1 carton. Or as your requirement.

Shipping Term: For small order, shipping by DHL/ FedEx/ UPS/ TNT, For large order by Air or by Sea.





Our Services



1. Sample order is highly welcomed.

2  Your LOGO can be puttted on cameras.

2. Model Number can be customized.

3. Welcome OEM & ODM order, MOQ for OEM is 50pcs/model.

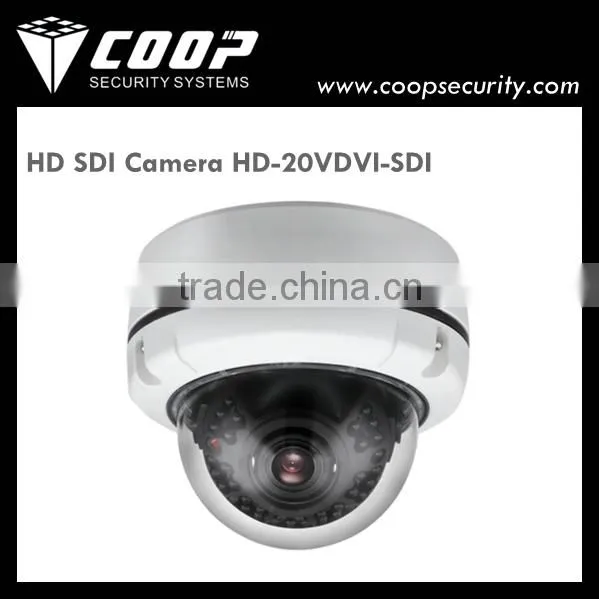

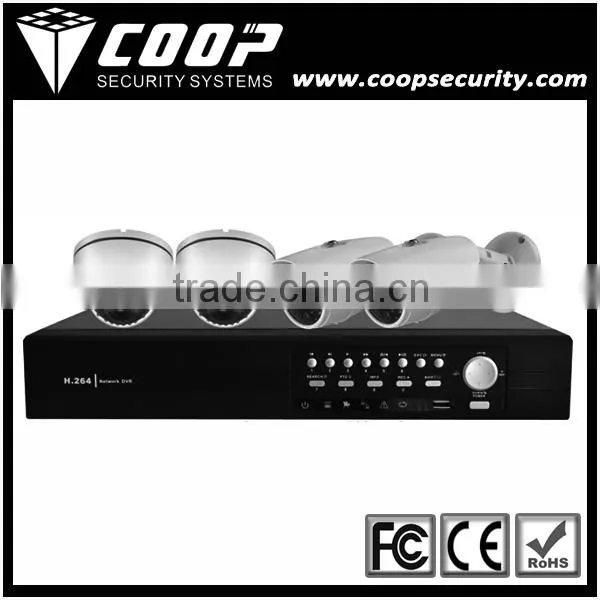

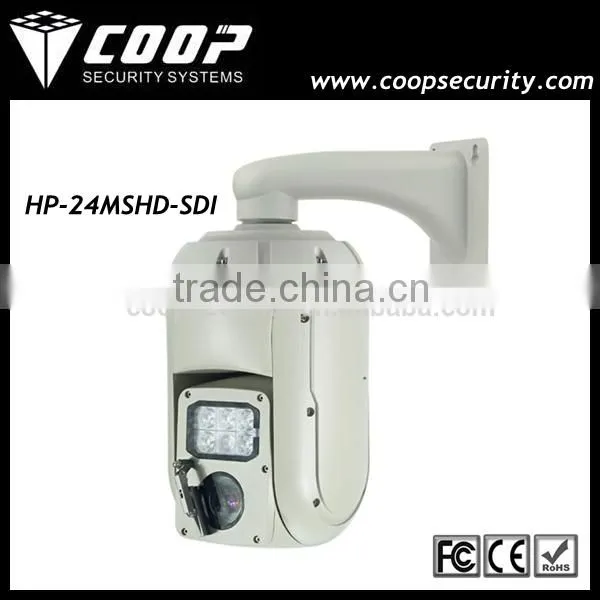

 More Products  similar to AHD camera

2014 New Products Outdoor IR Waterproof Analog HD Megapixel 960P AHD Camera2014 New Products Outdoor IR Waterproof Analog HD Megapixel 960P AHD Camera2014 New Products Outdoor IR Waterproof Analog HD Megapixel 960P AHD Camera

2014 New Products Outdoor IR Waterproof Analog HD Megapixel 960P AHD Camera2014 New Products Outdoor IR Waterproof Analog HD Megapixel 960P AHD Camera2014 New Products Outdoor IR Waterproof Analog HD Megapixel 960P AHD Camera









Company Information







2014 New Products Outdoor IR Waterproof Analog HD Megapixel 960P AHD Camera


2014 New Products Outdoor IR Waterproof Analog HD Megapixel 960P AHD Camera



FAQ



Q. What's the MOQ for this item?

A. MOQ 1pcs. Sample order is welcome.



Q. What's the payment term?

A. We accept payment by T/T bank transfer, PayPal, or WesterUnion.



Q. What's the delivery time?

A. Usually in 7-10 workdays after payment received.



Q. What's your detailed warranty policy?

A. Please kindly refer to our webiste for related information:  /Warranty.html
