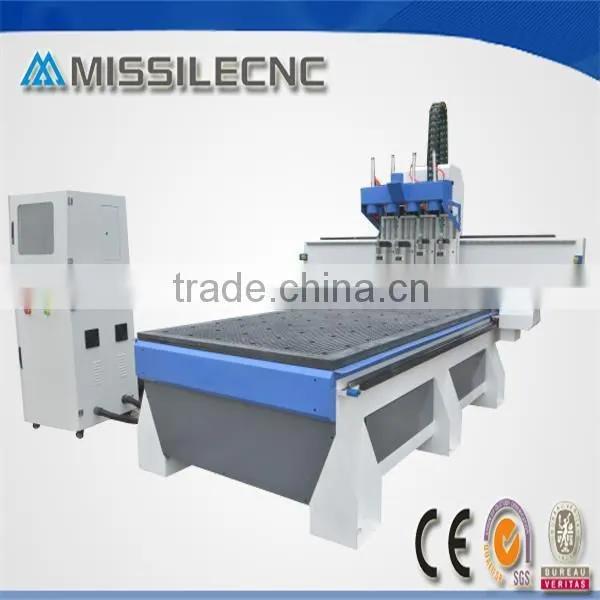

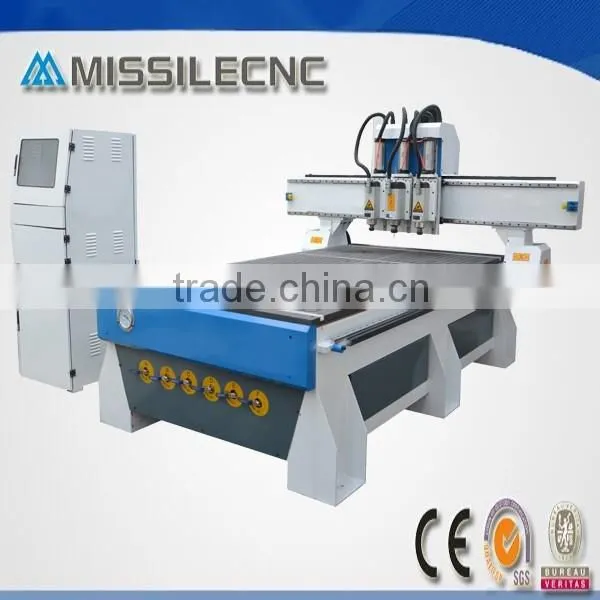

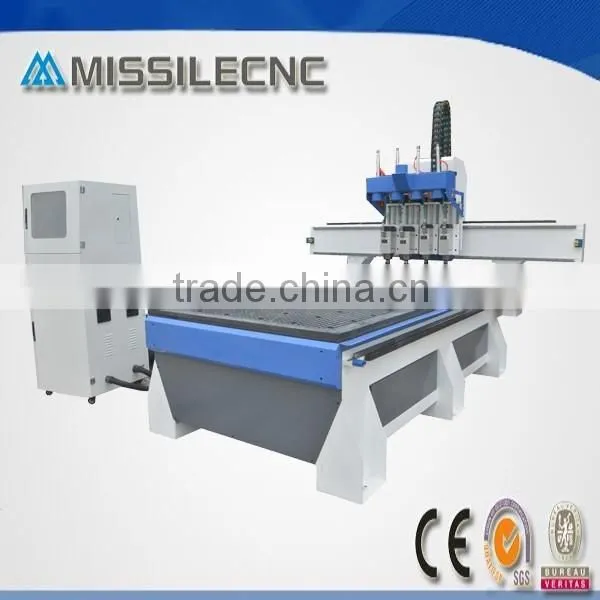

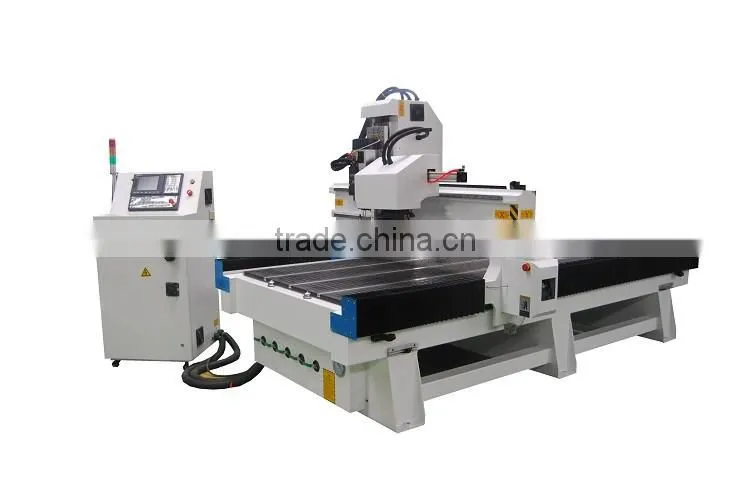

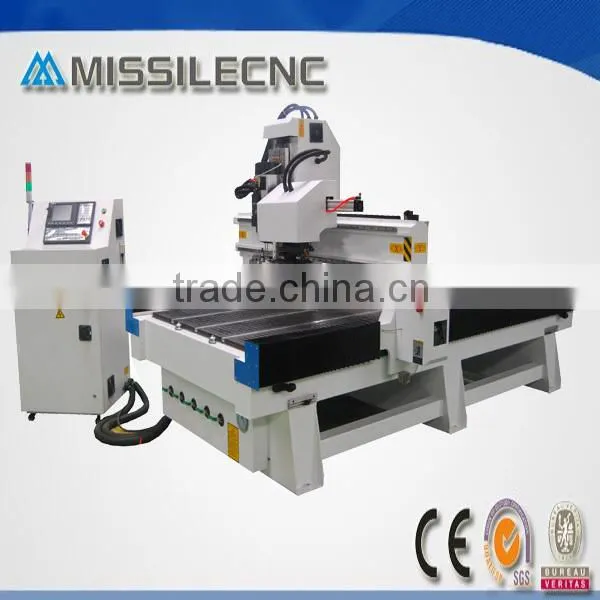

Chinese atc tool change spindle cnc router machinery
We have big wood cnc router models(1300x2500mm, 1500x3000mm, 2000x3000mm, 2000x4000mm,etc.) & small advertising cnc router models(300x400mm, 400x400mm,600x900mm,1200x1200mm,1200x1800mm), we also can customize any models according to your requested working area.
2-4 tool changed cnc router specification:
Description |
Parameter |
X,Y,Z Working Area |
1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy |
±0.05mm |
X,Y,Z Repositioning Accuracy |
±0.05mm |
Table Surface |
Vacuum table(Option: aluminum T-slot Table) |
Vacuum Pump |
5.5KW(Option:7.5KW) |
Frame |
Square pipe Welded Structure |
X, Y axis transmission |
Rack and Pinion gear, |
Z transmission |
Ball Screw |
Max.Traveling speed |
25000mm/min |
Max. Working Speed |
15000mm/min |
Rail Configuration |
20 square rail (opitioinal 25 square rail) |
Spindle Power |
air-cooling 3.5KW*2 |
Spindle rotationg Speed |
0-18000RPM |
Drive Motors |
Stepper System(Opitional servo) |
Working Voltage |
AC380V/50Hz/3PH |
Operating System |
Ncstudio system(Option: DSP) |
Command Language |
G code, u00, mmg, PLT, HPG |
Software Compatibility |
Type3 or Wentai (ArtCUT), or ArtCAM software |
Packing and Size |
Wooden case,L3200mmW2000mmH1900mm |
N.W. |
1400KG |

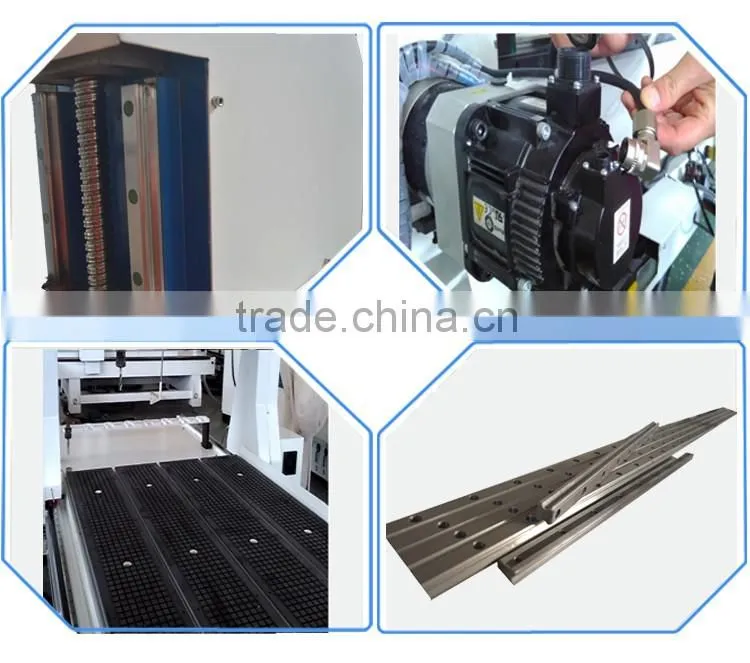

2-4 tool changed cnc router detail:
2-4 tool changed cnc router features:

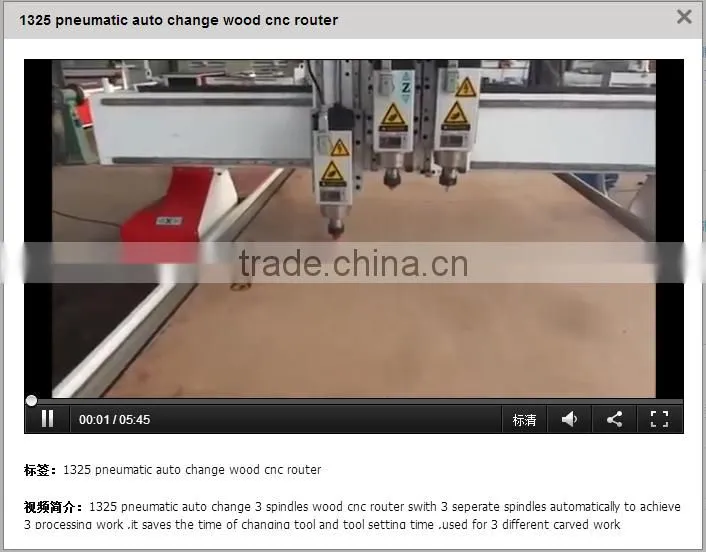

Our 2-4 tool changed cnc wood router WTC02/03/04, used for 2-4 different carved, is designed for panel furniture processing.
1300*2500*200mm effective work area(can be customized)
300mm diameter rotary device/4th axis for option(can process the cylinder materials)
3.5KW Air cooled spindle
NC-studio control system, with computer control
Taiwan TE 25 square linear guide
helical rack transmission for X,Y axis, powerful and stable
Taiwan TBI ballscrew transmission for Z axis, most accurate precision
vacuum and T-slot working table
water mist cooling sprayer for option(for metal working)
manual lubrication system
tool sensor calibration
Japan OMRON limit switch
high soft sheild cable, highly flexible, fire resistant
2-4 tool changed cnc router application:
Furniture industry: wooden doors, cabinet doors, board, office, solid wood furniture
Other wood products industry: speakers, game consoles cabinets, computer tables, sewing machine table, musical instruments, etc.
Board processing industry: insulation piece, plastic chemical products; PCB; fast train inside body, bowling tracks, stairs; compact grade laminate, epoxy resin, ABS, PP, PE and other cementitious
mixtures’s milling process
Decoration industry: folding screen, wave plates, large wall, advertising boards, signs and logo’s processing.
FAQ:
Q1.How to get the most suitable machine and best price.
Please tell us the material you want to working on ? How to working on it ? Engraving ? Cutting ? Or other ? What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2.Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets, hotel and meal.
Q4.How about your after-sales service?
We offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
One year .If you have any questions during this time,we will solve it for free.
