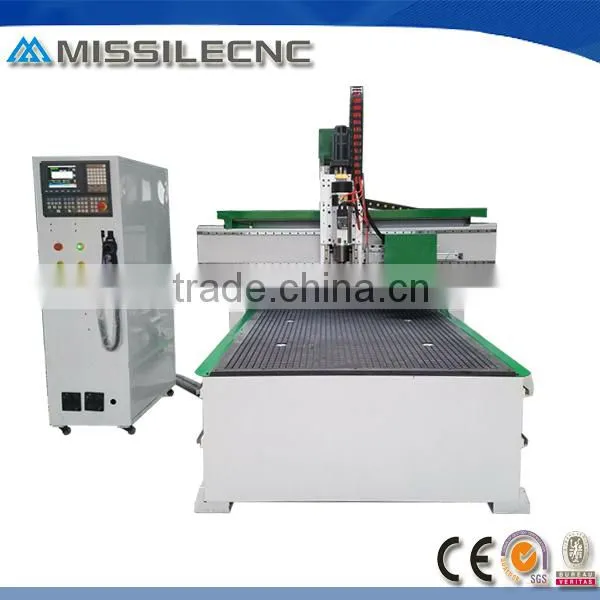

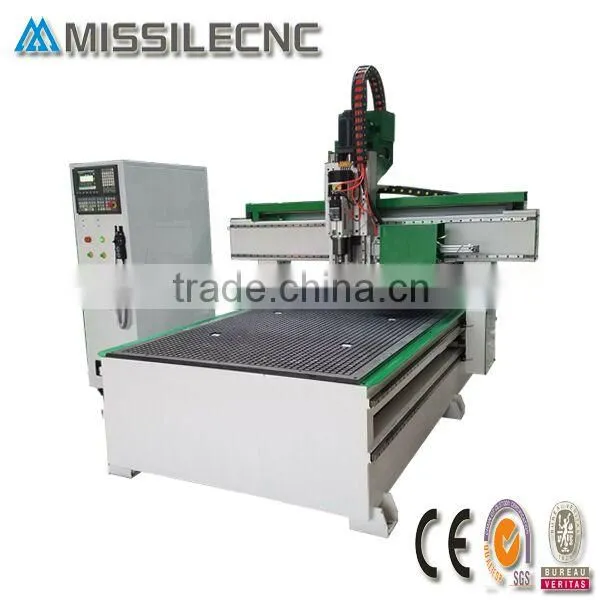

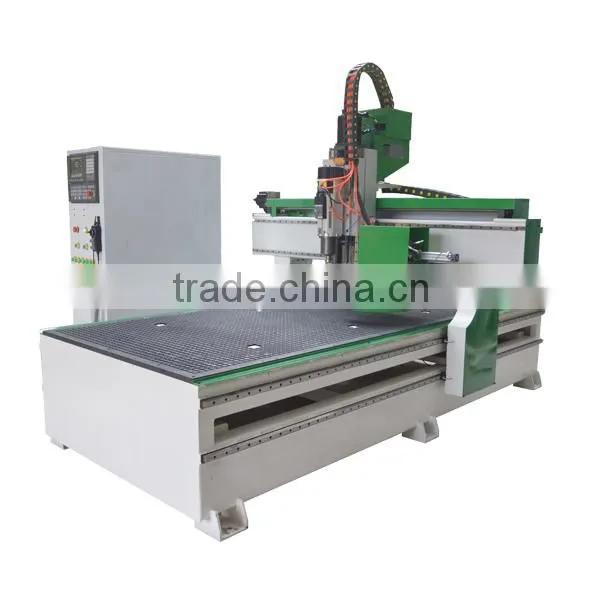

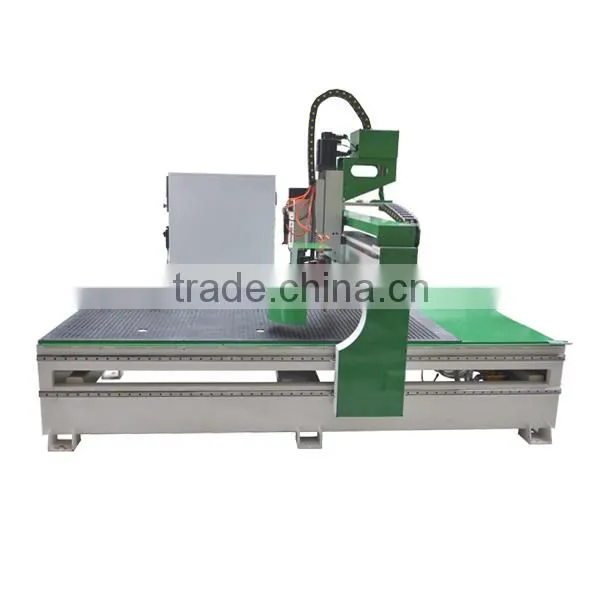

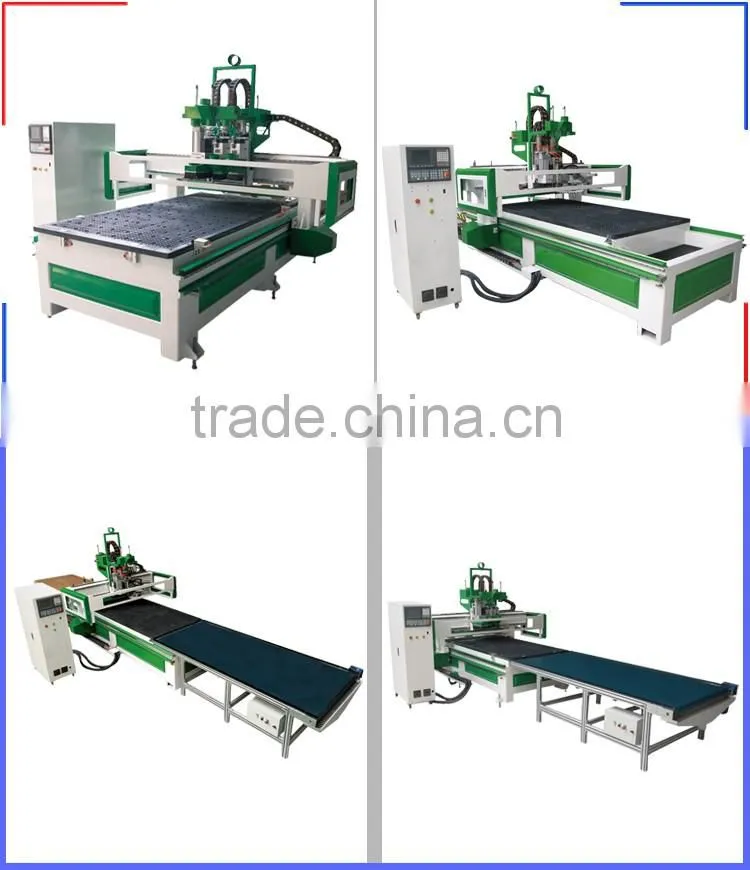

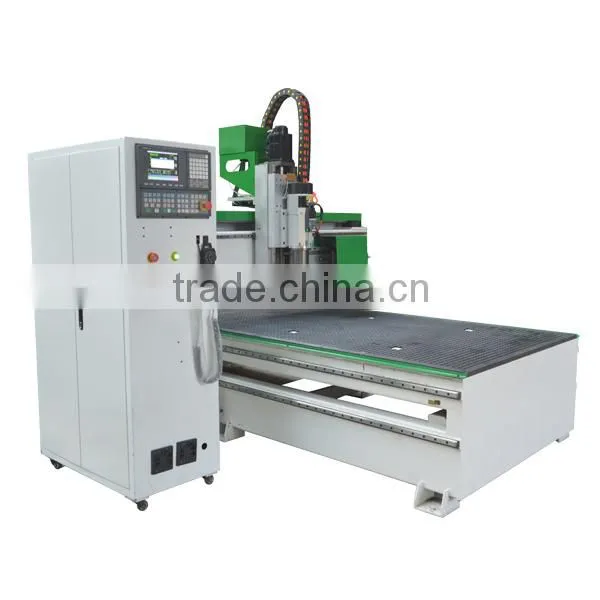

high speed automatic 3d cnc wood carving router
Product description:
Our MISSILE-1325HP02 is designed for kinds of wood working. High speed cnc wood carving router is used to process furniture, insulation power station, high speed train industry, advertising industries. And 1325HP02 3d cnc wood carving router is also suitable for processing wood furniture, engineering plastic, compound material, acrylic and other non-metal materials. This automatic cnc wood carving router integrate with auto tool changer carousel magazine, for mass production and kinds of patterns. We have cnc wood carving router machine with 200 sets storage capacity each month. And our cnc wood carving router have passed BV&CE certification.
Parameters
Travelling Size |
1350*2600*300mm |
1320*2540*300mm |
Max. Working size |
1250*2500*200mm |
1220*2440*200mm |
Table Size |
1250*2500mm |
1220*2440mm |
Table Structure |
Double-Layer Compact Vacuum Table |
|
Transmission |
3 axis Ball Screw |
|
Spindle Power |
9.0kw |
|
Spindle Speed |
24000r/min |
|
Travelling Speed |
35m/min |
|
Max.Working Speed |
15m/min |
|
Tool Magazine |
Carousel 8 Tools |
|
Driving System |
Yaskawa |
|
Controller |
Syntec |
|
Voltage |
AC380/3PH/50HZ |
|
Features
Our MISSILE-1325HP02 cnc wood carving router is extremely heavy duty work center with Taiwan carousel tool magazine that features high speed precision positioning.

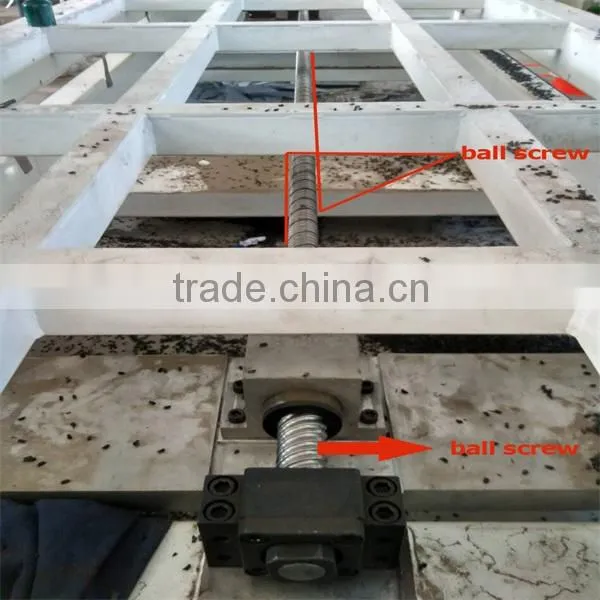

1. Featuring Italian auto tool changing spindle, Taiwan ball screw, Japanese servo driving system and planetary gear reducer that result in extra fine fininshing even on the most demanding applications.
2. Double-layer vacuum table is more effective in absorbing. The whole table has 128 holes, which offers greater flexibility when it comes to workpiece size and working zones.
3. Versatile functions--engraving, milling, cutting, etc.

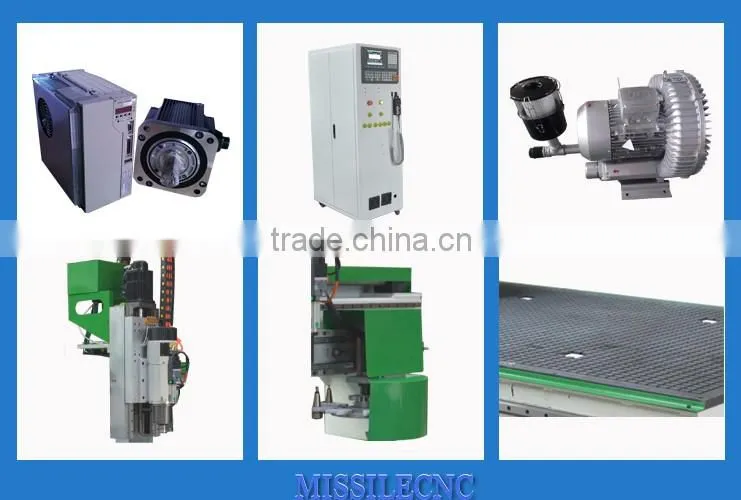

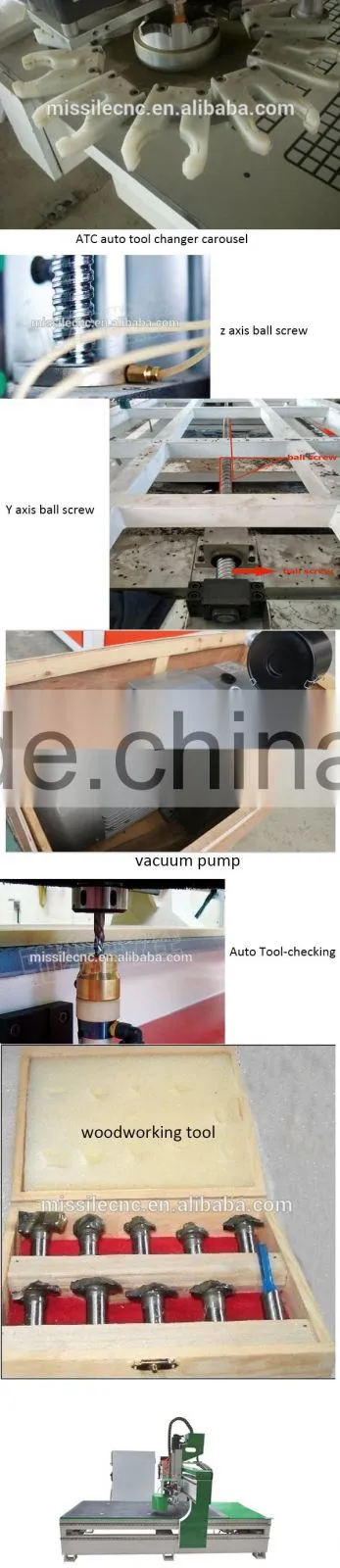

The accessory
Our MISSILE serial is customize high level model, there are cnc wood carving router, advertising cnc router, cnc nesting router and high precise cnc router for cutting aluminum. We can product machine meeting your requirement.

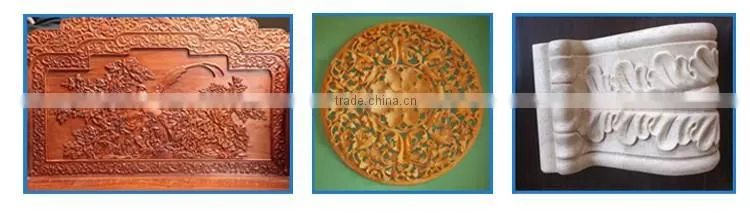

The samples & application
Widely used in the furniture, insulation power station, high speed train industry, advertising industries.
Suitable for processing wood furniture,engineering plastic,compound material,acrylic and other non-metal materials.
Our Company:
1.We can guarantee the machine made in our factory, all have our brand: If you need to check, welcome to our company and visit our factory.
2.We have specialists on the CNC Router Machine researched, including all kinds of machines: like woodworking CNC Router, Stone CNC Router, CNC Router with Pneumatic Tool Changer and Automatic Tool Changing CNC Router, Advertising CNC Router etc.
3. based on the strong sales network and stable quality, for the best selling products we all have wide stock to make satisfied with your needs, then save your time and money on the shipment.
4.we have the technical sales managers who can speak fluent English,answer you questions in 24 hours.
Workshop
FAQ
1.Question: what is this machine used for? Do i need a cnc router?
If you are here I assume you are thinking about buying a CNC router or some other CNC machine. Without a doubt these are amazing machines that can improve your business or project tremendously. However, there are many other types of CNC robotics that may be better fitting for your application.
This machine can be used for furnitures engraving, room decorations, industrial equipment parts, music instrument, mold, art&craft, building models and advertisment industry.
2.Question: How can i find a machine which can satify my requirement within my budget? Which one is the right one for me?
First lets answer the following questions.
1)What type of materials do you plan to cut or engrave?
( Wood, Particle Board, Plastic, Foam, Composites, Glass, Aluminum )
2)What is the most complex design you foresee cutting?
The complexity of the design is another important considerations. What is meant by this is primarily the overall size and depth of cut per axis. Do you plan to use the machine for cutting, carving, drilling, or all of the above?
3)What kind of tolerances do you need to hold?
Now this is something that I am sure you have already considered but it is still worth discussing. A router is capable of leaving a near perfect finish while surfacing and overall the tolerances are good. A decent machine, you should expect a tolerance of .001" or better for a given distance.
3.Question: How to buy? whats the main procedure?
First, we come to a final conclusion with agreement. May this step will cost more than months even years.
Second, I prepare you the proforma invoice as we agreed.
Third, you bring the proforma invoce to the bank and do the advance payment transfer.
Fourth, after you showed me the bank slip, we factory start to produce your machine.
Fifth, machine finished within 13 working days, then we do the delivery and you finish the balance.
Sixth, You receive the machine in your port and pick it up to your workshop.
4. Question: What is the machine warranty? If any parts fault due to quality how can i do ?
Our machine are with one year qualtiy warranty. within 12 months, if any parts failed due to qualtiy, we will send you the replacement parts in no time and we provide 24 hours online technical support to you. Any time you meet any problem, just contact us.
