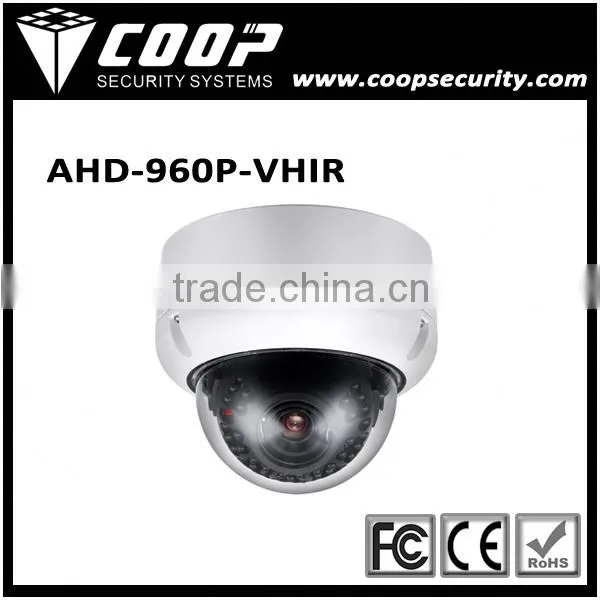

Vandalproof Dome Camera With 1/3'' HDIS 960P True Day&Night AHD Output

Name: Vandalproof Dome Camera With 1/3'' HDIS 960P True Day&Night AHD Output
Brand: COOP
SKU: 103876771
Availability: InStock

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

COOP

Model Number:

AHD-960P-VHIR

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shipping from Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name COOP

Model Number AHD-960P-VHIR

Type Analog Camera

Style Dome Camera

Sensor Other, CMOS, SONY 1/3" Exmor CMOS IMX238

Technology Infrared

Special Features Vandal-proof

1/3'' HDIS 960P True Day&Night ICR AHD Output Vandalproof Dome camera

Model NO.:AHD-960P-VHIR

Product Description

Feature:

1.3M 960P AHD output

CVBS output 16:9 image, 800TVL.

SONY 1.3Mega Exmor IMX238LQJ sensor

The latest AHD high speed processor

Super low illumination 0.0008LUX;

Multi protection design: over-voltage protection/ static protection/lightning proof protection

Smart LED Infrared avoid over-exposure

Adopt Japan power IC Design, wide voltage, working voltage min. +5V, max.24V.

5-second-Press Menu left button and right button to switch CVBS and AHD output signal

OSD Menu

IR distance 30M,36pcs Ø5mm Black IR leds
STD:2.8-12mm VF lens
Inner 4- bracket

Technique Specification:

Model Number	AHD-960P-VHIR
SENSOR	SONY 1/3” Exmor CMOS IMX238
Size	32mm32mm/38mm38mm
Chipset	NVP2430H+238
Output Resolution	AHD 960P /CVBS 1300 TVL
Signal Sys.	PAL/NTSC
Total Pixel	1312(H)×1069(V) 1.4M Pixels
Valid Pixel	1280(H)×1024(V) 1.31M Pixels
Min Illumination	Color 0.02Lux(F1.2,50IRE,AGC ON); B/W: 0.0008Lux(F1.2,50IRE,AGC ON)
Electric Shutter	PAL :1/50 ~ 1/100,000s NTSC:1/60 ~ 1/100,000s
WDR	D-WDR
Sens-up	0-30X
2D-DNR	off/ low/ medium/ high
3D-DNR	off/ low/ medium/ high
Image-frozen	Support
BLC/HLC	Support
Defogger	0-2 Level
S/N	> 60dB
White Balance	Auto White balance
Day/Night	Auto/ manual / Color/ B/W
Mirror	Horizontal/ Vertical
Privacy Mask	Support
OSD Language	Chinese/ English/ German/ French/ Italian/ Spanish/ Portuguese/ Russian/ Dutch/ Turkish/ Polish
Video Output	1.0Vp-p compound output, 75Ω
Power	DC 12V±50%
Working Temperature	-20℃~60℃
Working Humidity	Relative humidity less than 90%
