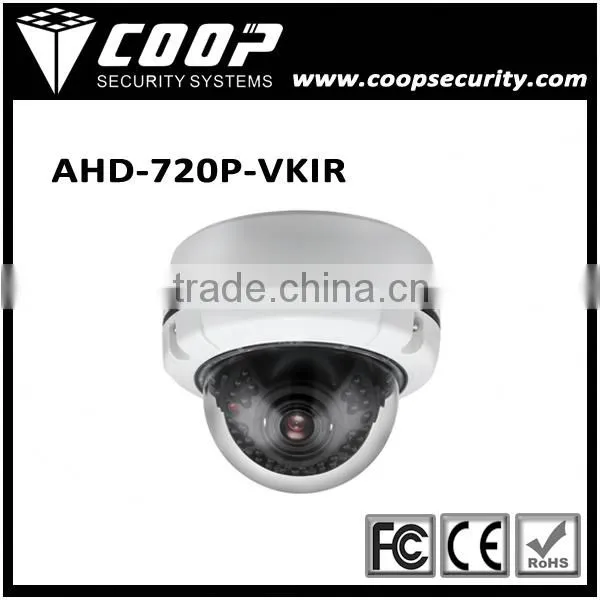

1.0Mega High HD Vandalproof AHD IR Dome Camera

Name: 1.0Mega High HD Vandalproof AHD IR Dome Camera
Brand: COOP
SKU: 103876807

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

COOP

Model Number:

AHD-720P-VKIR

Coop Security Technology(Quanzhou)Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shipping from Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name COOP

Model Number AHD-720P-VKIR

Type Analog Camera

Style Dome Camera

Sensor Other, CMOS, 1/4 inch OV9712 Sensor

Technology Infrared

Special Features Vandal-proof

1/4'' HDIS 720P True Day&Night ICR Vandalproof AHD Dome camera

Model NO.:AHD-720P-VKIR

Product Description

1.0MP 720P AHD output.

CVBS video output 16:9 images 800TVL.

The latest AHD high speed processor

Super low illumination 0.0008LUX.

Multi protection design: over-voltage protection/ static protection/lightning proof protection.

OSD Menu.

IR distance 30M

36pcs Ø5mm Black IR leds
STD: 2.8-12mm VF lens
Inner 4-bracket, embeded supporting

Technique Specification:

Model Number	AHD-720P-VKIR
Sensor	1/4 inch OV9712 Sensor
Resolution	PAL/NTSC : 1280*720
Min Illumination	Color 0. 1Lux@(F1.2,AGC ON),0Lux with IR B/W 0.01Lux@(F1.2,AGC ON),0Lux with IR
LDR	1 LDR interface, support LDR input signal and image, IR-CUT, far infrared chain reaction
Shutter	1/50(1/60)s to 1/100,000s.
Day/Night	Support IR-CUT switch mechanically
Lens	C/CS mount, M12 lens optional
synchronization	Internal synchronization
S/N	>58dB
Working Humidity & Temperature	-10℃ ~ 60℃, humidity less than 90%(no condensing)
Power Supply	DC12V±10%
Power Consumption	<5W
