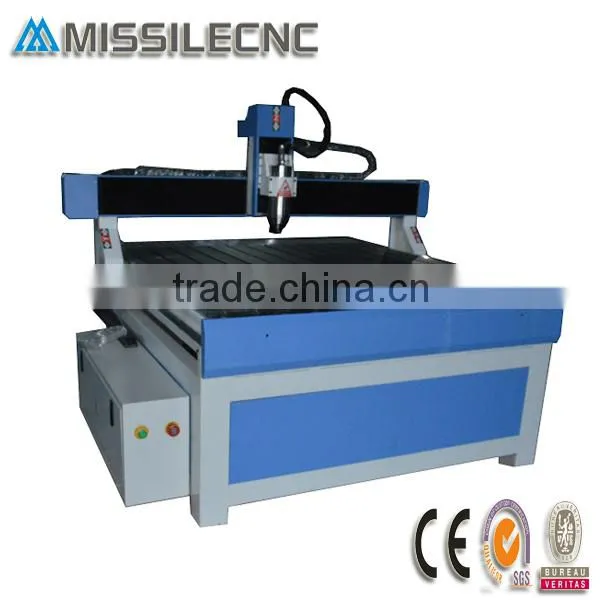

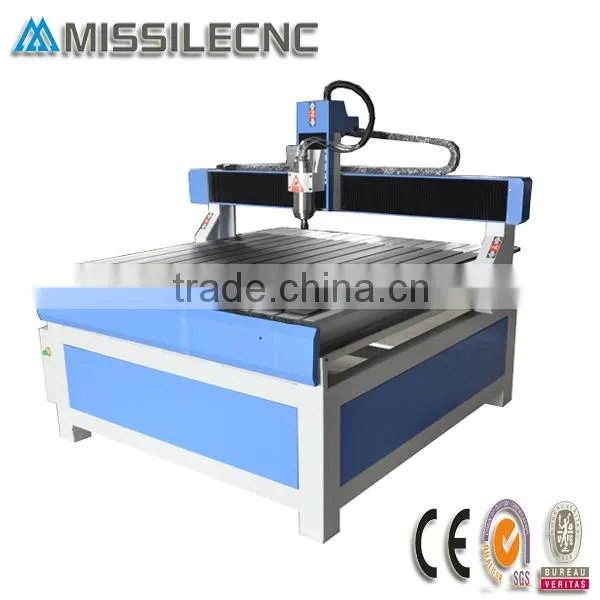

2016 jinan missile china 1212 wood acrylic mini cnc router
Parameter:
Model: |
MS-1212A |
Machine body: |
welded machine frame |
X,Y-axis working area : |
1200*1200mm |
Z-axis working area: |
120 mm |
Max. Speed: |
25000mm/min |
Working speed : |
0-15000mm/min |
Mechanical precision: |
0.04mm/300mm |
Compatible Software: |
Artcam |
Power source: |
AC 220v(50HZ)/380v(60HZ) |
Driver type |
stepper motors drivers |
The transmission: |
Rack and gear drive on X/Y axis; TBI ball screw drive on Z axis |
Guideway |
HIWIN 20 square linear rails |
Spindle: |
3.0KW water cooling spindle |
Spindle speed: |
0~24000rpm |
Blade diameter: |
3.175mm/4mm/6/8/12.7mm |
Control system: |
NC Studio / (Option : 3 axis DSP control system ) |
Command: |
G code (uoo.mmg.plt.) |
Running circumstance temperature: |
0-45°C |
Relative humidity: |
30%-75% |
Other Optional machine parts |
Dust collector Oil injection device Vacuum Worktable |

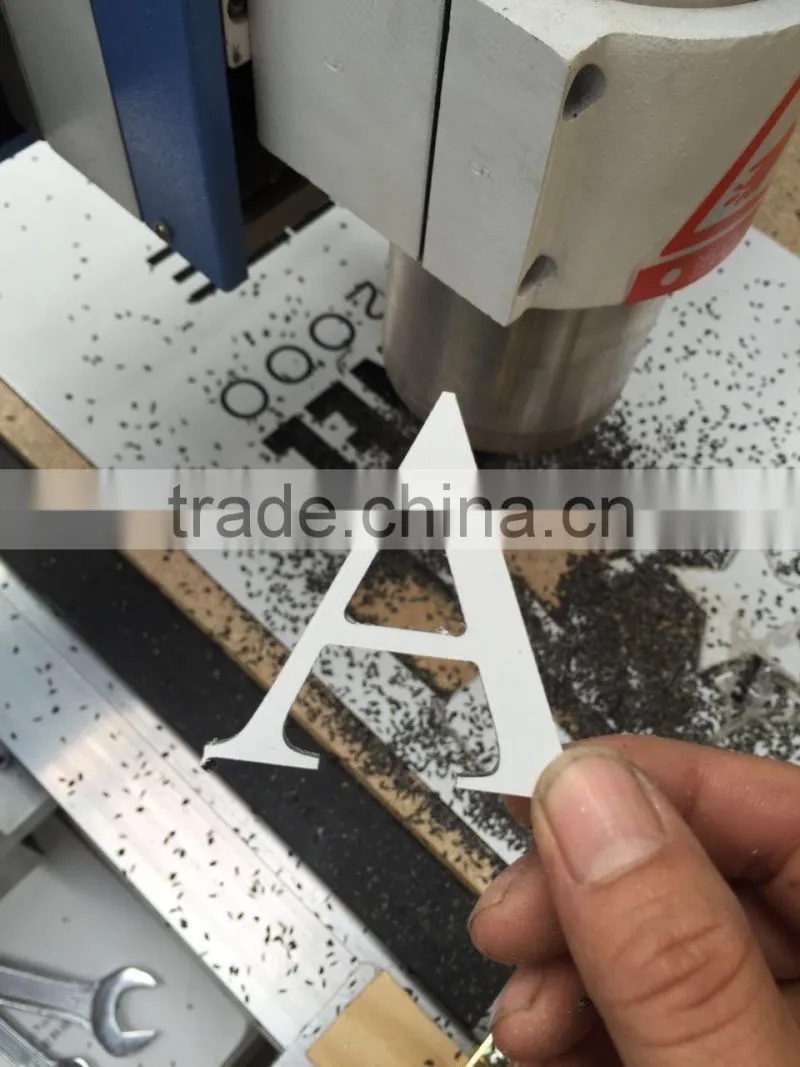

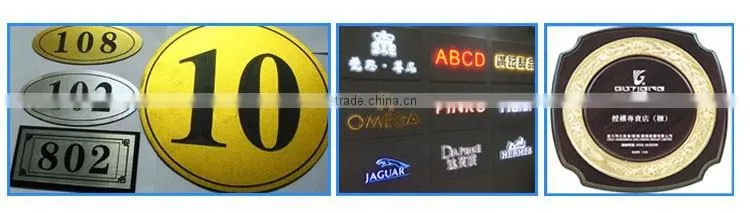

Application:
Our 1212 wood acrylic mini cnc router is applicable for Acrylic, PVC board, MDF board and other board’s processing,Wave board production, various types of artificial board shaped cutting, LED, neon channel literally cutting, light box molding etc.
