China Manufacturer 2030 advertising cnc router machine in wood router

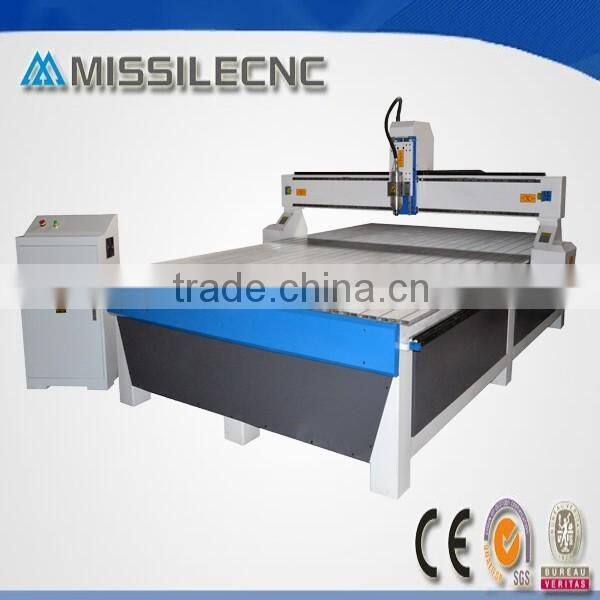

Machine pic:2030 AND 1325A
Features of China Manufacturer 2030 advertising cnc router machine in wood router :
Advertising field need cnc router machine move fast and keep presice and long life,
so we make this machine with following standard configuration
1. Structure: thick square tube welded bed,aluminum t-slot table .

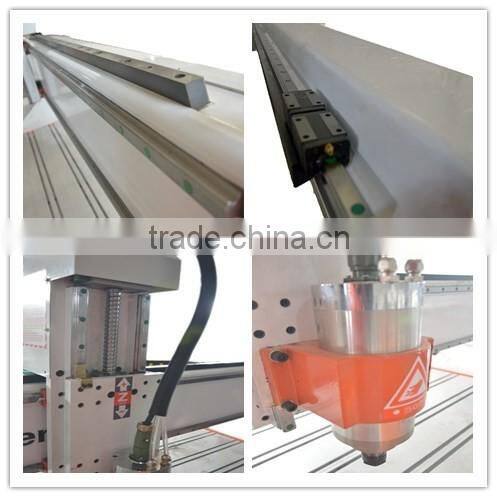

2. Transmission: X,Y axis helical rack and pinion, Z axis ball screw,fast speed.
3. Guide rail: square rails, high precision, wear resistance, long life.

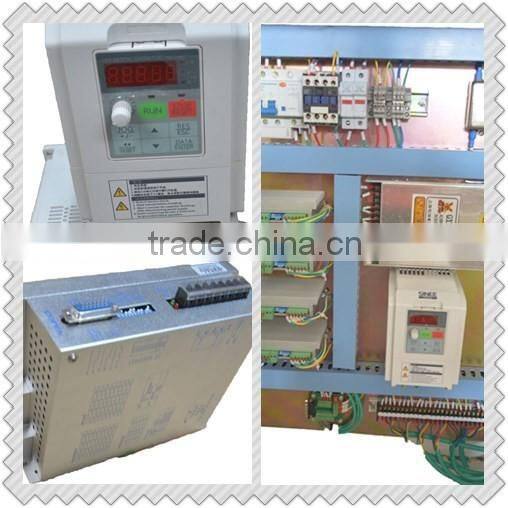

4. Drive system: stepper driver with high-speed stepper motor(Moving fast in advetising cnc router)
5. Control system: Ncstudio system( good use in advertising machine in wood router )

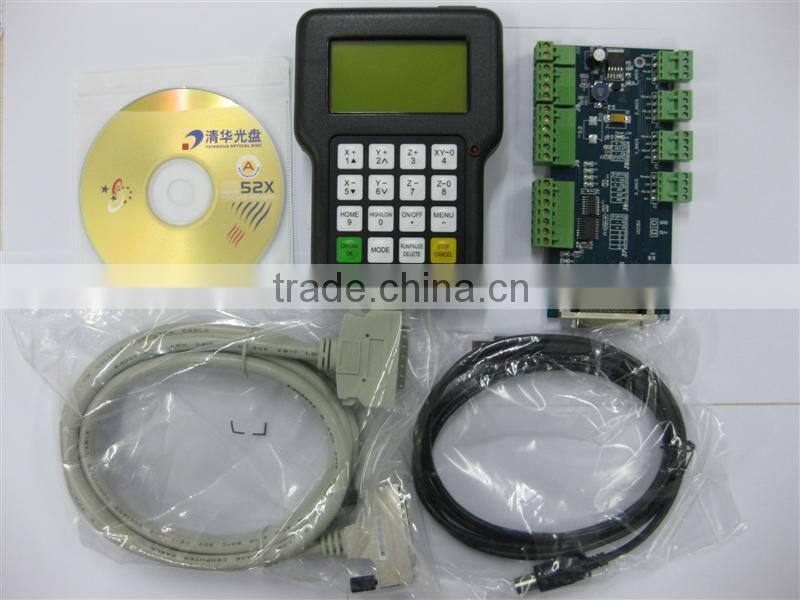

6. Optional:air-cooled spindle, servo motor,DSP control system, custom-size models.
Parameters for China Manufacturer 2030 advertising cnc router machine in Parkistan :
NOr |
Description |
Parameter |
1 |
X,Y,Z Working Area |
2000x3000x200mm |
2 |
X,Y,Z Traveling Positioning Accuracy |
±0.05MM |
3 |
X,Y,Z Repositioning Accuracy |
±0.05mm |
4 |
Table Surface |
aluminum T-slot Table |
5 |
Frame |
Square pipe Welded Structure |
6 |
X, Y axis transmission |
Rack and Pinion gear |
7 |
Z transmission |
Ball Screw |
8 |
Max. traveling speed |
25000mm/min |
9 |
Max. Working Speed |
15000mm/min |
10 |
Rail Configuration |
20 square rail |
11 |
Spindle Power |
Water-cooling 3KW(opitioinal air-cooling spindle) |
12 |
Spindle rotationg Speed |
0-24000RPM |
13 |
Drive Motors |
Stepper System |
14 |
Working Voltage |
AC220V/50HZ (Option: AC380V/50Hz,3PH) |
15 |
Operating System |
Ncstudio system(Option: DSP) |
16 |
Computer Interface |
USB |
17 |
Command Language |
G code, u00, mmg, PLT, HPG |
18 |
Software Compatibility |
Type3 or Wentai (ArtCUT), or ArtCAM software |
19 |
Packing and Size |
Wooden case,L3700mmW2700mmH1900mm |
20 |
N.W. |
1300KG |
China Manufacturer 2030 advertising cnc router machine widely used in advertising industries.
Advertising industries: Acrylic, PVC board, MDF board and other board’s processing, Wave board production, various types of artificial board shaped cutting, LED, neon channel literally cutting, light box molding.
You have enough reasons to choose us
1.Big stock for standard cnc router machines
2.Professional testing system before exporting
3.Advanced equipment process such 2030 cnc router machine
3.Professional Packing and shipping to keep cnc router machine safe:
2030 advertising cnc router machine can be loaded in 20feet container with 4sets
4.we have full sets certificate satisfied different countries
5.we have professional and hard working colleagues to introduce suitable cnc router machine for you
Q: Are you trading company or manufacturer ?
A: We are factory and professional manufacturer for cnc router machines.
Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 8-10 days if the goods are not in stock, it depends on quantity and cnc router machine models.
Q: How do you support the after-sales services ?
A: * Firstly , we will share the cnc router machine and software tranining video together with the machine .
* Our Engineers available to service machinery overseas.
* 24h online services
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

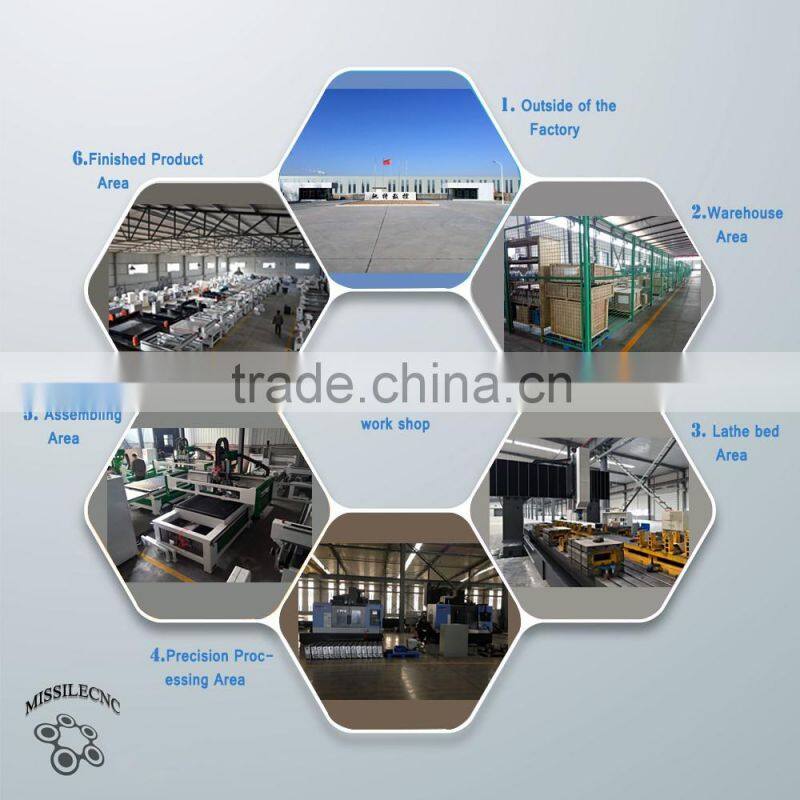

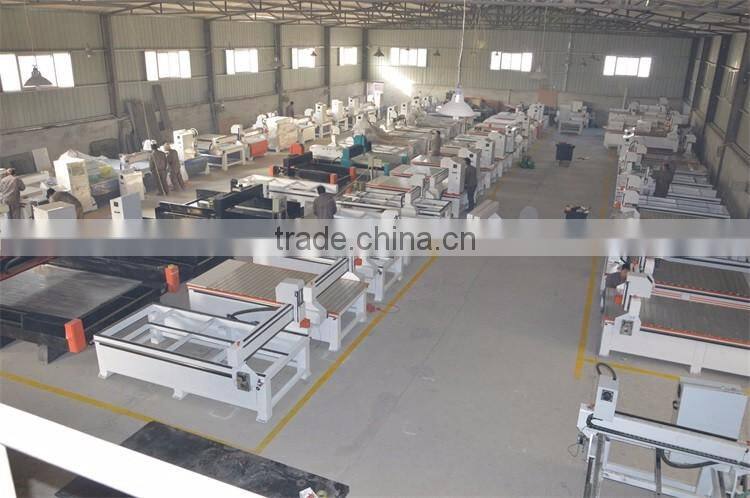

Welcome to visit our factory , we can help make processing plan.
And welcome world's agents!!!
Come on and join us
Cathy
Jinan Missile CNC Equipment CO., Ltd
Whatsapp / Wechat : +86 -15069002011
QQ : 1607528680
Website:
