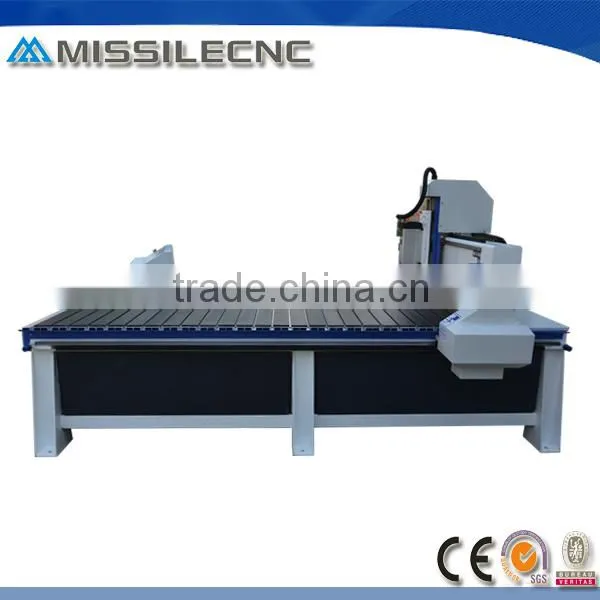

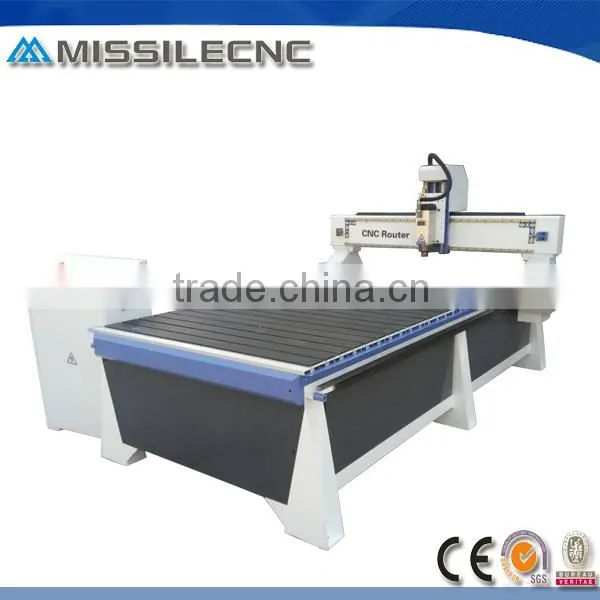

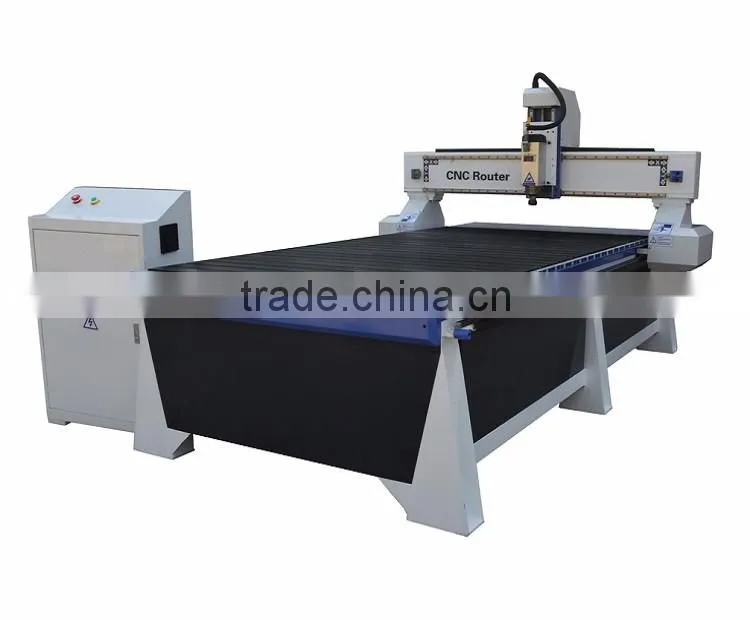

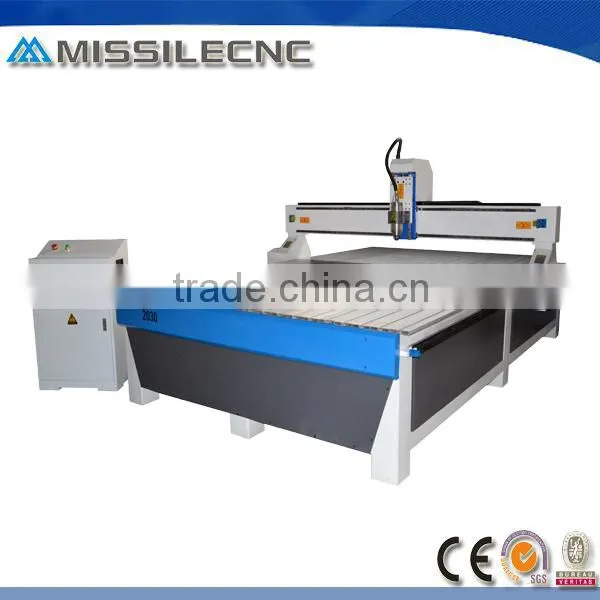

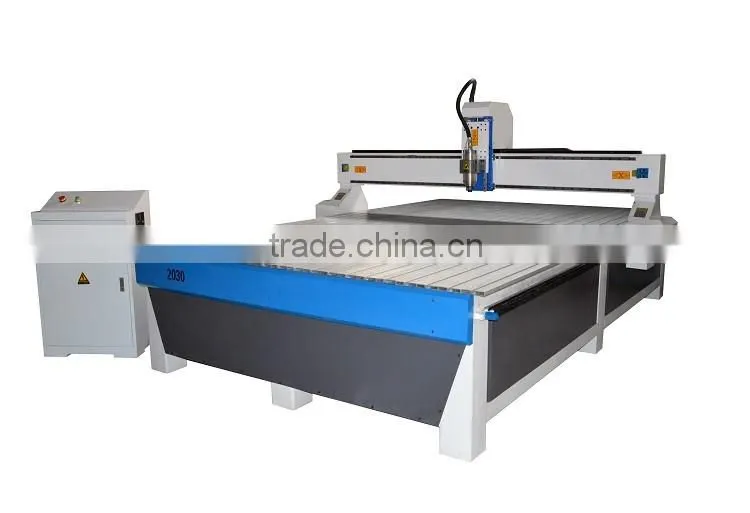

Advertising woodworking large size 2030 wood carving cnc router machine
Advertising woodworking large size 2030 wood carving cnc router machine is one type of large size cnc router machine for advertising or woodworking. It mainly for working on large size material. The 2030 wood carving cnc router machine has alumnium T-slot table, water cooling 3.0kw spindle, stepper motor and drivers and Nc studio control system.
Technical parameters of 2030 wood carving cnc router machine :
X,Y,Z Working Area |
2000x3000x200mm |
X,Y,Z Traveling Positioning Accuracy |
±0.05mm |
X,Y,Z Repositioning Accuracy |
±0.05mm |
Table Surface |
Alumnium T-slot table |
Frame |
Square pipe Welded Structure |
X, Y axis transmission |
Rack and Pinion gear |
Z axis transmission |
Ball Screw |
Max. Traveling speed |
25000mm/min |
Max. Working speed |
15000mm/min |
Rail Configuration |
20 square rail |
Spindle Power |
Water-cooling 3kw (Opitioinal air-cooling spindle) |
Spindle rotationg Speed |
0-24000RPM |
Drive Motors |
Stepper System (Opitional YASKAWA sevo) |
Working Voltage |
AC380V/50Hz (Opitional: AC220V/50HZ ) |
Operating System |
Ncstudio system(Opitional: DSP) |
Command Language |
G code, u00, mmg, PLT, HPG |
Software Compatibility |
Type3 or Wentai (ArtCUT), or ArtCAM |
Packing |
Wooden case , L3200mmW2000mmH1900mm |
N.W. |
1600KG |

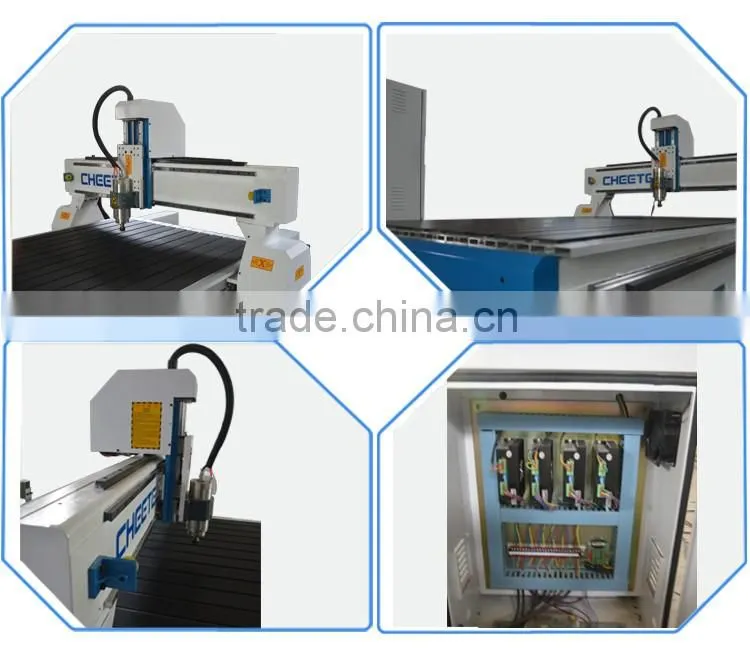

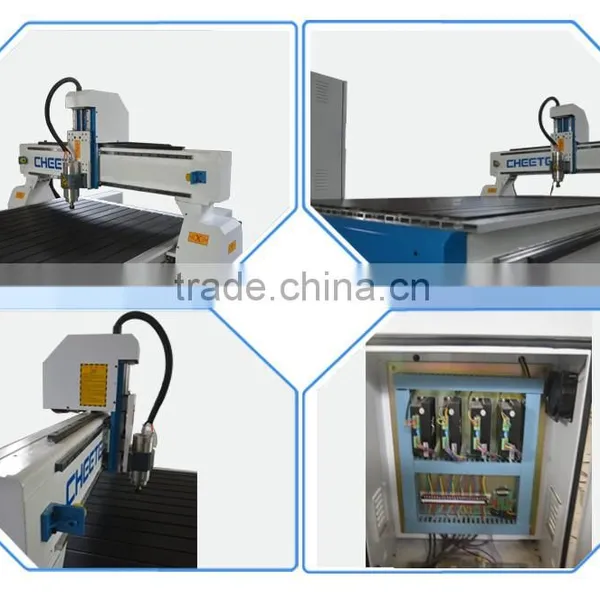

Features of 2030 wood carving cnc router machine :
1.Structure: thick square tube welded bed, strict control of bed deformation rate.
2.Transmission: Y-axis helical rack,fast speed. Three axises square linear rails, high precision, wear resistance, long life.
3.Drive system: Leader shine stepper driver with high-speed stepper motor, it is good for the common materials’engraving and cutting in advertising industry.
4.Control system: Ncstudio system which connect with computer directly.
5.Optional: air-cooled spindle, DSP handset control system, custom-size models.
6.Features: Advertising woodworking large size 2030 wood carving cnc router machine is the most popular one in advertising industry. It is a model combining practicality and economy, with highly cost-effective.
Main applications of 2030 wood carving cnc router machine :
Acrylic, PVC board, MDF board and other board’s processing, Wave board production, various types of artificial board shaped cutting, LED, neon channel literally cutting, light box molding.
2030 wood carving cnc router machine Packing: strong wooden package
Shipping: 7-20 working days after confirming the order
MISSILECNC is a professional CNC machinery manufacturer. We have our own two brands: CHEETECH (classic series) and MISSILECNC (advanced series). MISSILECNC ecpanded its presence with over 5,000 CNC routers and systems, involving more than 200 kinds of series: like woodworking CNC Router, Stone CNC Router, CNC Router with Pneumatic Tool Changer and Automatic Tool Changing CNC Router, Advertising CNC Router etc.
Questions and answer for 2030 wood carving cnc router machine :
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
