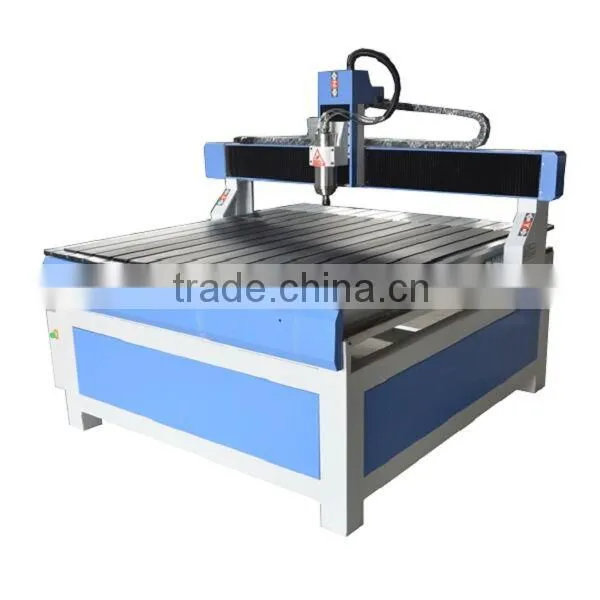

2016 ball screw transmission 1212 small cnc router machine
Product description:
Our 1212A small cnc router machine is designed for wooden. 1212 small cnc router machine is used to process door, furniture, closet, cabinet, kitchen etc. We have ball screw transmission small cnc router machine with 200 sets storage capacity each month. And our 2016 small cnc router machine have passed BV&CE certification.
Parameter
Model: |
1212A |
Machine body: |
welded machine frame |
X,Y-axis working area : |
1200*1200mm |
Z-axis working area: |
120 mm |
Max. Speed: |
25000mm/min |
Working speed : |
0-15000mm/min |
Mechanical precision: |
0.04mm/300mm |
Compatible Software: |
Artcut |
Power source: |
AC 220v(50HZ)/380v(60HZ) |
Driver type |
stepper motors drivers |
The transmission: |
ball screw drive on 3 axis |
Guideway |
square linear rails |
Spindle: |
3.0KW water cooling spindle |
Spindle speed: |
0~24000rpm |
Blade diameter: |
3.175mm/4mm/6/8/12.7mm |
Control system: |
NC Studio / (Option : 3 axis DSP control system ) |
Command: |
G code (uoo.mmg.plt.) |
Running circumstance temperature: |
0-45°C |
Relative humidity: |
30%-75% |
Other Optional machine parts |
Dust collector, Oil injection device, Vacuum Worktable |
Features
1. Linear rails and ball screw on X, Y and Z axis are used to guarantee high accuracy, stable performance, and supporting heavy weight.
2. Y axis is controlled by two motors
3. The whole bed of cast iron, long time no deformation in accordance with the requirements of standard industrialmanufacturing, to provide you with a firm and stable platform.
4. high-performance water-cooled spindle motor, low noise, power, and ensure the stability of
the device to work long hours.

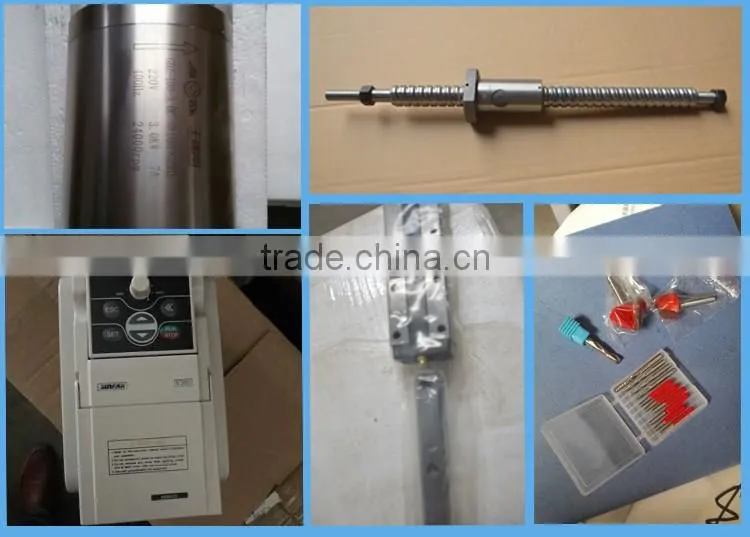

The accessory

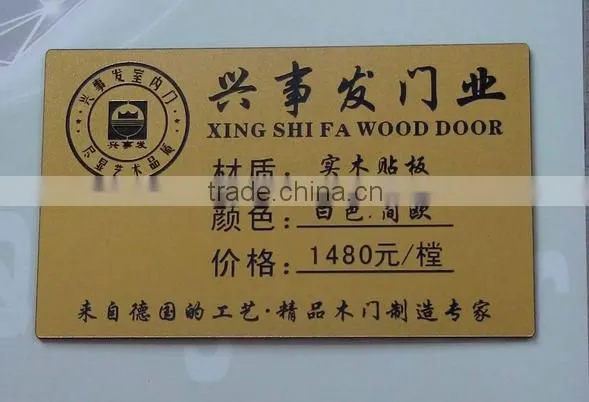

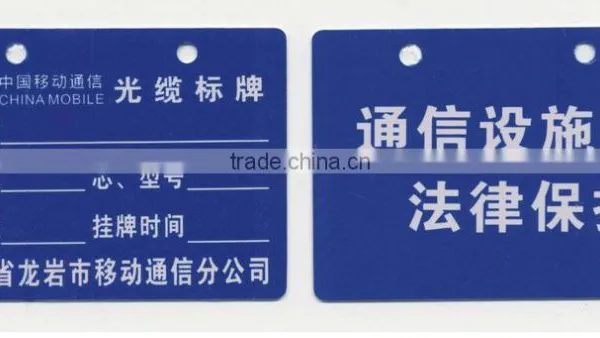

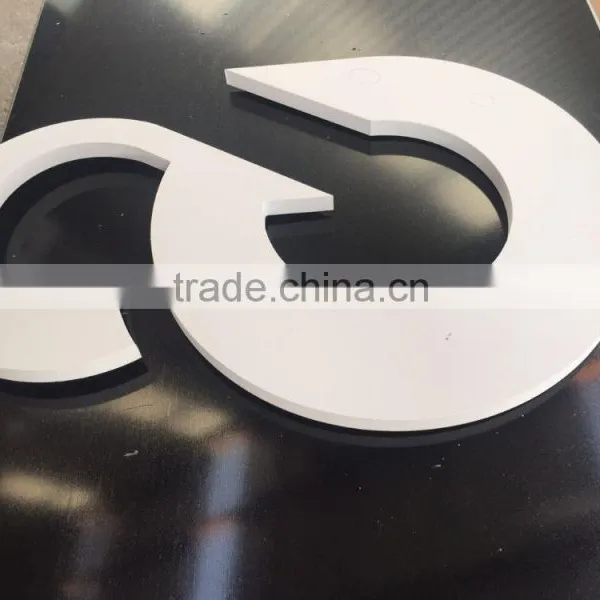

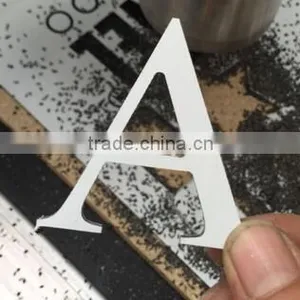

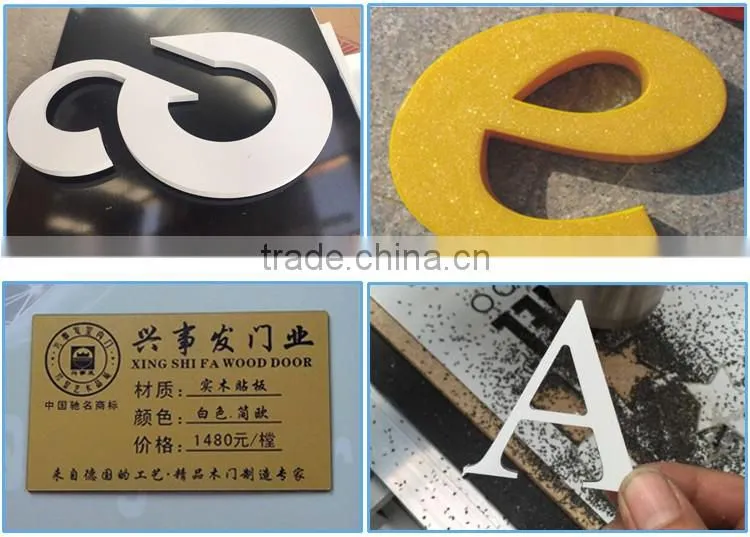

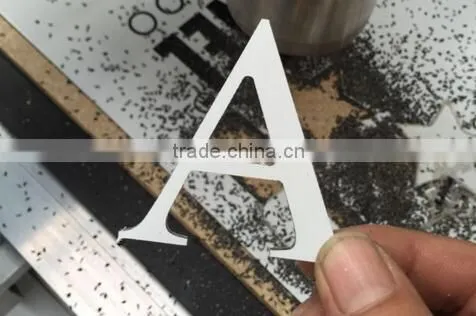

The samples & application
Our 1212 mini cnc machine is applicable for Acrylic, PVC board, MDF board and other board’s processing, Wave board production, various types of artificial board shaped cutting, LED, neon channel literally cutting, light box molding etc.
Our Company:
FAQ
1.Question: what is this machine used for? Do i need a cnc router?
If you are here I assume you are thinking about buying a CNC router or some other CNC machine. Without a doubt these are amazing machines that can improve your business or project tremendously. However, there are many other types of CNC robotics that may be better fitting for your application.
This machine can be used for furnitures engraving, room decorations, industrial equipment parts, music instrument, mold, art&craft, building models and advertisment industry.
2.Question: How can i find a machine which can satify my requirement within my budget? Which one is the right one for me?
First lets answer the following questions.
1)What type of materials do you plan to cut or engrave?
( Wood, Particle Board, Plastic, Foam, Composites, Glass, Aluminum )
2)What is the most complex design you foresee cutting?
The complexity of the design is another important considerations. What is meant by this is primarily the overall size and depth of cut per axis. Do you plan to use the machine for cutting, carving, drilling, or all of the above?
3)What kind of tolerances do you need to hold?
Now this is something that I am sure you have already considered but it is still worth discussing. A router is capable of leaving a near perfect finish while surfacing and overall the tolerances are good. A decent machine, you should expect a tolerance of .001" or better for a given distance.
3.Question: How to buy? whats the main procedure?
First, we come to a final conclusion with agreement. May this step will cost more than months even years.
Second, I prepare you the proforma invoice as we agreed.
Third, you bring the proforma invoce to the bank and do the advance payment transfer.
Fourth, after you showed me the bank slip, we factory start to produce your machine.
Fifth, machine finished within 13 working days, then we do the delivery and you finish the balance.
Sixth, You receive the machine in your port and pick it up to your workshop.
4. Question: What is the machine warranty? If any parts fault due to quality how can i do ?
Our machine are with one year qualtiy warranty. within 12 months, if any parts failed due to qualtiy, we will send you the replacement parts in no time and we provide 24 hours online technical support to you. Any time you meet any problem, just contact us.
