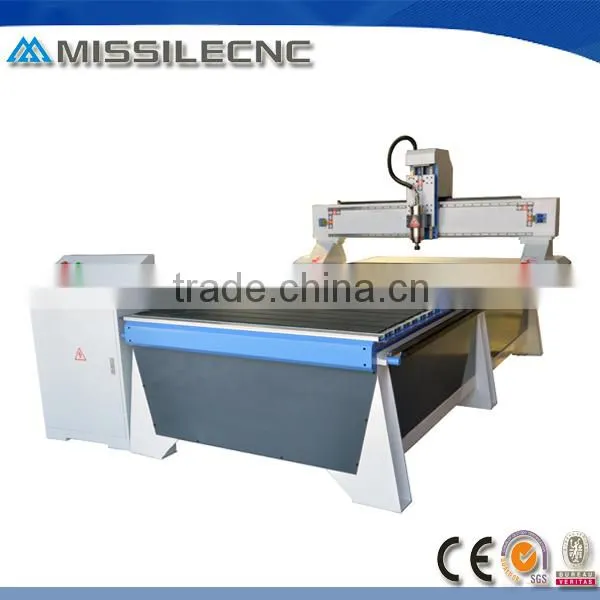

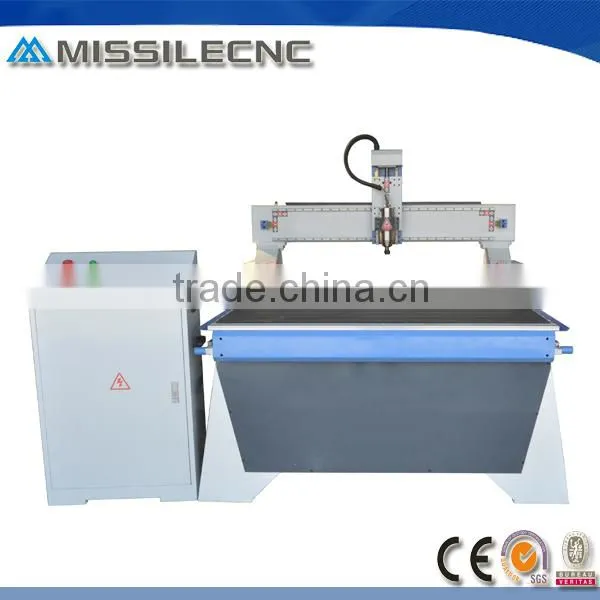

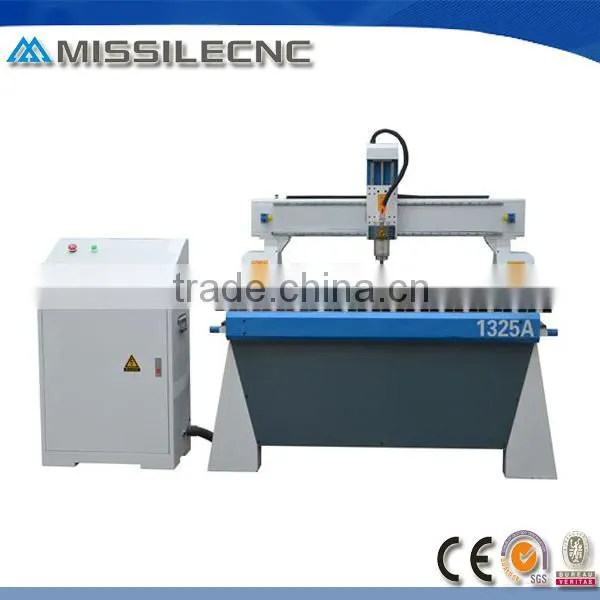

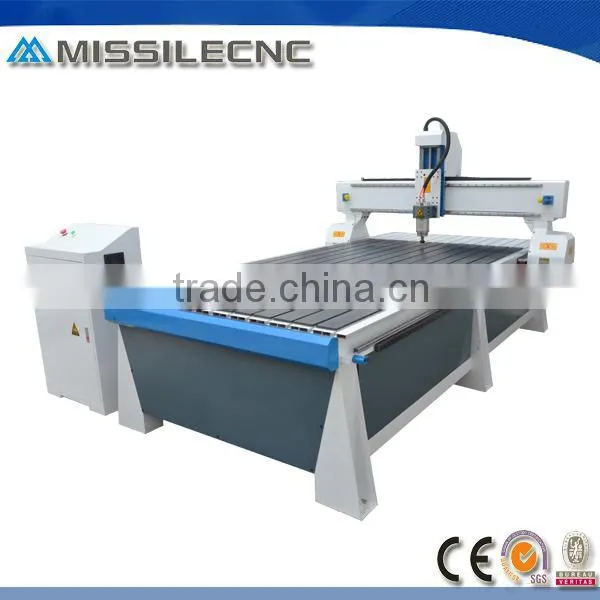

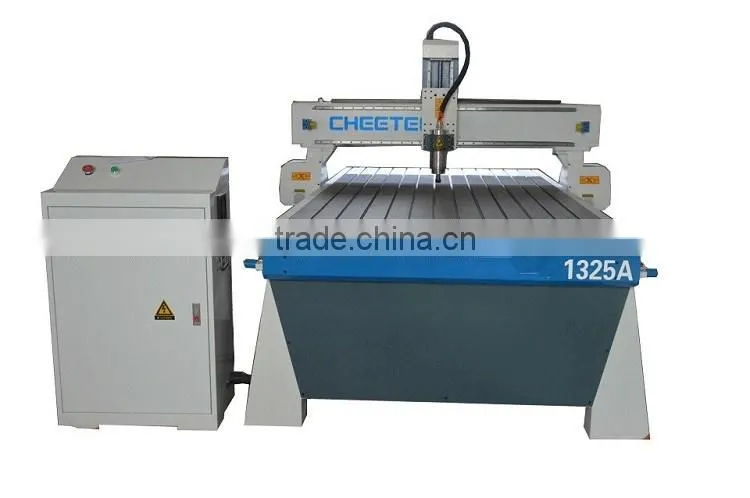

China supply 1325 advertising cnc router engraving machine
China supply 1325 advertising cnc router engraving machine is our hot sale advertising cnc router engraving machine. With square pipe welded structure, water-cooling spindle, Nc studio control system, Stepper motor and driver, dust suction system etc.1325 advertising cnc router engraving machine is equiped with thick square tube welded lathe bed, aluminum T-slot table. Our cnc router machine price is reasonable due to no limited by the number of processing , special advantage for small quantity processing .
Technical parameters of 1325 advertising cnc router engraving machine :
X,Y,Z Working Area |
1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy |
±0.05mm |
X,Y,Z Repositioning Accuracy |
±0.05mm |
Table Surface |
Aluminum T-slot Table (Opitional: Vacuum table) |
Frame |
Square pipe Welded Structure |
X, Y axis transmission |
Rack and Pinion gear |
Z axis transmission |
Ball Screw |
Max. Traveling speed |
25000mm/min |
Max. Working speed |
15000mm/min |
Rail Configuration |
20 square rail |
Spindle Power |
Water-cooling 3kw (Opitioinal air-cooling spindle) |
Spindle rotationg Speed |
0-24000RPM |
Drive Motors |
Stepper System (Opitional YASKAWA sevo) |
Working Voltage |
AC380V/50Hz (Opitional: AC220V/50HZ ) |
Operating System |
Ncstudio system(Opitional: DSP) |
Command Language |
G code, u00, mmg, PLT, HPG |
Software Compatibility |
Type3 or Wentai (ArtCUT), or ArtCAM |
Packing |
Wooden case , L3200mmW2000mmH1900mm |
N.W. |
1200KG |

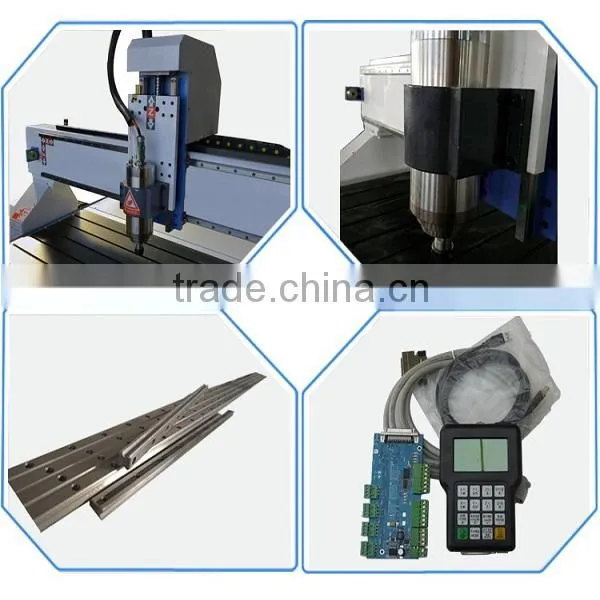

Features of 1325 advertising cnc router engraving machine :

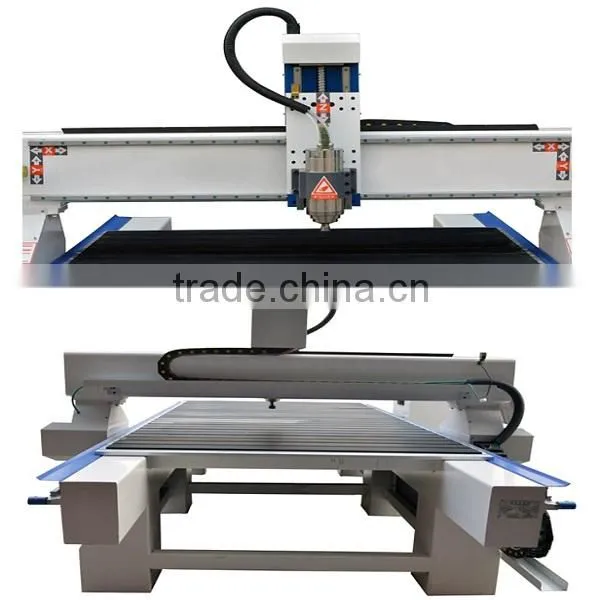

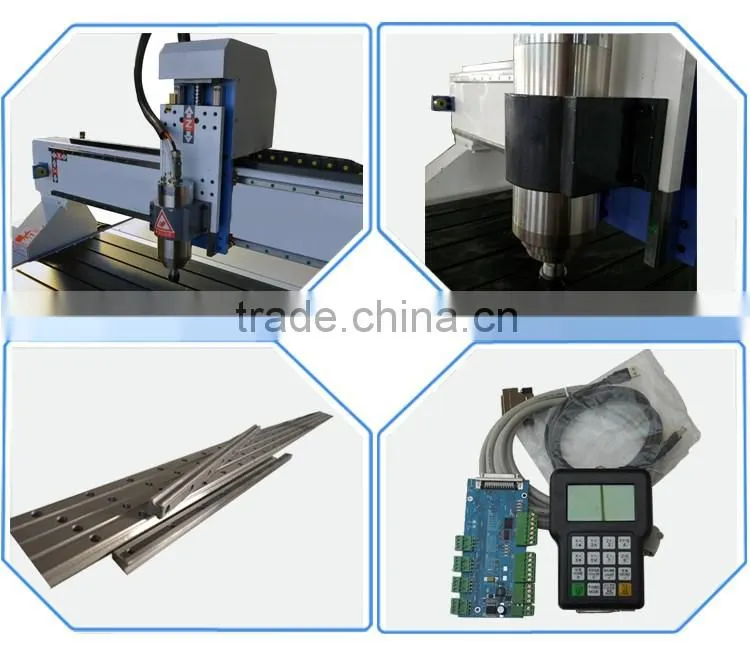

Structure: thick square tube welded bed, strict control of bed deformation rate.
Transmission: Y-axis helical rack,fast speed. Three axises square linear rails, high precision, wear resistance, long life.
Drive system: Leader shine stepper driver with high-speed stepper motor, it is good for the common materials’engraving and cutting in advertising industry.
Control system: Ncstudio system which connect with computer directly.
Optional: air-cooled spindle, DSP handset control system, custom-size models.
The machine Features: This model is the most popular one in advertising industry. It is a model combining practicality and economy, with highly cost-effective.
Main applications of 1325 advertising cnc router engraving machine :
Acrylic, PVC board, MDF board and other board’s processing, Wave board production, various types of artificial board shaped cutting, LED, neon channel literally cutting, light box molding.
1325 advertising cnc router engraving machine Packing: strong wooden package
Shipping: 7-20 working days after confirming the order
MISSILECNC is a professional CNC machinery manufacturer. We have our own two brands: CHEETECH (classic series) and MISSILECNC (advanced series). MISSILECNC ecpanded its presence with over 5,000 CNC routers and systems, involving more than 200 kinds of series: like woodworking CNC Router, Stone CNC Router, CNC Router with Pneumatic Tool Changer and Automatic Tool Changing CNC Router, Advertising CNC Router etc.
Questions and answer for 1325 advertising cnc router engraving machine :
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free
