China Jinan Missile Multihead Cnc Route Machine With Rotary Axis

Jinan Missile CNC Equipment Co., Ltd.
China Jinan Missile Multihead Cnc Route Machine With Rotary Axis thumbnail-1
China Jinan Missile Multihead Cnc Route Machine With Rotary Axis thumbnail-2
China Jinan Missile Multihead Cnc Route Machine With Rotary Axis thumbnail-3
China Jinan Missile Multihead Cnc Route Machine With Rotary Axis thumbnail-4
China Jinan Missile Multihead Cnc Route Machine With Rotary Axis thumbnail-5
China Jinan Missile Multihead Cnc Route Machine With Rotary Axis photo-1
China Jinan Missile Multihead Cnc Route Machine With Rotary Axis photo-2

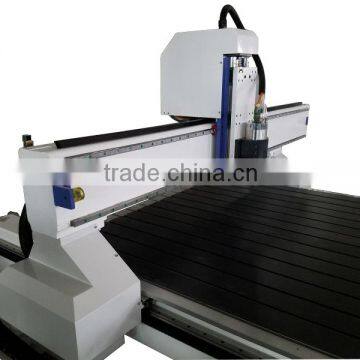

China Jinan Missile Multihead Cnc Route Machine With Rotary Axis photo-3

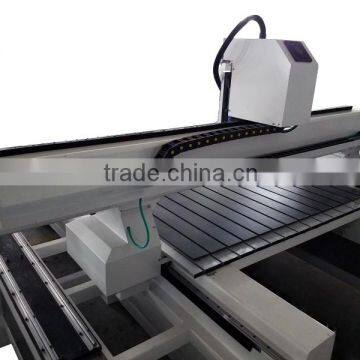

China Jinan Missile Multihead Cnc Route Machine With Rotary Axis photo-4

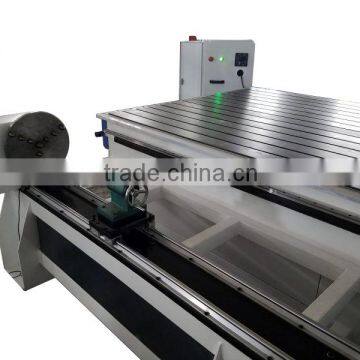

China Jinan Missile Multihead Cnc Route Machine With Rotary Axis photo-5
US$ 7,200 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name MISSILECNC
Model Number MFC01
Voltage AC220V/380V/50HZ/60HZ
Power(W) 3.0kw
Dimension(L*W*H) 2300*3300*2100mm
Weight 1000kg
Certification CE BV
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

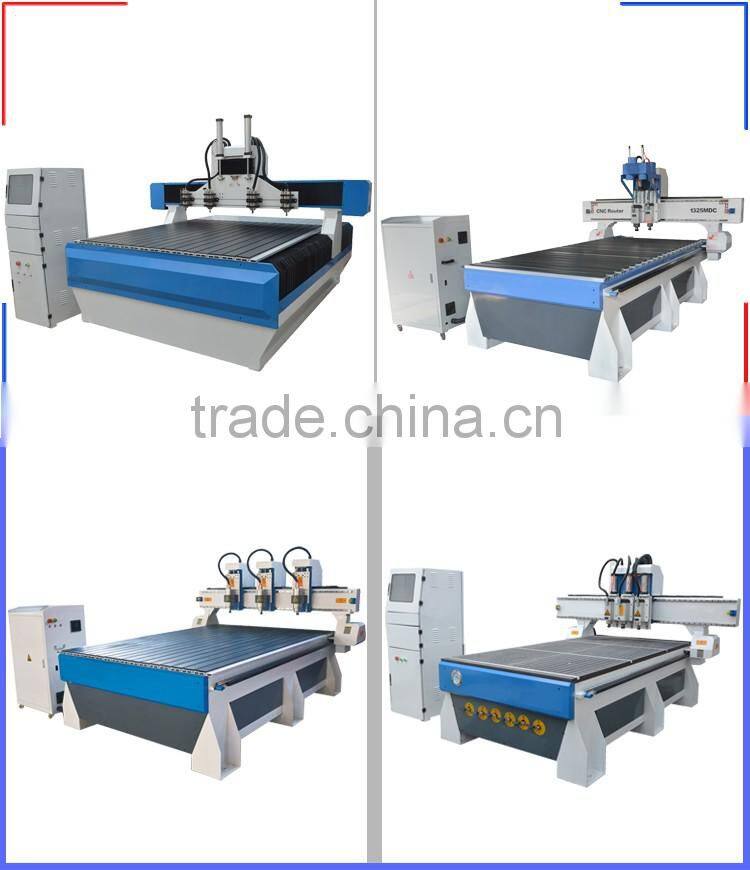

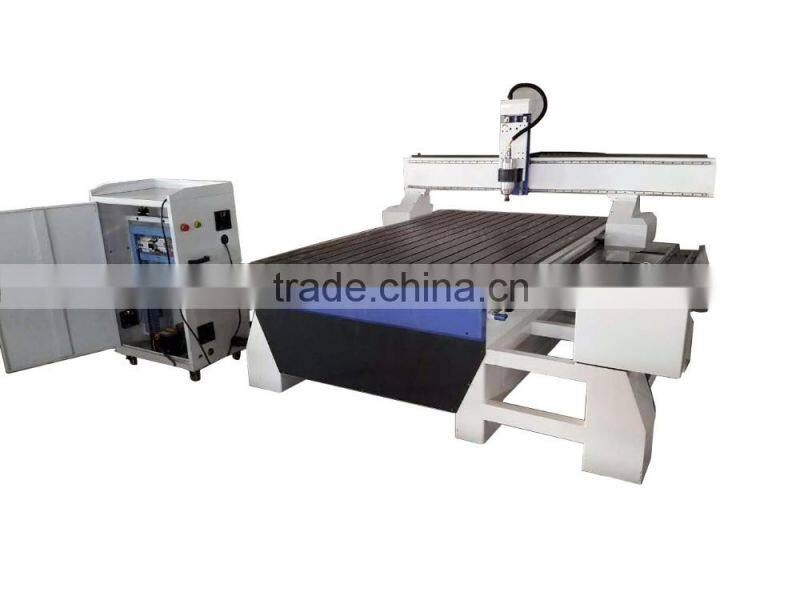

china jinan missile multihead cnc route machine with rotary axis

china jinan missile multihead cnc route machine with rotary axis

china jinan missile multihead cnc route machine with rotary axis

china jinan missile multihead cnc route machine with rotary axis



Features:

Missile MFC01 cnc route machine with rotary axis is one of the most popular models for many applications.



1. We offer any options for this model for different industries.



2. Besides, the machine with rotary axis is one of the state of the art CNC machines designed and developed for carving industry focusing on cylindrical as well we flat engraving/carving and cutting application with its 4th axis in place making 3D carving on cylindrical surface on any wood.



3. The machine is easy to use, you will be acheving basic routing tasks and roducing your pieces in on time



4. Options:
·Special size table. From1220*1300mm~2000*6000mm
·Vacuum table
·Automatic lubricating system
·Mist cooling system
·Machine moving feel
·Servo system
·Dust collecting system
·Different power of spindles
·Spindles quatity
·Rorary axis: Diameter: 80mm, 200mm, etc

Parameter:

X,Y,Z Working Area

1300x2500x200mm

X,Y,Z Traveling Positioning Accuracy

±0.05MM

X,Y,Z Repositioning Accuracy

±0.05mm

Table Surface

Aluminum T-slot table

Frame

Square pipe Welded Structure

X, Y, Z axis transmission

X Y axis Rack and Z axis Ball screw

MAX traving speed

40000mm/min

Max. Working Speed

20000mm/min

Guide

Hiwin square rail

Spindle Power

3kw water cooled spindle

Spindle rotationg Speed

24000RPM

Drive Motors

High speed motor and driver

Working Voltage

AC220V/ 380V/ 50Hz,3PH

Operating System

Nc-studio

Command Language

G code, u00, mmg, PLT, HPG

Software Compatibility

all kind of 3D and JD caving software

Standard Rotary axis

300mm diameter, 2000mm length



Application:



# processing art craft, classical furniture, redwood etc 3d relief engraving

# round material engraving(with rotary axis).



Samples:

china jinan missile multihead cnc route machine with rotary axis

china jinan missile multihead cnc route machine with rotary axis

china jinan missile multihead cnc route machine with rotary axis

china jinan missile multihead cnc route machine with rotary axis

china jinan missile multihead cnc route machine with rotary axis
china jinan missile multihead cnc route machine with rotary axis
china jinan missile multihead cnc route machine with rotary axischina jinan missile multihead cnc route machine with rotary axis
china jinan missile multihead cnc route machine with rotary axis
