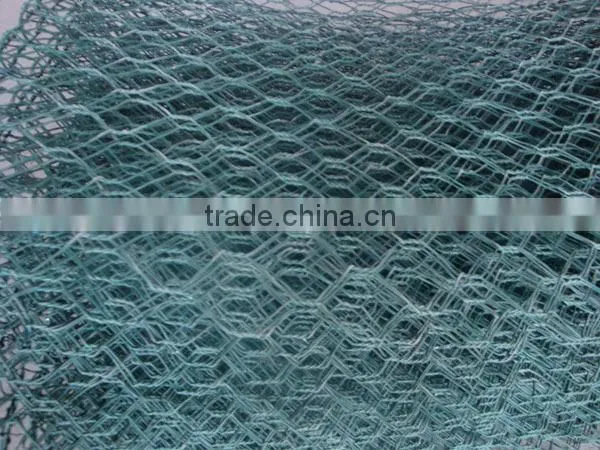

Help CenterStone Cage Wire Mesh
Related Products
galfan welded gabion box

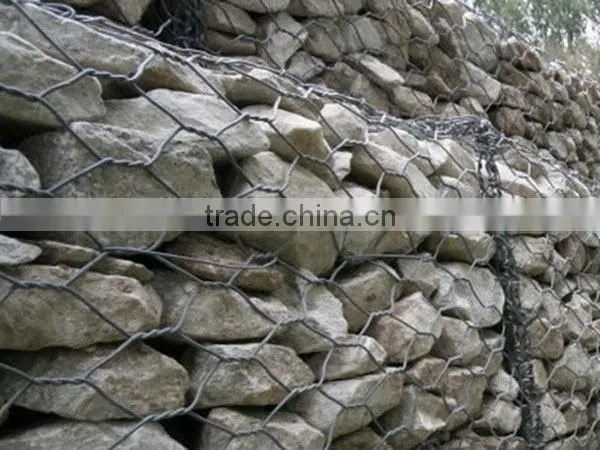

Welded gabion box is widely used in retaining wall structures, rockfall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures. And welded gabions are quicker and simpler to install than woven mesh gabions.
Welded gabion box is manufactured from cold steel wire for tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded gabion and welded PVC gabions. Gabion boxes are designed on the principle of mass earth retaining wall. The strength of the wire mesh helps to with- stand the forces generated by the retained soil.
Specifications:
Nominal Box sizes m) |
No. of diaphragms (no.) |
Capacity per box(m3) |
1.0x1.0x0.5 |
Nil |
0.50 |
1.0x1.0x1.0 |
Nil |
1.00 |
1.5x1.0x0.5 |
Nil |
0.75 |
1.5x1.0x1.0 |
Nil |
1.50 |
2.0x1.0x0.5 |
1 |
1.00 |
2.0x1.0x1.0 |
1 |
2.00 |
3.0x1.0x0.5 |
2 |
1.50 |
3.0x1.0x1.0 |
2 |
3.00 |
4.0x1.0x0.5 |
3 |
2.00 |
4.0x1.0x1.0 |
3 |
4.00 |
Common specifications
hole size:mm |
wire dia.mm |
box size:m |
7x7 |
3.2 |
0.5x0.5x1 |
5x5 |
4.0 |
1x1x1 |
5x10 |
2.5 |
1x1x2 |
Main Materials of Gabion box
Galvanized steel wire: High quality low carbon steel wire, wire diameter is 2.0MM-4.0MM, the tensile strength of steel wire is not less than 380Mpa. Hot dipped galvanized steel wire protects the surface. The thickness of galvanized protective layer can be produced according to customers’request. The largest mass of zinc coat is 300g/m2.
Galfan steel wire is a new international materials in recent years. Corrosion resistance of zinc coat is over 3 times than the traditional coat. The steel wire diameter is up to 2.0MM-4.0MM, the tensile strength of steel wire is not less than 1380Mpa.
Galvanized steel wire after PVC coated: high low-carbon steel wire, warped PVC and PE protective layer in galvanized steel wire surface, and then woven into all kinds of Gabion box. This protective layer will increase the protection of higher pollution environment. The choice of different color is suitable to surrounding environment.
Weight of galvanized wire:ASTM A-90
Strength tensile: ASTM A641-92 ASTM A 975-97
Weight of galvanized wire: ASTM A-90
Strength tensile: ASTM A641-92
Zinc coated weight: ASTM A-239,ASTM B-6
Elongation: ASTM A379-92

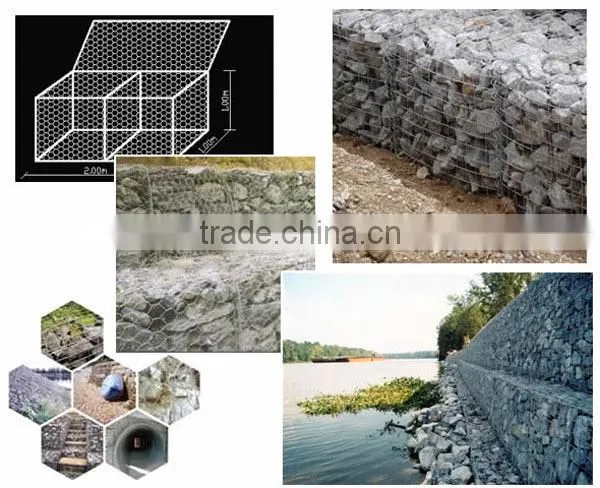

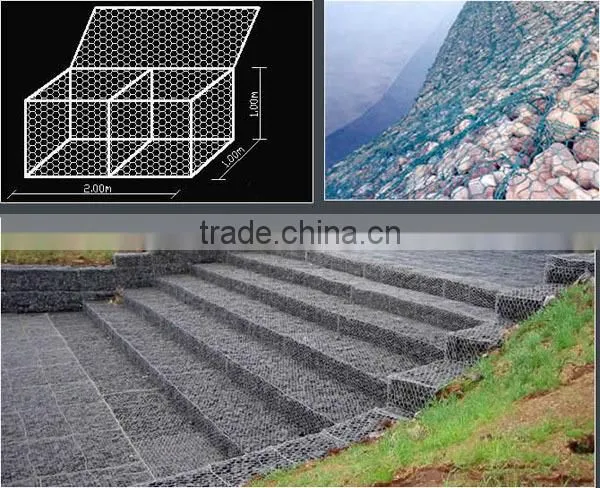

Application:

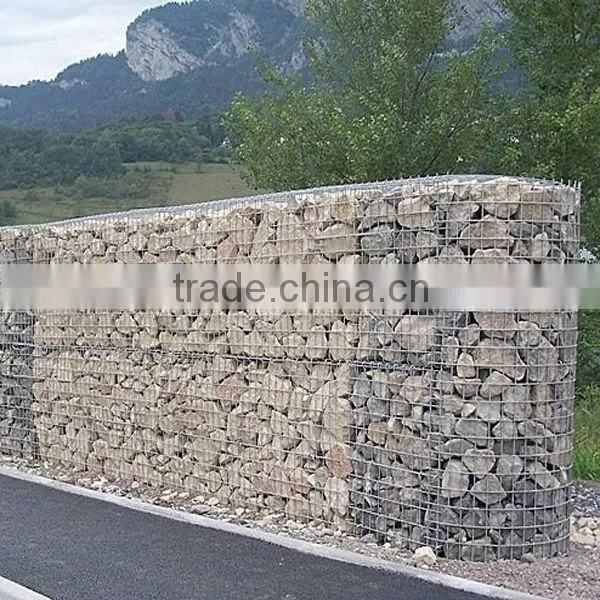

Different units of welded gabion box connect together can be used as gabion wall
Different units of welded gabion box connect together can be used for landscape construction
Welded gabion box inner line with geomat can be used for military bastion.
1.About the inquiry,pls let us know the specification,pictures of products,quantity,so that we can offer accordingly.
2.If you need us quote the Shipping Cost,pls let us know the Sea Port or the Air Port you prefered.
3.Our Payment Term is 30% Advance,70% after Copy of B/L by TT.
4.Price Term:FOB Tianjin or according to your requirements.

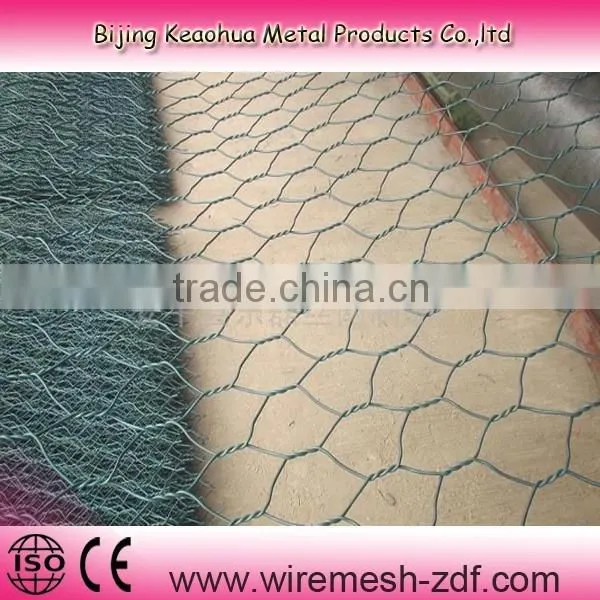

we also have the hexagonal gabion box , if you need , please contact with me .
Packaging of gabion wire mesh box

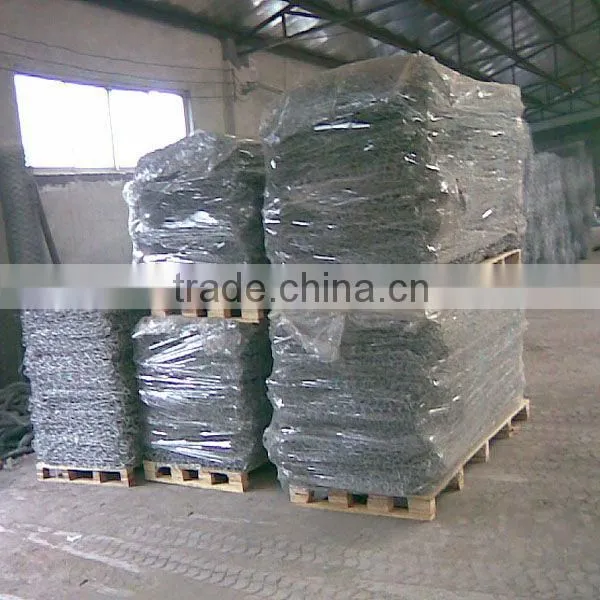

Packaging Detail: 100 PC into a bundle, plastic coated on a pallet
The Advantages of Our Company
Beijing KeAoHua Metal Products Co., Ltd. was founded in 2001 with a registered capital of 30 million RMB. Anping County XinLianSheng Wire Mesh Factory (started from 1999) is the core enterprise affiliated to KeAoHua, a big company engaging in manufacture, sales, processing and export. Our wire mesh products are not only sold all over the domestic market, but also exported to the United States, Canada, United Kingdom, Germany, Australia, Russia, South Africa, Sudan, and Southeast Asia and other countries. We have gradually built solid business relationship with our customers and sing high praise of our product quality.
Why Choose Us!
We are a professionl building material manufacturer and exporter. Very sincerely looking for long-term win-win,business here. Major exports include fiberglass mesh , wire mesh , welded wire mesh fence,etc.
We warmly welcome you to enquiry us, and also appreciate any of your comments!
