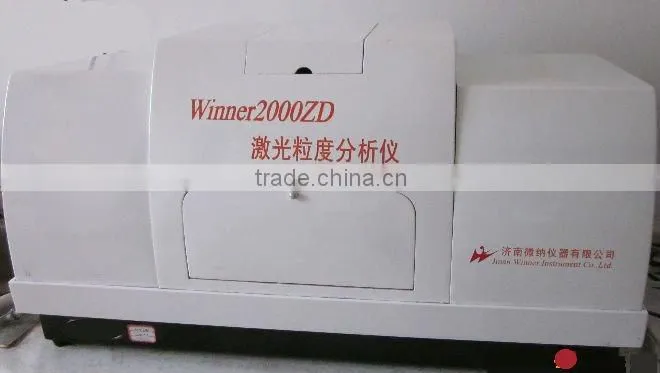

Winner2000ZD particle measurement & analysis instruments

Non-wooden packed. Protect the instrument zero friction.

Specifications

asurement & analysis instruments
2.Weight:22kg
3.Laser:He-Ne
4.Dispersing method:ultrasonic,stirring

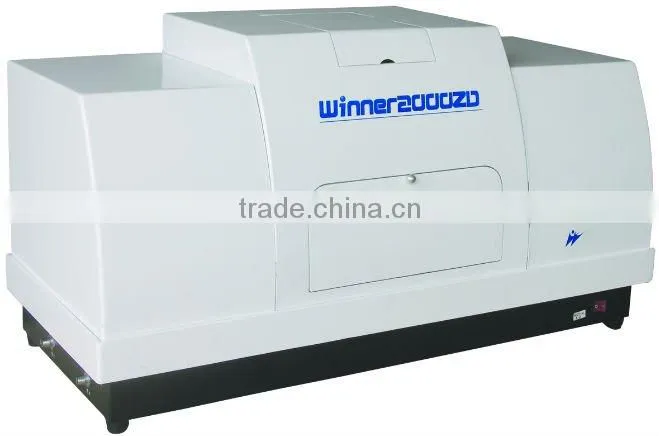

Winner2000ZD laser measurement & analysis instruments



Specifications

Model		Winner 2000ZD
Measurement range		0.1-40μm/0.6-120μm/1-300μm
Number of channels		32×3
Dispersing media		distilled water, alcohol and other transparent liquids
Execution standard		ISO13320,GB/T19077.1-2008,Q/JW001-2006
Sample dispersing		changeable supersonic time:1-4 minutes changeable stirring speed: 0-500rpm
Accuracy		<1%( standard reference material)
reproducibility		<1%( standard reference material)
Dispersing methods	ultrasonic	Frequency: 40KHz, Power: 35W, Time: 0-10min
	stirring	0-300rpm
Circulation		8L/min, 10W
Sample chamber		350ml
Micro sample chamber		10ml (optional)
Operation mold		Wet, full-automatic, automatic centering
Laser		He-Ne λ=632.8nm, power>2mW
Power Source		ac 220/110v          50/60hz
Dimension		855mm×360mm×444mm
Weight		35kg

Main Features:

l        Advanced design of light path: A patented technique of Fourier transform of converging light released the scattered light at large-scattering-angles from the restriction of the aperture of the Fourier lens. The focal length is reduced to enhance the resolution of the instrument.

l         Built-in dispersing units: We carefully aligned the stirring set-up, the ultrasonic dispersing unit and the sample circulation pipes, and fixed them inside the instrument. Such a built-in design effectively prevents the inhomogeneous dispersion and sedimentation of big particles, which can be observed in the designs that these dispersing units are separated from the instruments, where the sample circulation pipes are therefore too long.

l         Unconstrained fitting techniques: The particle analysis software uses a unique unconstrained data fitting technique that we developed to obtain data of unknown size distribution, this is particularly important for researchers.

l         Micro sample chamber (optional): The capacity of the sample chamber is as small as only 10ml. This helps with measuring expensive/precious samples, or samples difficult to be dispersed within medium.

l         Modern measurement control: Users can perform all measurement procedures by simply operating on the PC and have ideal results in a very short time.

l         User-friendly Operation: Users can choose between one of the two operating modes: the manual mode and the automatic mode, to measure according to the sample features. In some conditions (e.g. the sample have unknown features or there are special requirements for the measurements), users can make a test measurement in the manual mode first, and after having an idea of the sample features and the measurement conditions, measure the samples in the automatic mode.

l         Fully automatic alignment: A precise four phase hybrid stepping motor automatically aligns the optical path and can adjust it at any moment. This releases users from manual adjusting the optical path and improved accuracy and stability of the measurement results.

l         Quick measurements: In the automatic mode, all, except adding in samples, operation procedures are performed automatically which significantly reduces the time for measurements.

l       Data analysis: Errors in the data are rejected and the measurement results are automatically processed. Manual data processing is not necessary and the output is more standard.



Applications

For measurements performed on cements, ceramics ,drugs, coatings, dyes, paints, fillers, chemicals, catalysts, abrasives, lubricants, coal powder, muds and sands, dusts, cells, bacteria, foods, additives, pesticides, explosives, graphite, photosensitive materials, fuels, metal and non-metal
