High Abrasion Resistance Rubber Conveyor Belt For Industrial conveyoring system

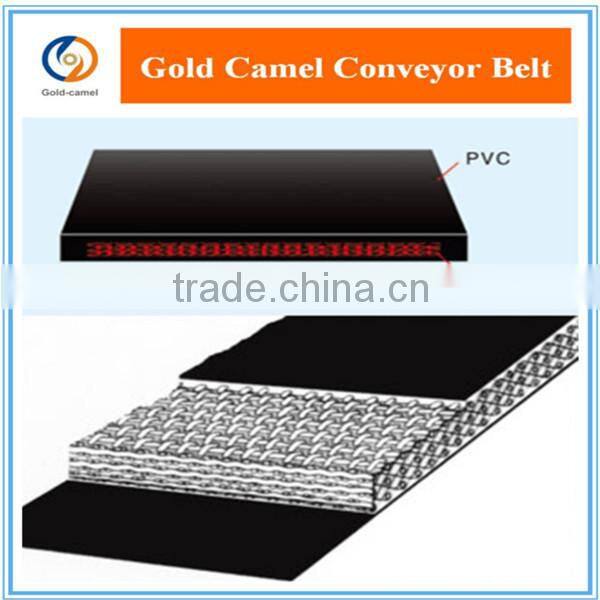

1. Polyester conveyor belt, also called EP or PN conveyor belt, whose tension resistant body is canvas woven by polyester in warp and polyamide in weft.
2. The belt has the characteristics of low elongation in warp and good troughability in weft, good water resistance, good wet strength, suitable for medium, long-distance and heavy-load transportation of materials
3.Because of the high initial modulus of polyester, the belt can choose a relative low safety factor.
4.Suitable for Medium, Long distance and Heavy-load transportation of materials like Aggregate, Cement, Coal, Foundry Coal, Grains, Hard Rock, Wood products, Sand and Gravel, Steel products, etc.
Specification Availability:
|
Belt type
|
Fabric type
|
Single Fabric strength (N/mm)
|
Rubbercover thickness (mm)
|
Ply
|
Belt width (mm)
|
|
Top rubber |
Bottom rubber |
|||||
|
Cotton Canvas (CC) conveyor belt |
CC-56 | 56 |
3.0
4.5
6.0 |
1.5
3.0
6.0 |
2-10 | 300-2500 |
|
Nylon (NN)/Polyester(EP) conveyor belt |
NN/EP-100 | 100 | ||||
| NN/EP-125 | 125 | |||||
| NN/EP-150 | 150 | |||||
| NN/EP-200 | 200 | |||||
| NN/EP-250 | 250 | |||||
| NN/EP-300 | 300 | |||||
| NN/EP-400 | 400 | |||||
| NN/EP-500 | 500 | |||||
| NN/EP-600 | 600 | |||||
Rubber Cover Grade & Standard No:
| Type | Rubber Cover Type |
Tensile strength at break(N/mm2) |
Elongation at break % |
Abrasion mm3 |
Standards Adopted |
|
Abrasion Resistant |
RCB-AR-M | 24 | 450 | 120 |
DIN22102-X,AS1332-M, BS490-M,SABS1170-3-M |
| RCB-AR-Y | 20 | 400 | 150 | DIN22102-Y | |
| RCB-AR-W | 18 | 400 | 90 | DIN22102-W | |
| RCB-AR-N18 | 18 | 450 | 200 | JIS6322-S, BS490-N | |
| RCB-AR-N | 17 | 400 | 200 | RMA-I, AS1332-N | |
| RCB-AR-A | 17 | 400 | 70 | AS1332-A | |
| RCB-AR-Z | 15 | 400 | 250 | DIN22102-Z,JISK6322-A | |
| RCB-AR-II | 14 | 350 | 280 | RMA-II, JISK6322-A | |
| RCB-AR-L | 10 | 350 | 300 | GB8974-1987,JISK6322-L |
View more products, please click on images below:
Having specialized in mechanical conveyor systems products for more than 15 years,Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Industry Group,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.
Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Rollers&Pulleys, Chains&Sprockets, Rubber Conveyor Belts, V-belts,Timing Belts,Flat Transmission Belts,Fasteners and Clamps; Elevator & Fittings,specially HDPE/Metal Bucket,Screw Flights,Crusher Machines and Fittings,ect.
