Slip resistant conveyor belt

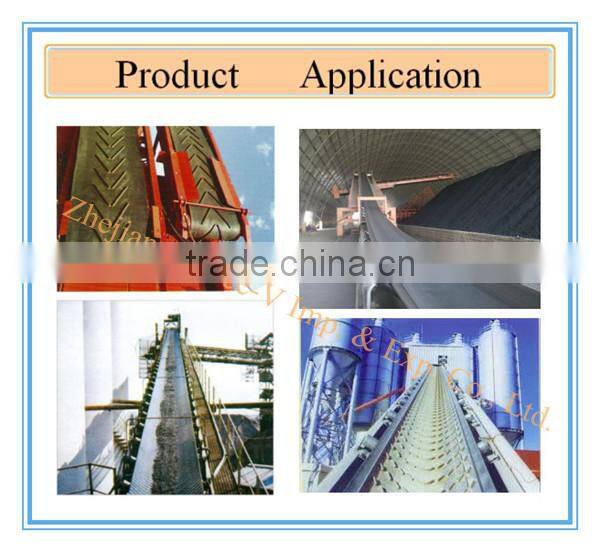

Application:
When conveying decline angle is relatively big, the materials on common belt is easily slippery, in this case, A Shape Conveyer Belt should be selected.
Shape Conveyer Belt is suitable for conveying coal, mineral sand, crops etc. materials and also ball type materials.
The biggest conveying angle can reach 28 degree; when conveying soft packaging materials are applied, maximum 35 degree angle can be reached.
Features:
1.Big Conveying Angle, Not Easy Slippery.
2.Adjustable bar distance, different height and wide bar can be used based on customer's requirement.
3.Strong Bonding Strength Between Bars and Belt Body.

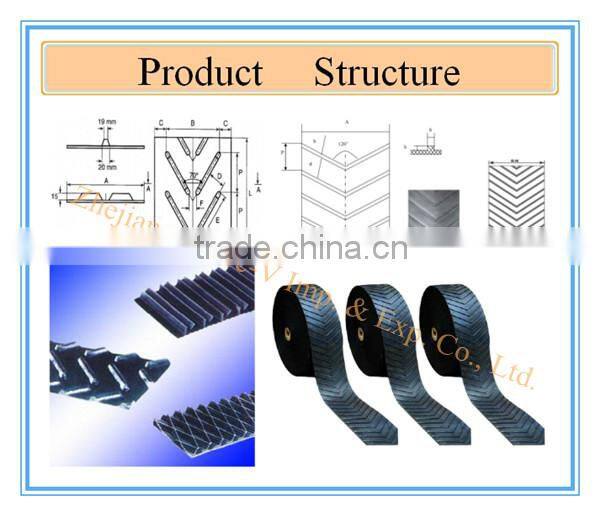

Technical Features:
| NO. | Belt Width | Chevron Width | Pitch |
Top Width |
Bottom Width |
| 1 | 400-550 | 300 | 146 | 19 | 20 |
| 2 | 600-650 | 450 | 219 | 19 | 20 |
| 3 | 700-1000 | 600 | 328 | 19 | 20 |
| 4 | 400-850 | 380 | 250 | 12 | 20 |
| 5 | 600-650 | 450 | 225 | 15 | 20 |
Performance of Cover Rubber( for General Application):
| Cover Grade | Tensile Strength | Elongation at Break | Abrasion Loss |
Change Rate of Tensile Strength & Elongation after Aging(%) |
|
| (MPa)>= | (Kg/cm2) | ||||
| Ordinary Applications(L) | 15.0 | 150.0 | 350 | 200 | -25~+25 |
| Abrasion Resistant(D) | 18.0 | 180.0 | 400 | 100 | -25~+25 |
| Extreme Tear Resistant (H) | 24.0 | 240.0 | 450 | 120 | -25~+25 |
View more products, please click on images below:
Having specialized in mechanical conveyor systems products for more than 15 years,Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Industry Group,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.
Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Rollers&Pulleys, Chains&Sprockets, Rubber Conveyor Belts, V-belts,Timing Belts,Flat Transmission Belts,Fasteners and Clamps; Elevator & Fittings,specially HDPE/Metal Bucket,Screw Flights,Crusher Machines and Fittings,ect.
