Rubber Conveyor Belt For Quarry And Mining Industry
Product features:
The product is made of Cotton/Nylon/EP canvas and finished through the process of assembling, vulcanizing etc, suitable for conveying materials that require a flame resistant and static conductive belts in power, chemical, light, metallurgical and grain processing industries, under the condition of flammable or explosive environment above coal mines.
| Adhesive tape category | Fabric model | Single-make fabric strength N/mm | Covering thickness mm | number of cloth layer | Production width scope mm | Production length m-roll | |
| Cotton canvas | CC-58 | 56 | 3 | 1.5 | 3~12 | 3~12 | 3~12 |
| Nylon | NN-100 | 100 | 2~10 | 300-2600 | 200 | ||
| NN-125 | 125 | ||||||
| NN-150 | 150 | ||||||
| NN-200 | 200 | ||||||
| NN-250 | 250 | ||||||
| NN-300 | 300 | ||||||
| NN-400 | 400 | ||||||
| NN-500 | 500 | ||||||
| NN-600 | 600 | ||||||
| Polyester+Nylon | EP100 | 100 | 2~8 | 300-2600 | 200 | ||
| EP125 | 125 | ||||||
| EP160 | 160 | ||||||
| EP200 | 200 | ||||||
| EP250 | 250 | ||||||
| EP300 | 300 | ||||||
| EP350 | 350 | ||||||
| EP400 | 400 | ||||||
| EP500 | 500 | ||||||
| EP600 | 600 | ||||||
Rubber Cover Grade & Standard No:
Type |
Rubber Cover Type |
Tensile strength at break(N/ mm2 ) |
Elongation at break% |
Abrasion mm3 |
|
Abrasion Resistant |
RCB-AR-M |
24 |
450 |
120 |
RCB-AR-Y |
20 |
400 |
150 |
|
RCB-AR-W |
18 |
400 |
90 |
|
RCB-AR-N18 |
18 |
450 |
200 |
|
RCB-AR-N |
17 |
400 |
200 |
|
RCB-AR-A |
17 |
400 |
70 |
|
RCB-AR-Z |
15 |
400 |
250 |
|
RCB-AR-Ⅱ |
14 |
350 |
150 |
|
RCB-AR-L |
10 |
350 |
300 |
|
Oil Resistant |
RCB-FOR |
12 |
300 |
300 |
RCB-MOR |
15 |
450 |
250 |
|
RCB-LOR |
17 |
450 |
200 |
|
Heat Resistant |
RCB-HR-T1-100°C |
17 |
450 |
200 |
RCB-HR-T2-120°C |
15 |
400 |
250 |
|
RCB-HR-T3-150°C |
13 |
350 |
250 |
|
RCB-HR-T4-180°C |
11 |
350 |
280 |
|
RCB-HR-T4-250°C |
10 |
350 |
300 |
|
RCB-HR-T4-400°C |
10 |
350 |
300 |
|
FR/AR/AS Resistant |
RCB-ARAS |
18 |
450 |
200 |
RCB-FRAS |
14 |
400 |
250 |
|
RCB-FR |
12 |
350 |
300 |
|
Cold Resistant |
RCB-CR-T1-30°C |
17 |
350 |
300 |
RCB-CR-T2-50°C |
14 |
300 |
300 |
|
|
Chemical Resistant |
RCB-ANTI-ACID |
14 |
400 |
250 |
RCB-ANTI-ALKALI |
14 |
400 |
250 |
|
Food |
RCB-FDA |
15 |
450 |
300 |
Fire Resistant |
RCB-FR-PVG |
15 |
350 |
200 |
RCB-FR-PVC |
13 |
300 |
200 |
Recommend Min. Pully Dia. of conveyor:
| Roller diameter mm | Number of | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
| Adhesive tape category | Canvas model | canvas layer | |||||||||
| Cotton canvas conveyor | CC-56 | 400 | 500 | 600 | 800 | 1000 | 1250 | 1250 | 1400 | ||
| Nylon conveyor | NN-100 | 200 | 250 | 315 | 400 | 500 | 360 | 800 | 1000 | 1250 | |
| NN-125 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | ||
| NN-150 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | ||
| NN-200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1400 | ||
| NN-250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1250 | 1400 | ||
| NN-300 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1400 | 1400 | 1600 | ||
| NN-400 | 500 | 630 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | 1800 | ||
| NN-500 | 630 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | ||||
| NN-600 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | 2000 | ||||
| EP conveyor | EP100 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | |||
| EP125 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | ||||
| EP160 | 250 | 400 | 500 | 630 | 800 | 1000 | 1250 | ||||
| EP200 | 315 | 500 | 630 | 800 | 1000 | 1250 | 1400 | ||||
| EP250 | 400 | 630 | 630 | 1000 | 1250 | 1400 | 1600 | ||||
| EP300 | 500 | 630 | 800 | 1000 | 1250 | 1400 | 1800 | ||||
| EP400 | 630 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | ||||
| EP500 | 800 | 1000 | 1250 | 1400 | 1600 | ||||||
| EP600 | 1000 | 1250 | 1400 | 1600 | 1800 | ||||||

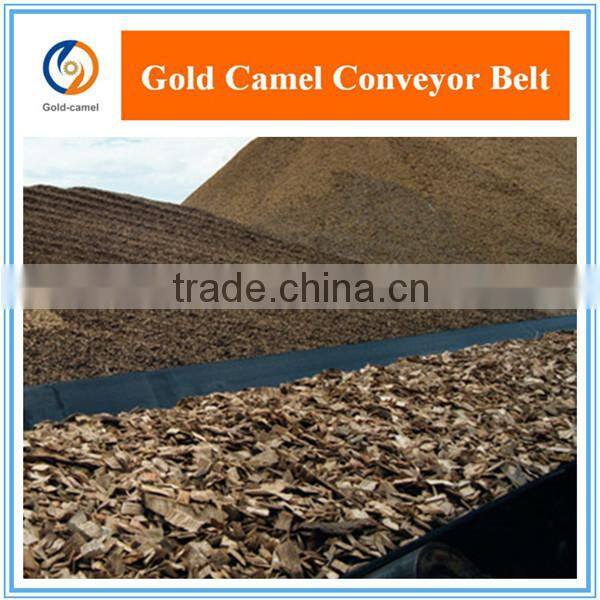

Application of conveyor belts
Cold resistant conveyor belt

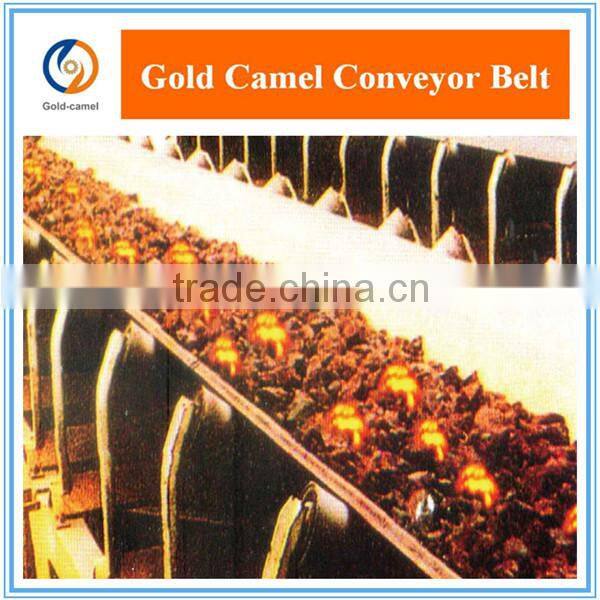

Heat resistant conveyor belt

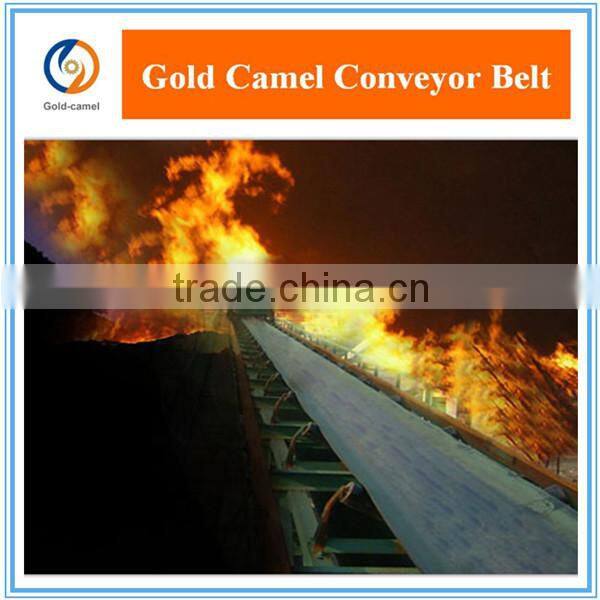

Fire resistant conveyor belt
Oil resistant conveyor belt
Abrasion resistant conveyor belt
anti-static
View more products, please click on images below:
Company:
Having specilized in mechanical conveyor systems products for more than 15 years,Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Industry Group,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.

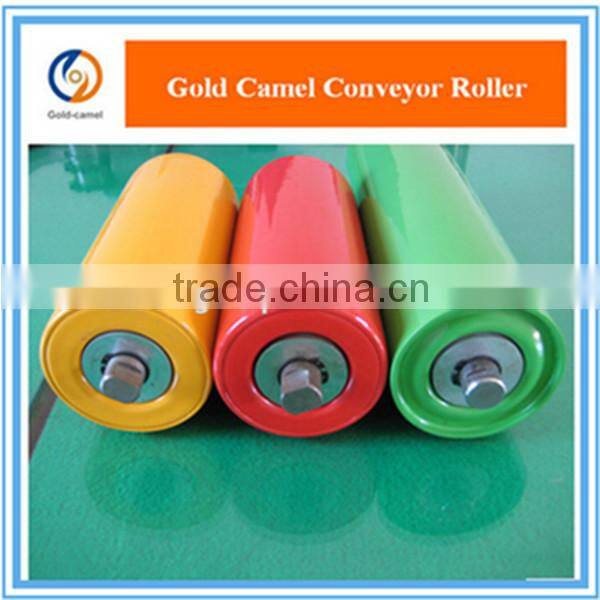

Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Rollers&Pulleys, Chains Sprockets, Rubber Conveyor Belts, V-belts,Timing Belts,Flat Transmission Belts,Fasteners and Clamps; Elevator & Fittings,specially HDPE/Metal Bucket,Screw Flights,Crusher Machines and Fittings,ect.
How to order your rubber belt:
Step1: Cover rubber grade,such as 18MPa,24Mpa,or BS490-M, BS490-N or working conditions
Step2: Dimension (mm or inch),width,top and bottom cover rubber, length
Step3: Fabric type and plies, EP or NN
Step4: Single fabric strength at breaking, such as EP100,EP125
Step5: Whether you have enquiries or questions, please feel freely to contact us
Sample:
Normally costs of samples and freight is charged. Sample costs shall be refunded to customer upon bulk orders. Samples will be shipped via express like DHL/UPS etc.. upon receipt of sample costs.
