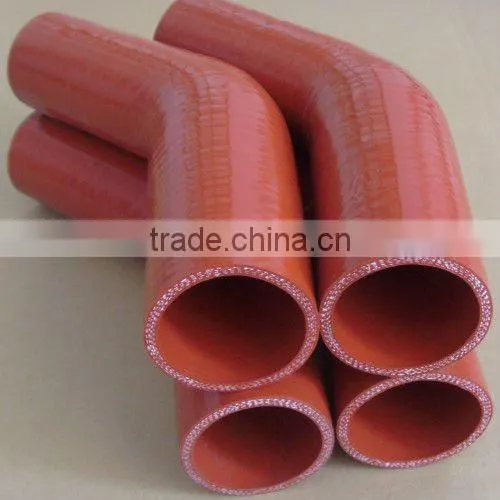

Silicone Elbow Hose, Red, High Quality
US$ 1.5 - 10
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
PINLIDE
Payment & Shipping
Payment Methods:
Port of Shipment:
Port of Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hebei, China
Brand Name
PINLIDE
Specifications
OE Quality Silicone HoseOzone, Ageing Resistance
Hot Air Resistance
ISO/TS 16949 Certificated
Silicone Hose Main Specifications:
- Temperature: -50 °C to +170 °C
- Working Pressure: 0.5Mpa(5 Bar)
- Reinforcement: 3Ply-5Ply polyester fabric.
- Inner Diameter Sizes: 5 mm minimum to 175mm maximum
- Color: Blue Red Black Green or the combination of two of them
- Standards: Meet the requirements of the SAEJ20R1 class A
- Features: Hot water, Hot Air, Hot Steam, Coolant, Ozone Resistance.
Silicone Hose Line:
- Coolant & Radiator Silicone Hose
- Silicone Heater Hose
- Turbo & Intercooler Silicone Hose
- Wrapped Silicone Hose
- Flex Silicone Hose
Most Popular Sizes:
| Item No. | Inside Diameter | Leg Length | Ply | Weight ( g) |
| HADER01 | 1/2" > 5/8" (13mm > 16mm) | 4" (102mm) | 4 | 83 |
| HADER02 | 1/2" > 3/4" (13mm > 19mm) | 4" (102mm) | 4 | 87 |
| HADER03 | 5/8" > 3/4" (16mm > 19mm) | 4" (102mm) | 4 | 95 |
| HADER04 | 5/8" > 7/8" (16mm > 22mm) | 4" (102mm) | 4 | 100 |
| HADER05 | 3/4" > 7/8" (19mm > 22mm) | 4" (102mm) | 4 | 106 |
| HADER06 | 3/4" > 1" (19mm > 25mm) | 4" (102mm) | 4 | 112 |
| HADER07 | 3/4" > 1 1/4" (19mm > 32mm) | 4" (102mm) | 4 | 127 |
| HADER08 | 7/8" > 1 3/8" (22mm > 35mm) | 4" (102mm) | 4 | 139 |
| HADER09 | 1" > 1 1/4" (25mm > 32mm) | 4" (102mm) | 4 | 139 |
| HADER10 | 1" > 1 1/2" (25mm > 38mm) | 4" (102mm) | 4 | 152 |
| HADER11 | 1" > 1 3/4" (25mm > 45mm) | 4" (102mm) | 4 | 167 |
| HADER12 | 1 1/8" > 1 1/4" (28mm > 32mm) | 4" (102mm) | 4 | 146 |
| HADER13 | 1 3/16" > 1 3/8" (30mm > 35mm) | 4" (102mm) | 4 | 156 |
| HADER14 | 1 3/16" > 1 7/8" (30mm > 48mm) | 4" (102mm) | 4 | 183 |
| HADER15 | 1 1/4" > 1 3/8" (32mm > 35mm) | 4" (102mm) | 4 | 160 |
| HADER16 | 1 1/4" > 1 1/2" (32mm > 38mm) | 4" (102mm) | 4 | 171 |
| HADER17 | 1 1/4" > 1 3/4" (32mm > 45mm) | 4" (102mm) | 4 | 181 |
| HADER18 | 1 3/8" > 1 1/2" (35mm > 38mm) | 4" (102mm) | 4 | 173 |
| HADER19 | 1 1/2" > 1 3/4" (38mm > 45mm) | 4" (102mm) | 4 | 194 |
| HADER20 | 1 1/2" > 2" (38mm > 51mm) | 4" (102mm) | 4 | 189 |
| HADER21 | 1 3/4" > 2" (45mm > 51mm) | 4" (102mm) | 4 | 221 |
| HADER22 | 1 7/8" > 2 1/8" (48mm > 54mm) | 4" (102mm) | 4 | 233 |
| HADER23 | 2" > 2 1/4" (51mm > 57mm) | 4" (102mm) | 4 | 246 |
| HADER24 | 2" > 2 3/8" (51mm > 60mm) | 5" (127mm) | 4 | 314 |
| HADER25 | 2" > 2 1/2" (51mm > 63mm) | 5" (127mm) | 4 | 321 |
| HADER26 | 2" > 2 3/4" (51mm > 70mm) | 5" (127mm) | 4 | 340 |
| HADER27 | 2" > 3" (51mm > 76mm) | 5" (127mm) | 4 | 355 |
| HADER28 | 2 1/4" > 2 1/2" (57mm > 63mm) | 5" (127mm) | 4 | 337 |
| HADER29 | 2 3/8" > 2 9/16" (60mm > 65mm) | 5" (127mm) | 4 | 350 |
| HADER30 | 2 3/8" > 3" (60mm > 76mm) | 5" (127mm) | 4 | 378 |
| HADER31 | 2 3/8" > 3 1/8" (60mm > 80mm) | 5" (127mm) | 4 | 389 |
| HADER32 | 2 1/2" > 2 3/4" (63mm > 70mm) | 5" (127mm) | 4 | 371 |
| HADER33 | 2 1/2" > 3" (63mm > 76mm) | 5" (127mm) | 4 | 386 |
| HADER34 | 2 3/4" > 3" (70mm > 76mm) | 5" (127mm) | 4 | 404 |
| HADER35 | 2 3/4" > 3 1/8" (70mm > 80mm) | 5" (127mm) | 4 | 415 |
| HADER36 | 3" > 3 1/8" (76mm > 80mm) | 5" (127mm) | 4 | 430 |
| HADER37 | 3" > 3 1/2" (76mm > 89mm) | 6" (152mm) | 4 | 543 |
| HADER38 | 3" > 4" (76mm > 102mm) | 6" (152mm) | 4 | 583 |
| HADER39 | 3 1/2" > 4" (89mm > 102mm) | 6" (152mm) | 4 | 625 |
We can print your logo!
