HR-T1 100C Conveyor Belt

FOB Price

USD $4.2 - $40 / Meter

30 Meters(Min.Order)

Supply Ability 1000 Ton / Tons per Month
Port Ningbo/Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Gold-Camel
Model Number	HR-T1 100C

Product Description

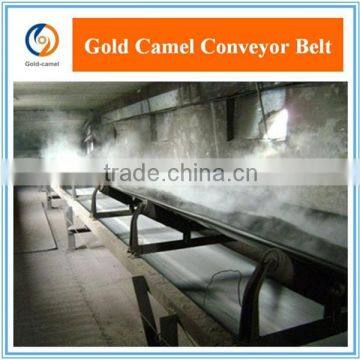

HR-T1 100C Conveyor Belt

Product Description

Product features:
Suitable for conveying hot material like powder or clump materials at high temperature.
Ideal for conveying sintered ores, cokes, soda ash, chemical fertilizer, slag and foundry.
It can resist high temperature.
The rubber compound used in the cover have been designed to avoid premature aging due to contact with any source of heat.
Heat resistant conveyor belt can be divided into three types according to working temperature range: HRT-1 =100°C, HRT-2=125°C, HRT-3=150°C, HRT-4 180°C, HRT-4 250°C , HRT-4 400°C .

Specification Availability:

Belt type	Fabric type	Single Fabric strength (N/mm)	Rubber cover thickness (mm)		Ply	Belt width(mm)
			Top rubber	Bottom rubber
Nylon (NN)/ Polyester(EP) conveyor belt	NN/EP-100	100	3-18	1.5-10	2-10	300-2500
	NN/EP-125	125
	NN/EP-150	150
	NN/EP-200	200
	NN/EP-250	250
	NN/EP-300	300
	NN/EP-400	400
	NN/EP-500	500
	NN/EP-600	600

Rubber Cover Grade & Standard No:

Standard No		Cover rubber
Standard No		Tensile strength MPa	Elongation at break %	Abrasion mm3
DIN22102	Z	15	350	250
	W	18	400	90
	Y	20	400	150
	X	25	450	120
AS1332	N17	17	400	200
AS1332	N24	24	450	125
RMA	I	17	400
RMA	II	14	400
SANS1173	A	18	400	70
	C	20	400	150
	M	25	450	120
	N	17	400	150

Classfication by use:

Type	Rubber Cover Type	Tensile strength at break(N/mm²)	Elongation at break %	Abrasion mm³
Abrasion Resistant	RCB-AR-M	24	450	120
	RCB-AR-Y	20	400	150
	RCB-AR-W	18	400	90
	RCB-AR-N18	18	450	200
	RCB-AR-N	17	400	200
	RCB-AR-A	17	400	70
	RCB-AR-Z	15	400	250
	RCB-AR-II	14	350	280
	RCB-AR-L	10	350	300
Oil Resistant	RCB-FOR	12	300	300
	RCB-MOR	15	450	250
	RCB-LOR	17	450	200
Heat Resistant	RCB-HR-T1-100^oC	17	400	250
	RCB-HR-T2-120^oC	15	350	250
	RCB-HR-T3-150^oC	13	350	250
	RCB-HR-T4-180^oC	11	350	280
	RCB-HR-T5-250^oC	10	350	300
	RCB-HR-T6-400 ^oC	9	350	300
FR/AR/AS Resistant	RCB-ARAS	18	450	200
	RCB-FRAS	14	400	250
	RCB-FR	12	350	300
Cold Resistant	RCB-CR-T1-- -30^oC	17	350	300
Cold Resistant	RCB-CR-T2-- -50^oC	14	300	300
Chemicl Resistant	RCB-ANTI-ACID	14	400	250
Chemicl Resistant	RCB-ANTI-ALKALI	14	400	250

Our Services

1. Delivery --- On time

Your times is expensive!

2. Quality ---- Strictly Control System of Quality

We’ll take photos to you about every procedure,packing,loading.

Packaging & Shipping

Packaging Detail:

wooden core cover with pp-cloth or according to the customers' needs.

Shipment

a. By express/air: small quantity order.

b. By sea: container load.

Delivery Detail:

about 20 working days from order.

Loading port

Ningbo/ Shanghai.

Company Information

Having specialized in mechanical conveyor systems products for more than 15 years,Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Industry Group,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.

Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Rollers&Pulleys, Chains&Sprockets, Rubber Conveyor Belts, V-belts,Timing Belts,Flat Transmission Belts,Fasteners and Clamps; Elevator & Fittings,specially HDPE/Metal Bucket,Screw Flights,Crusher Machines and Fittings,ect.

FAQ

1.Payment terms

T/T/ Western Union/ MoneyGram/ Paypal/L/C at sight/ Alipay/ D/A/ D/P: 30% in advance, balance before loading the goods. Other payment terms can be negotiated.

2.Prices

PRICE just for reference. The final prices (FOB, CIF, CNR) prices are according to order quantity, payment terms, delivery time, packaging, etc.

FAQ:

How to order your rubber belt:
Step1: Cover rubber grade,such as N17, M24 or working conditions
Step2: Dimension (mm or inch),width,top and bottom cover rubber, length
Step3: Fabric type and plies, EP or NN

Step4: Single fabric strength at breaking, such as EP100,EP125
Step5: Whether you have enquiries or questions, please feel freely to contact us

Sample:

Normally costs of samples and freight is charged. Sample costs shall be refunded to customer upon bulk orders. Samples will be shipped via express like DHL/UPS etc.. upon receipt of sample costs.

We also provide mechanical splicing.
Mainly the Rivet hinged belt fastener R2,R5-1/2,R6.
Detail specification as below

Model	Belt thickness	Belt tensile strength
Model	mm	KN/m,N/mm
R2	6-9	≤800
R5-1/2	8-16	≤1600
R6	10-18	≤2000
