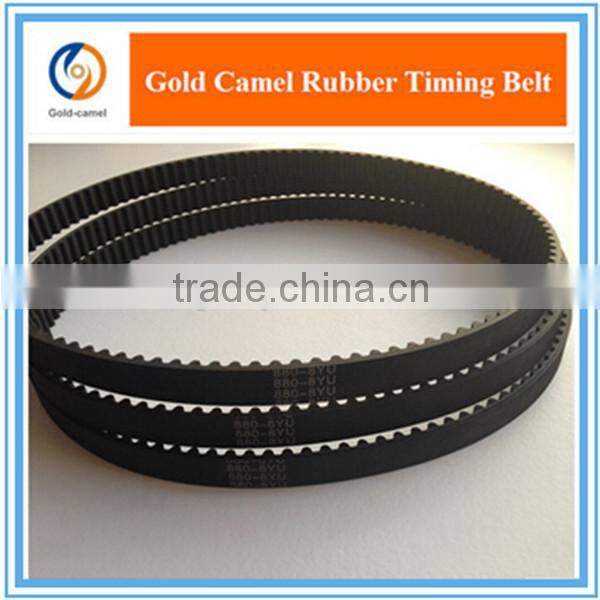

Industrial Rubber Timing Belt with Double Sides Tooth
1.Industrial timing belt

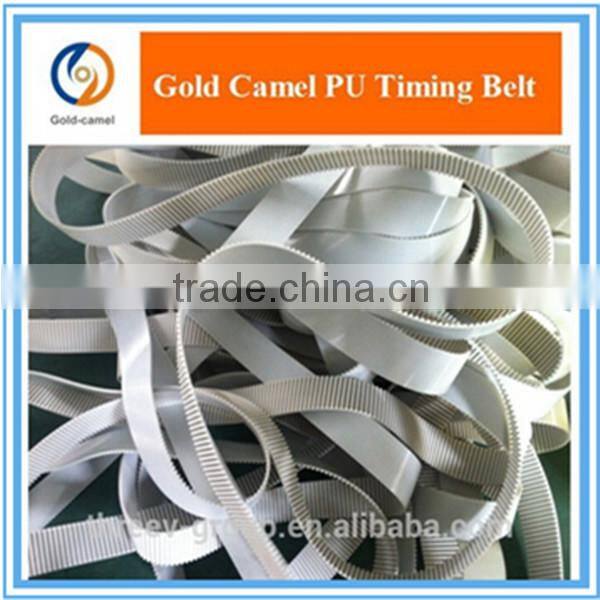

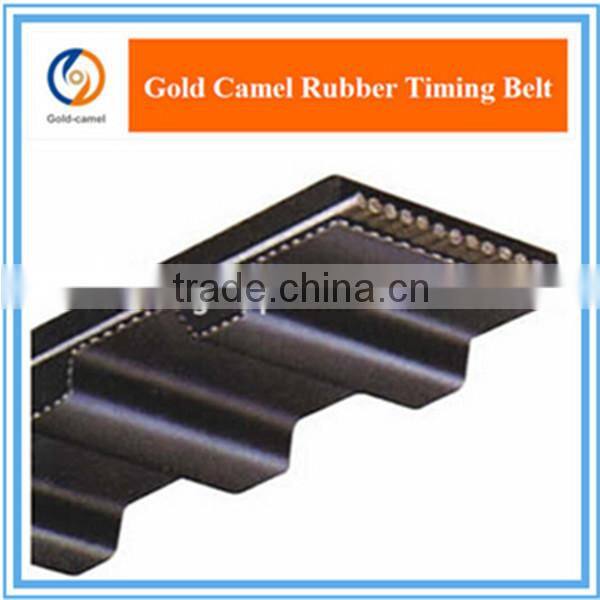

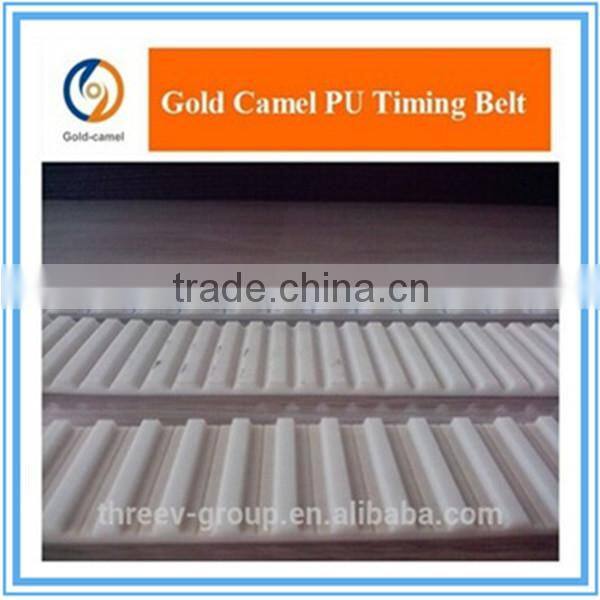

Our timing belts are manufactured in imported neoprene rubber and PU materials which have various tension members by vulcanize process. High quality raw material and the advanced craft unify enable the product to have the high strength and the good flexibility. Especially suitable for power transmission systems.
Specification Availability:
T Type synchronous belt(mm)
| Type | Pitch | Tooth height | Belt thickness | Angle |
| MXL | 2.032 | 0.51 | 1.14 | 40 |
| XXL | 3.175 | 0.76 | 1.52 | 50 |
| XL | 5.080 | 1.27 | 2.30 | 50 |
| L | 9.525 | 1.91 | 3.60 | 40 |
| H | 2.70 | 2.29 | 4.30 | 40 |
| XH | 22.225 | 6.35 | 11.20 | 40 |
| XXH | 31.750 | 9.53 | 15.70 | 40 |
| T2.5 | 2.5 | 0.7 | 1.30 | 40 |
| T5 | 5 | 1.20 | 2.20 | 40 |
| T10 | 10 | 2.50 | 4.50 | 40 |
| T20 | 20 | 5 | 8.00 | 40 |
| A5 | 5 | 1.2 | 2.70 | 50 |
| AT10 | 10 | 2.5 | 5.00 | 50 |
| AT20 | 20 | 5 | 8.00 | 50 |

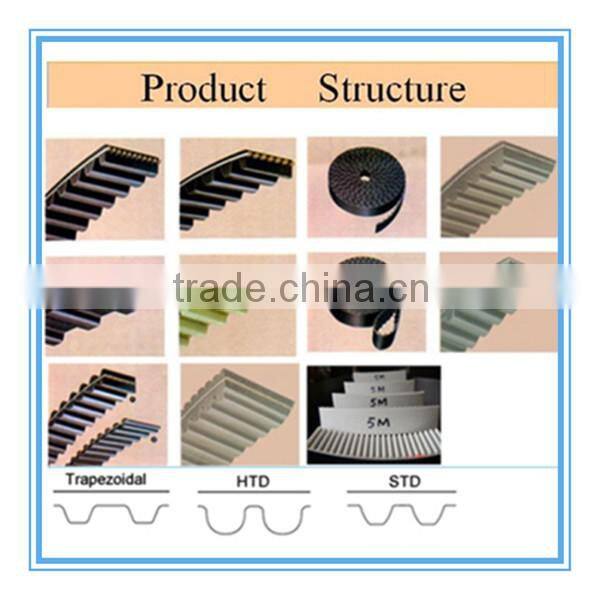

Arc tooth synchronous belt(mm)
| Gear Code | Type | Pitch | Tooth Heigh | Belt Thickness |
| HTD | 2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.17 | 2.4 | |
| 5M | 5 | 2.06 | 3.8 | |
| 8M | 8 | 3.36 | 6.00 | |
| 14M | 14 | 6.02 | 10.00 | |
| 20M | 20 | 8.4 | 13.20 | |
| STD | S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.20 | |
| S4.5M | 4.5 | 1.71 | 2.81 | |
| S5M | 5 | 1.91 | 3.4 | |
| S8M | 8 | 3.05 | 5.3 | |
| S14M | 14 | 5.3 | 10.2 | |
| RPP/HPPD | RP2M | 2 | 0.76 | 1.36 |
| RP3M | 3 | 1.15 | 1.9 | |
| RP5M | 5 | 1.95 | 3.5 | |
| RP8M | 8 | 3.2 | 5.5 | |
| RP14M | 14 | 6.00 | 10 |
Double Sided Timing Belt(mm)
| Type | W | T |
| D-MXL | 0.508 | 1.53 |
| D-XL | 0.508 | 3.05 |
| D-L | 0.762 | 4.56 |
| D-H | 1.372 | 5.95 |
| D-XH | 2.794 | 15.49 |
| D-XXH | 3.048 | 22.11 |
| D-T2.5 | 0.6 | 2 |
| D-T5 | 1 | 3.4 |
| D-T10 | 2 | 7 |
| D-T20 | 3 | 13 |
| D-AT10 | 2 | 7 |
| HTD.DA-3M | 0.76 | 3.1 |
| HTD.DA-5M | 1.143 | 5.26 |
| HTD.DA-8M | 1.372 | 8.17 |
| HTD.DA-14M | 2.8 | 14.84 |
| HTD.DA-S8M | 1.372 | 7.48 |
2.Automotive timing belt

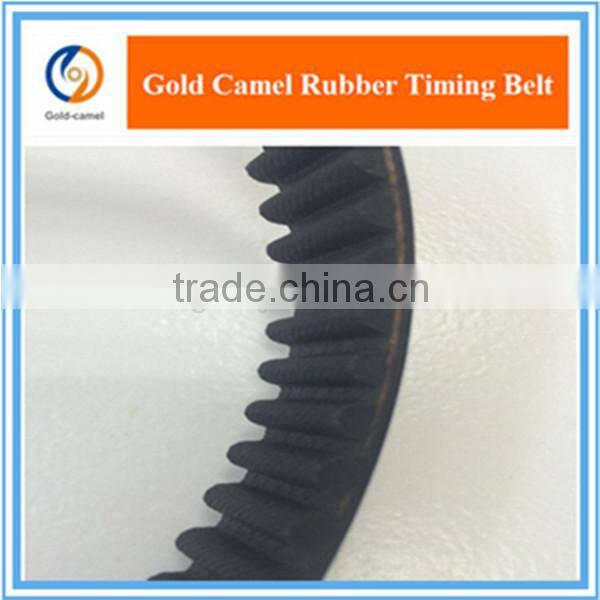

Automotive timing belt uses CR or HNBR as main rubber material, produced strictly according to technical standard. The belt has the feature of perfect tooth shape, long service life, less noise, high force of driving, better driving precision, better wearable performance.
Specification Availability:
| Type | pb | ht | hs |
| MR | 9.525 | 3.54 | 5.69 |
| MY | 8.00 | 3.06 | 5.21 |
| YU | 8.00 | 3.11 | 5.20 |
| RU | 9.525 | 3.56 | 5.70 |
| ZA | 9.525 | 1.91 | 4.10 |
| ZB | 9.525 | 2.29 | 4.50 |
| ZBS | 9.525 | 2.76 | 5.06 |
| ZAS | 9.525 | 2.32 | 4.5 |
| S8M | 8.00 | 3.05 | 5.30 |
| ZLB | 9.525 | 2.7 | 5.05 |
| RPP | 9.525 | 2.25 | 4.50 |
View more products, please click on images below:
Having specilized in mechanical conveyor systems products for more than 15 years,Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Industry Group,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.

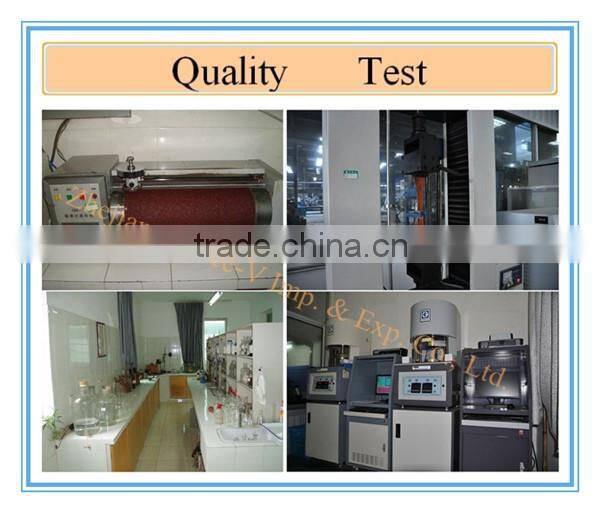

Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Rollers&Pulleys, Chains&Sprockets, Rubber Conveyor Belts, V-belts,Timing Belts,Flat Transmission Belts,Fasteners and Clamps; Elevator & Fittings,specially HDPE/Metal Bucket,Screw Flights,Crusher Machines and Fittings,ect.
Warranty period:12 months from operating.
