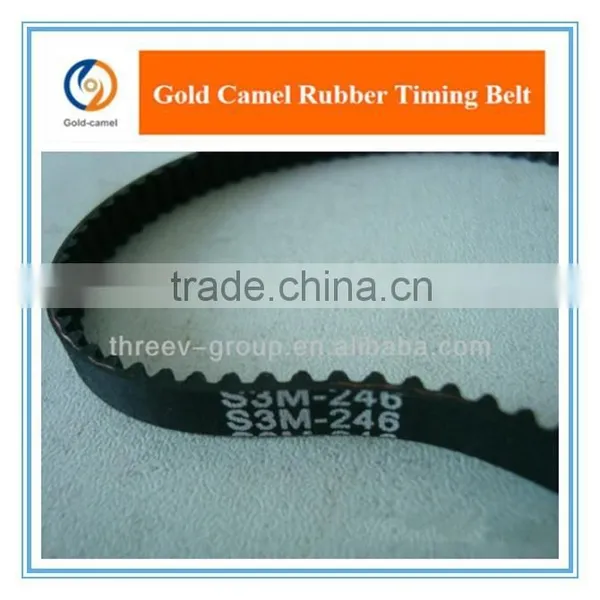

S3M Rubber Synchronous Belt
US$ 0.8 - 20
MOQ: 30 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Type:
Timing Belt
Material:
Rubber
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Type
Timing Belt
Material
Rubber
Place of Origin
Zhejiang, China
Brand Name
OEM
Model Number
S3M
S3M rubber synchronous belt
Product Description
1.Industrial timing belt:
Our timing belts are manufactured in imported neoprene rubber and PU materials.
T Type synchronous belt(mm)
| Type | Pitch | Tooth height | Belt thickness | Angle |
| MXL | 2.032 | 0.51 | 1.14 | 40 |
| XXL | 3.175 | 0.76 | 1.52 | 50 |
| XL | 5.080 | 1.27 | 2.30 | 50 |
| L | 9.525 | 1.91 | 3.60 | 40 |
| H | 2.70 | 2.29 | 4.30 | 40 |
| XH | 22.225 | 6.35 | 11.20 | 40 |
| XXH | 31.750 | 9.53 | 15.70 | 40 |
| T2.5 | 2.5 | 0.7 | 1.30 | 40 |
| T5 | 5 | 1.20 | 2.20 | 40 |
| T10 | 10 | 2.50 | 4.50 | 40 |
| T20 | 20 | 5 | 8.00 | 40 |
| A5 | 5 | 1.2 | 2.70 | 50 |
| AT10 | 10 | 2.5 | 5.00 | 50 |
| AT20 | 20 | 5 | 8.00 | 50 |
Arc tooth synchronous belt(mm)
| Gear Code | Type | Pitch | Tooth Height | Belt Thickness |
| HTD | 2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.17 | 2.4 | |
| 5M | 5 | 2.06 | 3.8 | |
| 8M | 8 | 3.36 | 6.00 | |
| 14M | 14 | 6.02 | 10.00 | |
| 20M | 20 | 8.4 | 13.20 | |
| STD | S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.20 | |
| S4.5M | 4.5 | 1.71 | 2.81 | |
| S5M | 5 | 1.91 | 3.4 | |
| S8M | 8 | 3.05 | 5.3 | |
| S14M | 14 | 5.3 | 10.2 | |
| RPP/HPPD | RP2M | 2 | 0.76 | 1.36 |
| RP3M | 3 | 1.15 | 1.9 | |
| RP5M | 5 | 1.95 | 3.5 | |
| RP8M | 8 | 3.2 | 5.5 | |
| RP14M | 14 | 6.00 | 10 |
Double Sided Timing Belt(mm)
| Type | W | T |
| D-MXL | 0.508 | 1.53 |
| D-XL | 0.508 | 3.05 |
| D-L | 0.762 | 4.56 |
| D-H | 1.372 | 5.95 |
| D-XH | 2.794 | 15.49 |
| D-XXH | 3.048 | 22.11 |
| D-T2.5 | 0.6 | 2 |
| D-T5 | 1 | 3.4 |
| D-T10 | 2 | 7 |
| D-T20 | 3 | 13 |
| D-AT10 | 2 | 7 |
| HTD.DA-3M | 0.76 | 3.1 |
| HTD.DA-5M | 1.143 | 5.26 |
| HTD.DA-8M | 1.372 | 8.17 |
| HTD.DA-14M | 2.8 | 14.84 |
| HTD.DA-S8M | 1.372 | 7.48 |

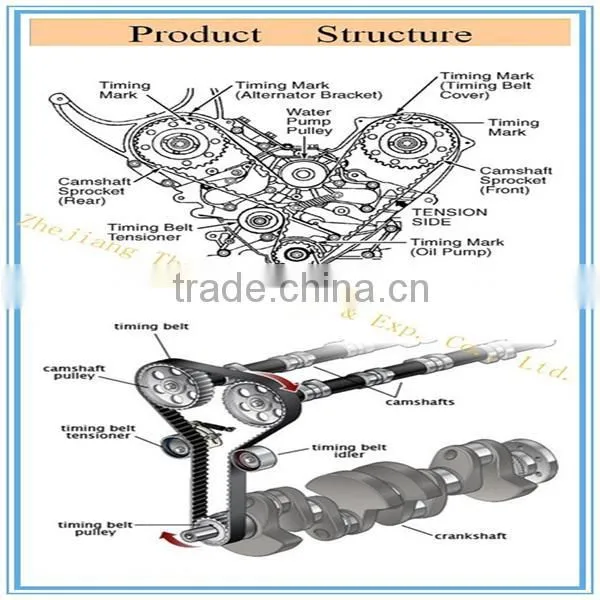

2.Automotive timing belt:
Automotive timing belt uses CR or HNBR as main rubber material, produced strictly according to technical standard.
| Type | pb | ht | hs |
| MR | 9.525 | 3.54 | 5.69 |
| MY | 8.00 | 3.06 | 5.21 |
| YU | 8.00 | 3.11 | 5.20 |
| RU | 9.525 | 3.56 | 5.70 |
| ZA | 9.525 | 1.91 | 4.10 |
| ZB | 9.525 | 2.29 | 4.50 |
| ZBS | 9.525 | 2.76 | 5.06 |
| ZAS | 9.525 | 2.32 | 4.50 |
| S8M | 8.00 | 3.05 | 5.30 |
| ZLB | 9.525 | 2.70 | 5.05 |
| RPP | 9.525 | 2.25 | 4.50 |
