Copper Clad Aluminum Enameled Wire

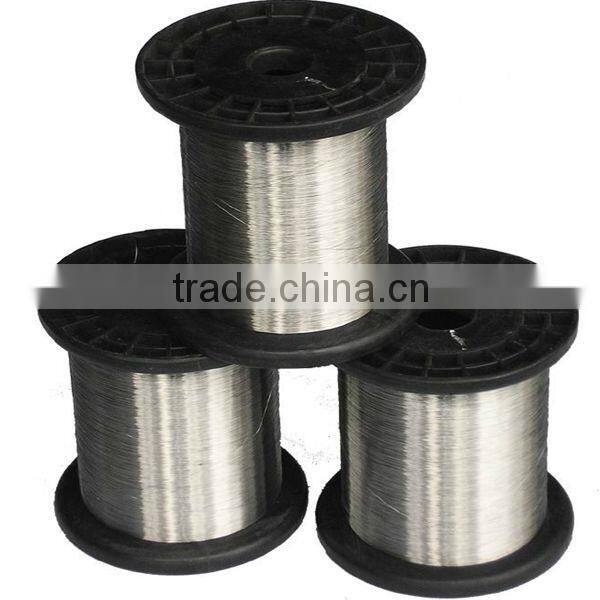

Copper Clad Aluminum Enameled Wire photo-1
US$ 5,500 - 6,000 MOQ: 200 Rolls
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Keaohua
Model Number:
KAHNICR1
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name Keaohua
Model Number KAHNICR1
Application Electrical Heating
Shape Wire
Material Nickel-Chrome
Dimensions 0.1-3mm
Chemical Composition Nickel-Chrome

 Enameled  Wire




Introduction:

 The Nickel-Chrome and Nickel-Chrome-Iron alloy wires are widely used as the high resistance alloy for electrical heating and wire-wound resistors in metallurgical industry,chemical industry and electrical industry, etc.



Feature:

This alloy wire has higher electrical resistance coefficient, good anti-oxidation and anti-corrosion performance, and it also has good mechanical workability and weldability, with a high strength at high temperature. Main characteristics of Ni-Cr and Ni-Cr-Fe electric heating alloys



  Specification:



          Type







Performance



Cr20Ni80

Cr30Ni70

Cr15Ni60

Cr20Ni35

Cr20Ni30

Cr25Ni20

Main
Chemical
composition



Ni

Rest

Rest

55.0-61.0

34.0-37.0

30.0-34.0

19.0-22.0

Cr

20.0-23.0

28.0-31.0

15.0-18.0

18.0-21.0

18.0-21.0

24.0-26.0

Fe

≤1.0

≤1.0

Rest

Rest

Rest

Rest

Max. continuous service temp. of element (ºC)

1200

1250

1150

1100

1100

1050

Resistivity at 20°C(μΩ·m)

1.09±0.05

1.18±0.05

1.12±0.05

1.0±0.05

1.04±0.05

0.95±0.05

Density (g/cm3)

8.40

8.10

8.20

7.90

7.90

7.15

Thermal conductivity
(KJ/m·h·ºC)

60.3

45.2

45.2

43.8

43.8

43.8

Coefficient of lines expansion
 (α×10-6/ºC)

18.0

17.0

17.0

19.0

19.0

19.0

Melting point (approx.)( ºC)

1400

1380

1390

1390

1390

1400

Elongation at rupture (%)

>20

>20

>20

>20

>20

>20

Micrographic structure

austenite

austenite

austenite

austenite

austenite

austenite

Magnetic properties

nonmagnetic

nonmagnetic

nonmagnetic

Weak magnetic

Weak magnetic

Weak magnetic

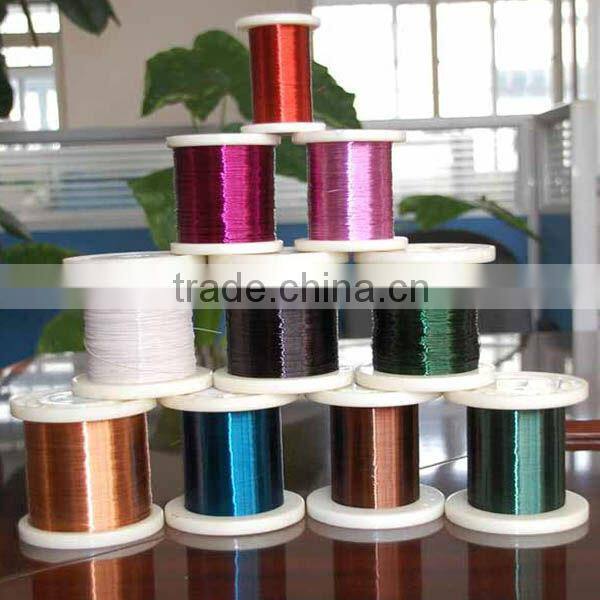

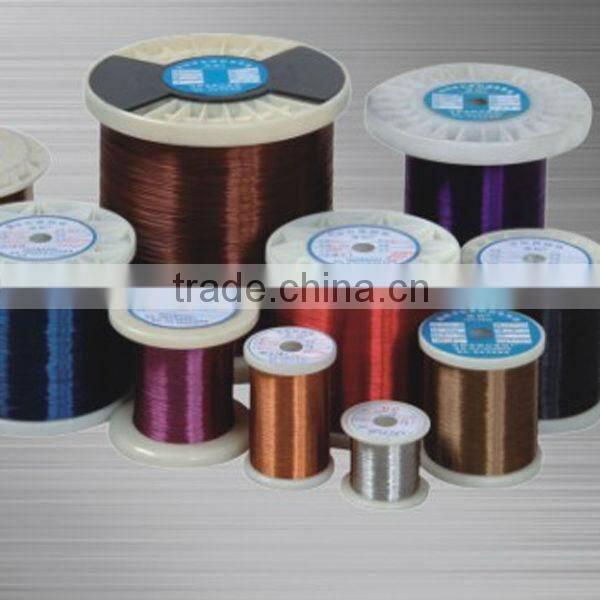

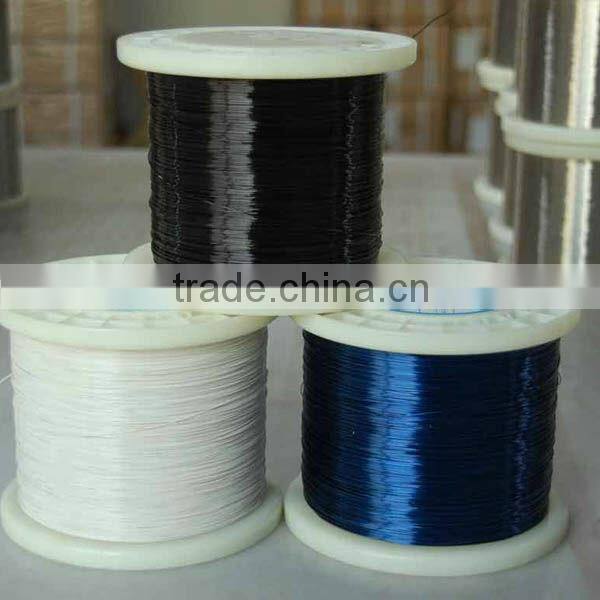

Copper Clad Aluminum Enameled Wire
