Home > Industrial Equipment & Components > Conveyor & Parts > Conveyor Belt > Pipe Rubber Conveyor Belting for Industry

Pipe Rubber Conveyor Belting for Industry

Name: Pipe Rubber Conveyor Belting for Industry
Brand: Gold Camel
SKU: 103851977

Pipe Rubber Conveyor Belting for Industry thumbnail-1

Pipe Rubber Conveyor Belting for Industry photo-1

US$ 3 - 25 MOQ: 30 Meters

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Gold Camel

Model Number:

EP80-400

Contact Supplier Request Quote Chat Now

Zhejiang Three-V Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Gold Camel

Model Number EP80-400

Pipe rubber conveyor belting for industry

Product Description

Pipe conveyor belt is new type of conveying belt which uses belt carcasses(EP fabric,Steel cord and etc)asskeleton,high elastic, high anti-abrasive and high strength rubber as working surface. They are mainly used in conveying powdery and granular materials and etc, that are pollutive to the environment. When working, the rubber belt changes its form from flat to U shape and finally to pipe shape,foIding the materials and realizing the process of enclosed conveying.

Main characteristics of the belt

1.Enclosed conveying of matcrials,protecting both the materials and the environment.

2.Steep angledconveting.The convcying anglecan reach 30degress usully.

3.Conveying line can be arranged according to the curve of space.

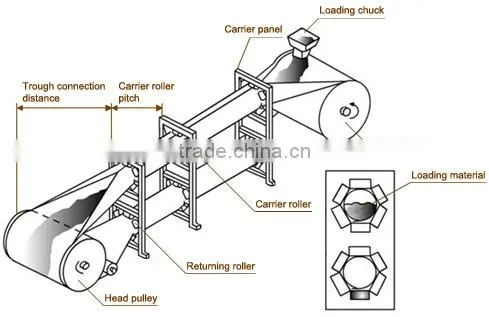

lllustration diagram

The minimum roller diameter of recommended output unit

Canvas model	2	3	4	5
Roller diameter (mm)
Number of adhesive tape layer
NN-100	200	250	315	400
NN-200	250	315	400	500
NN-250	315	400	500	630
NN-300	400	500	630	800

Basic parameters of adhesive tape

Pipe diameter mm	Width mm	Breaking strength	Number of	Fabric model	Thickness of	Total thickness
		N/mm	fabric layer		covered glue mm	mm
100	430	250	1	NN-300	3*1.5	5.2
150	600	160	2	NN-100	3*2	7.5
		315		NN-200
200	750	315	2	NN-200	3*2	7.9
		500		NN-300
		315		NN-200	5*2	9.4
		500		NN-300		8.9
250	1000	400	2	NN-250	3*2	8.6
		500		NN-300		9
		400		NN-250	5*2	10.1
		500		NN-300		10.4
300	1100	400	2	NN-250	3*2	9.1
		500		NN-300		9.5
		400		NN-250	5*2	10.6
		500		NN-300		11
350	1300	630	3	NN-250	5*2	11.9
		800	4	NN-300		12.5
400	1600	800	4	NN-250	5*2	13.1
		1000	5	NN-300		13.9

Packaging & Shipping

Packaging Detail:

wooden core cover with pp-cloth or according to the customers' needs.

Shipment

a. By express/air: small quantity order.

b. By sea: container load.

Delivery Detail:

about 20 working days from order.

Loading port

Ningbo/ Shanghai.

Company Information

Having specialized in mechanical conveyor systems products for more than 15 years,Jinhua Gold Camel Industrial Co.,Ltd has became an experienced and professional supplier in this field.In the year of 2009,to seize more progressive development,Gold Camel got combined with Zhejiang Three-V Industry Group,which is a key Conveyor System & Rubber products manufacturer of about 20 years history in China.

Our products are designed and produced under ISO9001 system and strict quality control,which covers various kinds of Conveying System and Fittings, especially Rollers&Pulleys, Chains&Sprockets, Rubber Conveyor Belts, V-belts,Timing Belts,Flat Transmission Belts,Fasteners and Clamps; Elevator & Fittings,specially HDPE/Metal Bucket,Screw Flights,Crusher Machines and Fittings,ect.

FAQ

1.Payment terms

T/T/ Western Union/ MoneyGram/ Paypal/L/C at sight/ Alipay/ D/A/ D/P: 30% in advance, balance before loading the goods. Other payment terms can be negotiated.

2.Prices

PRICE just for reference. The final prices (FOB, CIF, CNR) prices are according to order quantity, payment terms, delivery time, packaging, etc.

FAQ:

How to order your rubber belt:
Step1: Cover rubber grade,such as N17, M24 or working conditions
Step2: Dimension (mm or inch),width,top and bottom cover rubber, length
Step3: Fabric type and plies, EP or NN

Step4: Single fabric strength at breaking, such as EP100,EP125
Step5: Whether you have enquiries or questions, please feel freely to contact us

Sample:

Normally costs of samples and freight is charged. Sample costs shall be refunded to customer upon bulk orders. Samples will be shipped via express like DHL/UPS etc.. upon receipt of sample costs.
