Home > Products > Conveyor Belts > Polyester Corrugated Sidewall Conveyor Belt
Polyester Corrugated Sidewall Conveyor Belt
USD $6 - $50
/ Square Meter
100 Square Meters(Min.Order)
- 1000 Ton / Tons per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | OEM | Model Number: | T,TS,C,TCandTCS |
Product Description
Polyester corrugated sidewall conveyor belt
Product Description
Features:
Corrugated sidewall design allows for greater transport volume with increased sectional loading area, enabling a narrower conveyor design.
Reduces foot space as steep incline or vertical transport is possible with pin hooks attached belt widthwise.
No skirt board is required as transport materials spillage is prevented by high wavelike raised strips.
lncline angle can be easily adjusted with specially strongbelts and press rollers.
Flat rollers may be used to reduce the equipment cost.
Corrugated sidewall design allows for greater transport volume with increased sectional loading area, enabling a narrower conveyor design.
Reduces foot space as steep incline or vertical transport is possible with pin hooks attached belt widthwise.
No skirt board is required as transport materials spillage is prevented by high wavelike raised strips.
lncline angle can be easily adjusted with specially strongbelts and press rollers.
Flat rollers may be used to reduce the equipment cost.
Type of sidewall | N | S | ES | ||||||||||
Height of sidewall | 40 | 60 | 80 | 100 | 120 | 120 | 160 | 200 | 240 | 300 | 400 | 500 | 630 |
Type of cleat | TC | TC | TC | ||||||||||
Height of cleat | 35 | 55 | 75 | 90 | 110 | 110 | 140 | 180 | 220 | 280 | |||
Type of cleat | T | T | TS | TS | |||||||||
Height of cleat | 35 | 55 | 75 | 90 | 110 | 110 | 140 | 180 | 220 | 280 | 360 | 460 | 580 |
Type of cleat | C | C | TCS | TCS | |||||||||
Height of cleat | 35 | 55 | 75 | 90 | 110 | 110 | 180 | 220 | 280 | 360 | 460 | 580 |

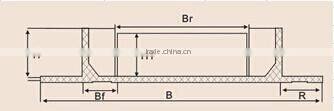

Bsse Belt Width B(mm) | Side wall Height H(mm) | Cleat height H1(mm) | BF(mm) | R(mm) | Br(mm) |
300 | 40 | 35 | 25 | 180 | 35 |
60 | 55 | 50 | 120 | 40 | |
80 | 75 | ||||
400 | 60 | 55 | 50 | 180 | 60 |
80 | 75 | ||||
100 | 90 | ||||
500 | 80 | 75 | 50 | 250 | 75 |
100 | 90 | ||||
120 | 110 | ||||
650 | 100 | 90 | 50 | 350 | 100 |
120 | 110 | ||||
160 | 140 | 75 | 300 | ||
800 | 120 | 110 | 50 | 460 | 120 |
160 | 140 | 75 | 410 | ||
200 | 180 | ||||
1000 | 160 | 140 | 75 | 550 | 150 |
200 | 280 | ||||
240 | 220 | ||||
1200 | 160 | 140 | 75 | 690 | 180 |
200 | 180 | ||||
240 | 220 | ||||
300 | 280 | 105 | 630 | ||
1400 | 200 | 180 | 75 | 830 | 210 |
240 | 220 | ||||
300 | 280 | 105 | 770 | ||
400 | 360 | ||||
1600 | 200 | 180 | 75 | 970 | 240 |
240 | 220 | ||||
300 | 280 | 75 | 910 | ||
400 | 360 | ||||
1800 | 240 | 220 | 80 | 1100 | 270 |
300 | 280 | 105 | 1050 | ||
400 | 360 | ||||
500 | 460 | 125 | 1010 |
