New design Led Downlight smd / smd 5730 Led downlight /12W Led Downlight smd
1.Specification of Led Downlight smd / smd 5730 Led downlight /12W Led Downlight smd
Input Voltage |
AC85V-265V |
Power Consumption |
12W |
| Brightness | 1020lm |
| Light sources | SMD5730 |
| RA | >80 |
| Power factory | >0.9 |
| Material | AL+PMMA+PC |
| Size(Outer diameter,Hole diameter,Hight) | 110,95,53mm |
| LED brand | Epistar |
| Color | warm white |
| Water proof | IP44 |
| Certificates | CE,RoHS |
| Warranty | 3years |
| Power | Size | Cutout | CCT | Lumen | Light Sources | LED Brand |
| 12W | D110*53mm | 95mm | 6000-6500k | 1120 | SMD5730 | Epistar |
| 4000-4500k | 1070 | |||||
| 2700-3000k | 1020 | |||||
| 15W | D145*69mm | 125-130mm | 6000-6500k | 1375 | SMD5730 | Epistar |
| 4000-4500k | 1325 | |||||
| 2700-3000k | 1275 | |||||
| 20W | D190*69mm | 165-170mm | 6000-6500k | 1800 | SMD5730 | Epistar |
| 4000-4500k | 1750 | |||||
| 2700-3000k | 1700 | |||||
| 30W | D230*99mm | 200-210mm | 6000-6500k | 2650 | SMD5730 | Epistar |
| 4000-4500k | 2600 | |||||
| 2700-3000k | 2550 | |||||
| 40W | D230*99mm | 200-210mm | 6000-6500k | 3500 | SMD5730 | Epistar |
| 4000-4500k | 3450 | |||||
| 2700-3000k |
3400 |
2.Features of led downlight
Our LED downlights are the ultimate longer lasting, low energy alternative to halogen. LED lighting technology is so energy efficient that it will not be replaced by another type of lighting technology in our lifetimes - only improved upon! We stock only the highest quality LED downlights available and are happy to recommend the most suitable ones for your lighting installation. If you're looking for dimmable downlights then check out our range of LED compatible dimmer switches that work with almost all dimmable LED lights.
|

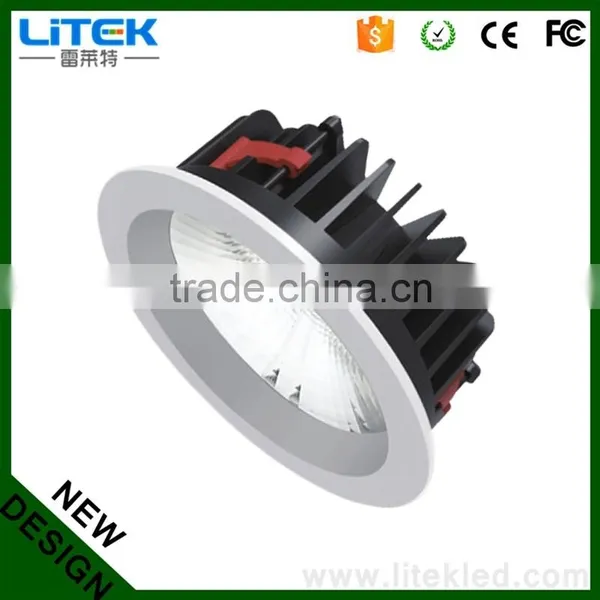

Revolutionary Design |

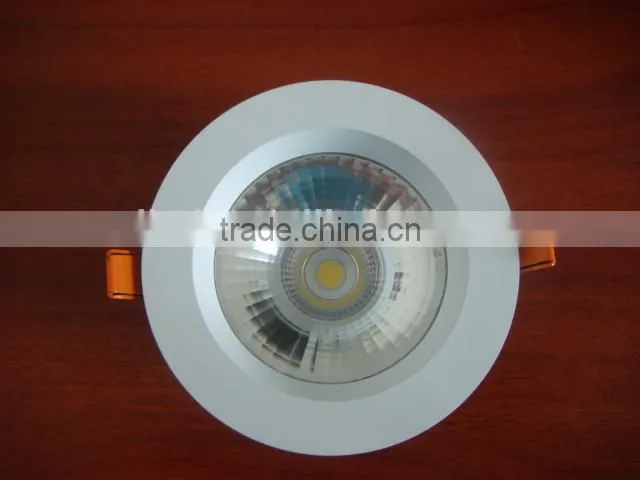

| This downlight is fitted with the latest "COB"and"SMD" LED technology, providing the highest level of light output and the best colour rendering index (quality of light). Mounted infront of the LED is a reflector cone, spreading the light evenly to eliminate bright or dark spots or a yellow halo which otherwise can appear with some LED bulbs. |
|

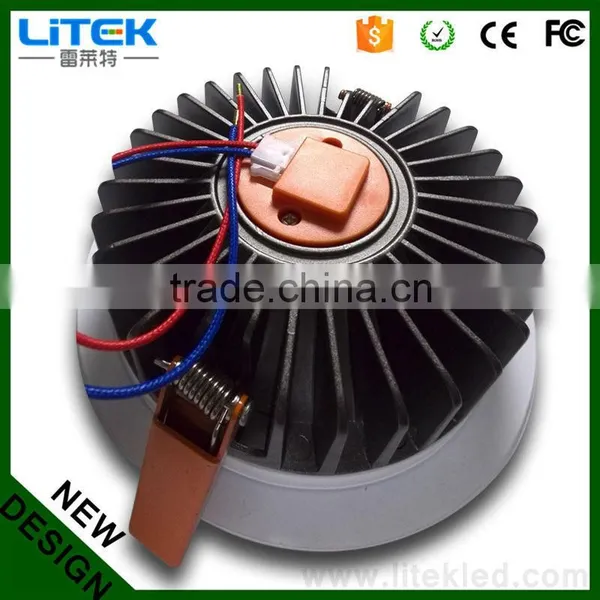

Downlight Construction |

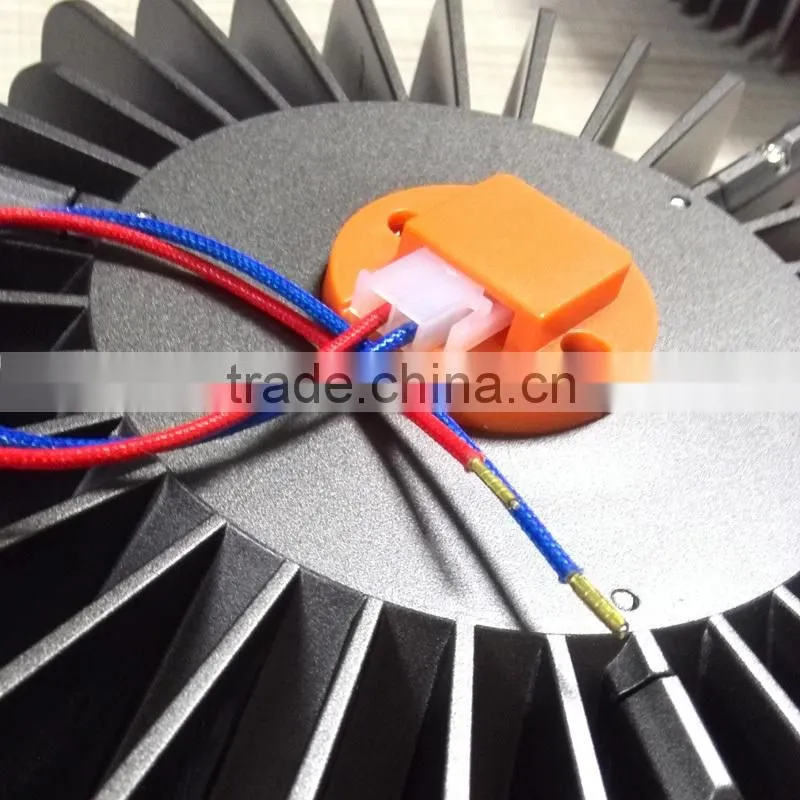

Unique design aluminium finned heat sink, providing superior heat dissipation by conduction and convection. This keeps the LED at the optimal operating temperature, ensuring it's life isn't cut short. |
|
|

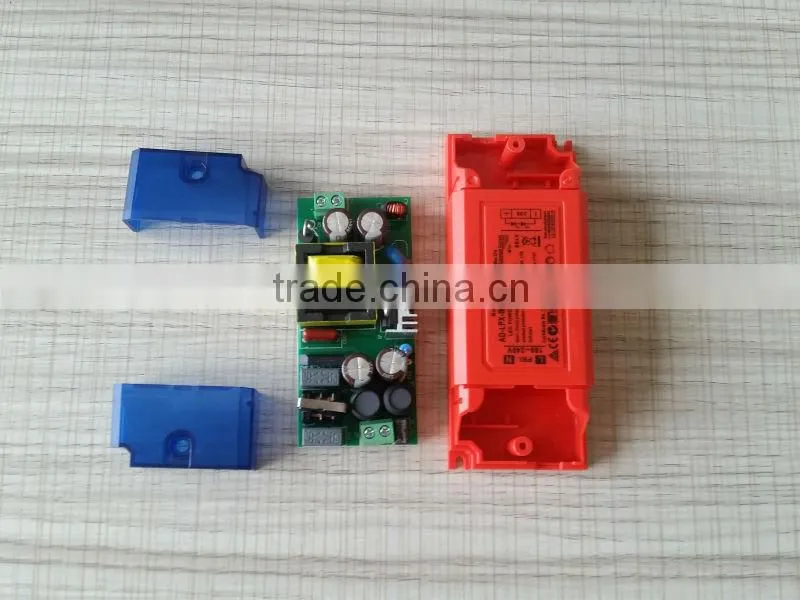

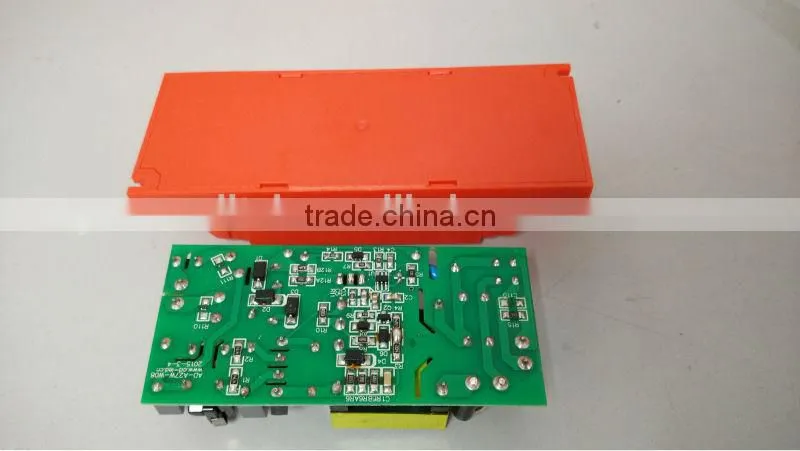

LED Driver |
|
Our led driver overcomes health and LED flicker problems. The led driver incorporates an advanced design to achieve up to 88% efficiency and combines this with high quality components to offer extended driver life. It uses active power factor control to optimise PFC > 0.9 at full load, whilst full galvanic isolation ensures it meets double insulation requirements. |

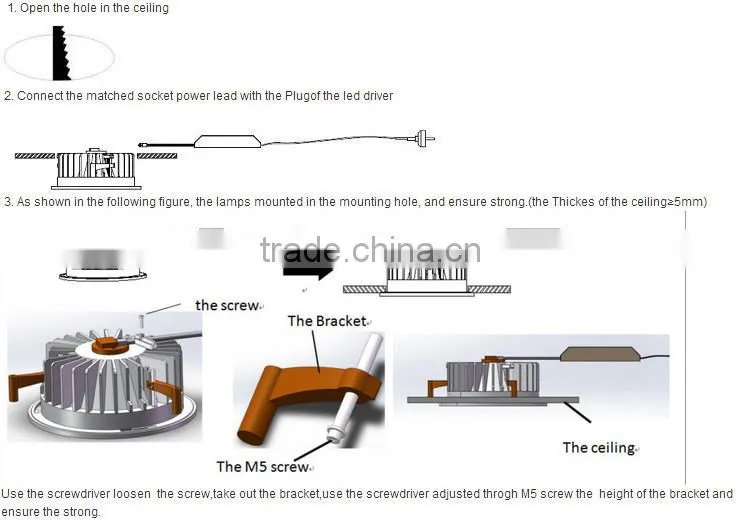

3.Installation of Led Downlight smd / smd 5730 Led downlight /12W Led Downlight smd
Downlights (or down lights) are a modern and elegant lighting option which complement the décor of any room; recess mounted into the ceiling, they offer a discrete alternative to the traditional lamp shade or light fixture.

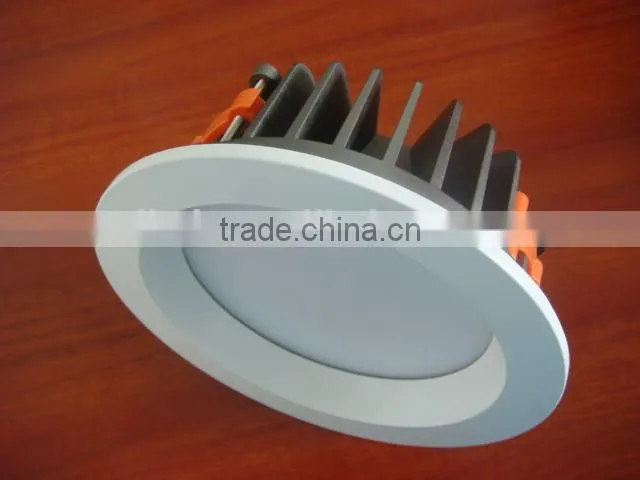

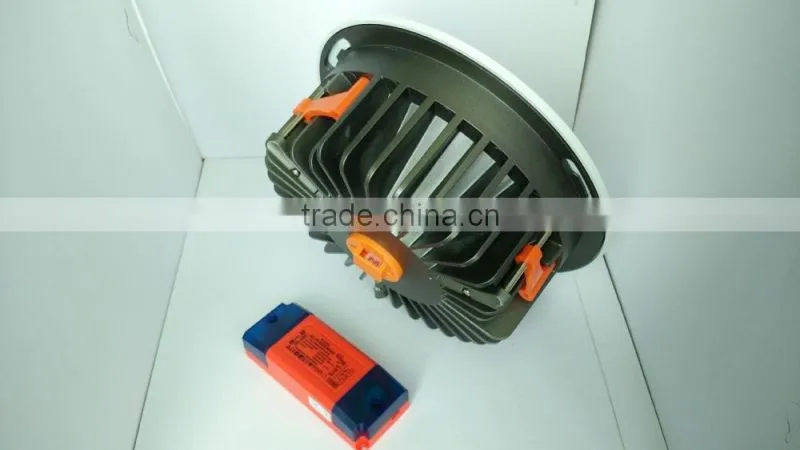

Photo show
The led driver is ideal for all types of LED lighting products that need to operate with conventional mains circuits, including applications such as LED replacements and LED downlighters.
The led driver range of high performance LED drivers are the lighting industry’s perfect solution for powering high brightness LEDs and LED arrays from a mains supply.
Application of led downlight
1)Commercial Lighting,Restaurants & Hotels, Shopping malls
2)Office Lighting, Retail & Grocery Stores, Showrooms, Airports
3)Warehouse Lighting,Galleries, Hospitals, Warehouses
4)Supermarket Lighting,insititution buildings.
Quality is our culture!
Shenzhen Litekled Technology Co. , Ltd.is a professional enterprise that focuses on research ,produce, and sale LED lighting products. Our services focus on LED tube light, LED panel light, LED down light, LED bulbs, LED strip light , LED bar light and LED flood lights.
Equipped with a batch of experienced production staffs, professional production management and strict quality control system and high-efficiency management system, Litek have accumulated the core technology and rich manufacturing experience in the driving power and structural design.
Because of our high quality productions and service, continuous improvement and innovation, our products sell well globally. Litek people actively perform of corporate social responsibility and adhere to the core strategy of sustainable development. We are pushing lighting products into energy-saving long-term, economy applicable transformation. Litek always welcome your alliance and cooperation!
1.What is an LED Downlight?
The LED downlight is an energy saving light bulb option which uses a light-emitting diode (LED) as the source of light and is usually fitted or housed directly into a recess or ceiling producing light in a downward fashion. It is designed to replace the old Halogen (35w or 50w) or florescent bulbs, uses considerably less energy than traditional bulbs (between 20% - 85% less) and usually comes with a built in driver.
2.What are the main uses of an LED Down light?
LED downlights are often used in kitchen, living room and bathroom areas and are recessed for a clean, contemporary finish, giving an even light without shadow. Housed directly into the ceiling, most LED downlights are fixed in position however adjustable fittings are available on the market.
3.What are the colour choices available for LED Downlights?
Unlike the traditional incandescent or halogen bulbs, our LED downlights usually come in a choice of three colours; warm white, pure white or cool white. Warm white is often recommended for residential properties as it gives a similar warm glow as the old incandescent bulb whilst cool white is usually the choice in commercial buildings. The colour of the light emitted is a personal preference and some customers favour the daylight effect of the pure white option. In all three cases, the LED gives instant light as soon as it is turned on, without the warming up effect needed for low energy florescent bulbs.
4.Why are you buying an LED Downlight?
Before you buy an LED bulb, consider what purpose you are buying it for. The questions to ask yourself are: What kind of light do I prefer? How wide do I want the beam? What shape or size cut out do I need? Frosted or clear glass? How long do I want it to last? If it is replacing a halogen bulb what wattage do I want and do I need a dimmable option? Does my bulb need a transformer? Should I call an electrician? In most cases fitting a LED Downlight is straightforward, however, read our useful guide for further guidance.
5.Is the LED Downlight a good quality bulb?
As with many electrical items on the market, the choice and quality is vast and the same is found with LED downlights. The range of quality available is huge , Shenzhen Litekled Technology Co. , Ltd.
have a range of quality choices to our customers but we recommend that you buy the best quality option you can afford, giving you peace of mind, convenience and longevity of the bulb.
6.Is there a warranty on the LED Downlight?
At Shenzhen Litekled Technology Co. , Ltd., we pride ourselves on our excellent range of products, customer satisfaction and service. We also allow our customer to make the choice between a cheaper bulb and a more expensive but ultimately longer lasting, better quality bulb. We offer a product warranty on our whole range from 1 to 3 years.
7.How long will the LED Downlight I purchase from Shenzhen Litekled
Technology Co. , Ltd. last?
As well as giving you huge cost savings on your energy bills, convenience and being environmentally friendly, the LED downlight will last on average 30,000 – 40,000 hours.
