DTX Series Stereo Microscopes

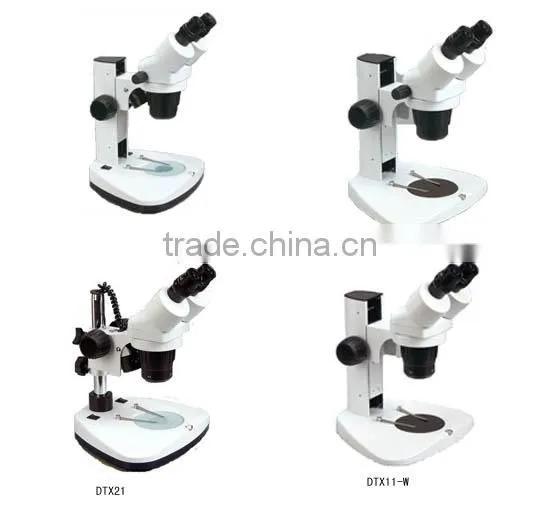

DTX Series Stereo Microscopes thumbnail-1
DTX Series Stereo Microscopes photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer, Trading Company
Year Established:
2005
Factory Size:
10,000-30,000 square meters
Contact Supplier Request Quote Chat Now
Nanjing Jiangnan Novel Optics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Specifications

microscope

DTX             Series             stereo             microscopes

Information

FEATURE

1.Sharp stereo erect image over a wide field of view
2.45°inclined and 360°rotatable binocular head with locked-in eyepiece.The left and right ocular-tube with diopter adjustment±5dp
3.Three kind of 90°1×/2×,1×/3×,2×/4×,
Two kinds of objeetive rotation for selection:DTX11 are totated by objective cover;DTX21 are rotated by knob
4.Power supply 110V/60HZ or 220V/50HZ
5.Product has CE approval
6.Iiiumination:L1.Upper reflected halogen light 12V 10W;down halogen light 12V 10W
L2.Upper reflected halogen light 12V10W
L3.Fiuorescnt tamp 5w for transmitted light and halogen lamp12v/10w for incident light
L4.Filuorescent lamp 5W for transmitted light and halogen lamp 12v/10w for incident light.Brightness is adjustable
L5.It always adopts led lights for the transmission and reflex illumination
7.Each packed in styrofoam and in an innerbox,Four sets in one canton

Specification
Model Eyepiece Objective Plate Illumination
DTX11 SWF10× 1×-2× White/back Natural illumination
DTX21 SWF10× 2×-4× Frosted glass Incident illumination

Optical Data
Objective Magnificatiom EYEPIECES
WF5× SWF10× WF15× WF20× (mm)
Magnification Field of view
(mm)
 Magnification Field of view
(mm)		 Magnification Field of view
(mm)
 Magnification Field of view
(mm)
1× 5× 20.0 10× 22.0 15× 15.0 20× 10.0 91.5
2× 10× 10.0 20× 11.0 30× 7.5 40× 6.5
1× 5× 20.0 10× 22.0 15× 15.0 20× 70.0 91.5
3× 15× 7.0 15× 7.3 45× 5.0 60× 4.3
2× 10× 10.0 20× 11.0 30× 7.5 40× 6.5 91.5
4× 20× 5.0 40× 5.5 60× 3.7 80× 3.2
